▲Support for AMD Ryzen-series processors
▲Support for DDR 4 dual-channel memory
▲Support 4 *SATA 3.0 high-speed ports
▲Support for 1 *M.2 interface
▲Supports 6 *USB3.2 and 2* USB2.0
▲Support for 1* PCIEX16 4.0 and 1 PCIEX1
▲Support 1 *gigabit network port
▲Support 5-phase power supply
▲Support WIN10 WIN11 64-bit operating system

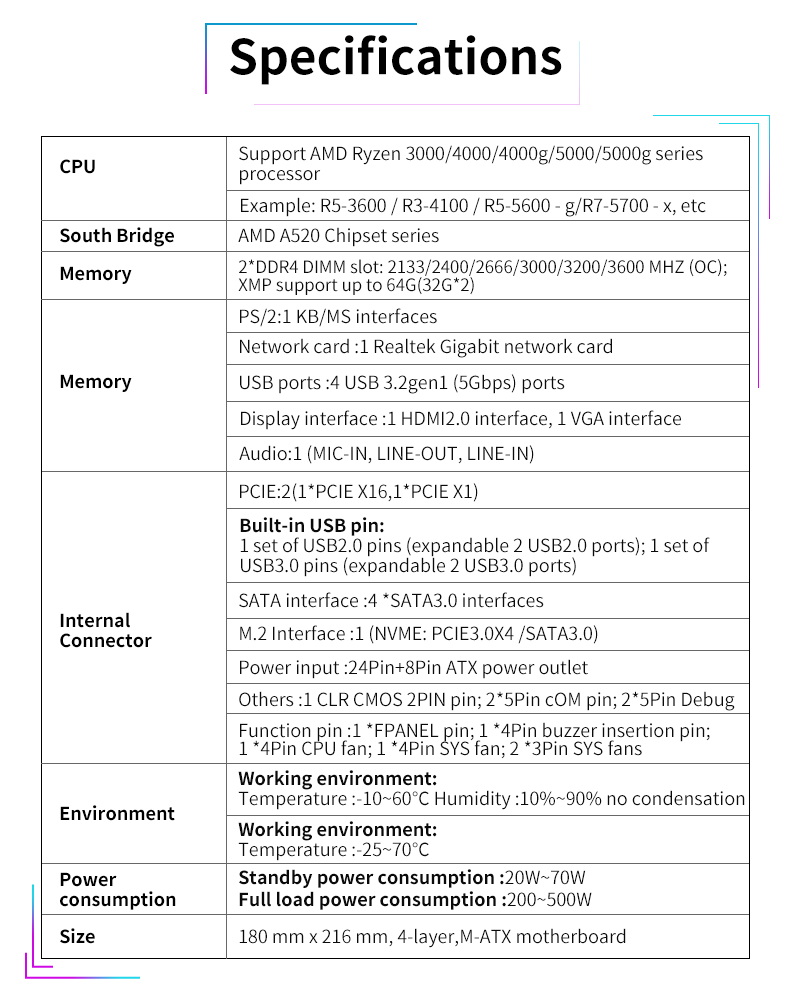

| Product Profile | ||

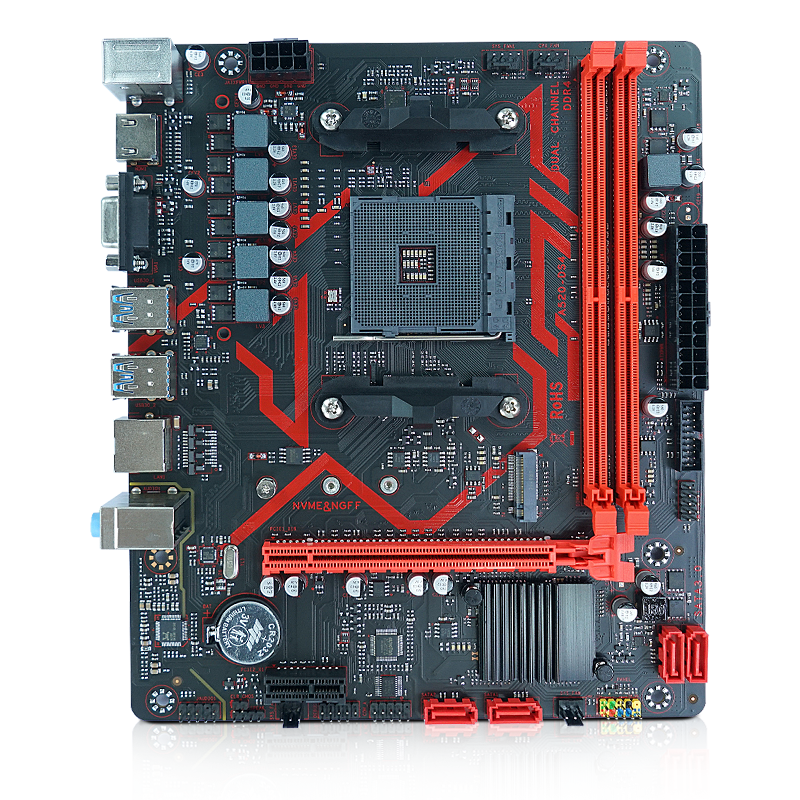

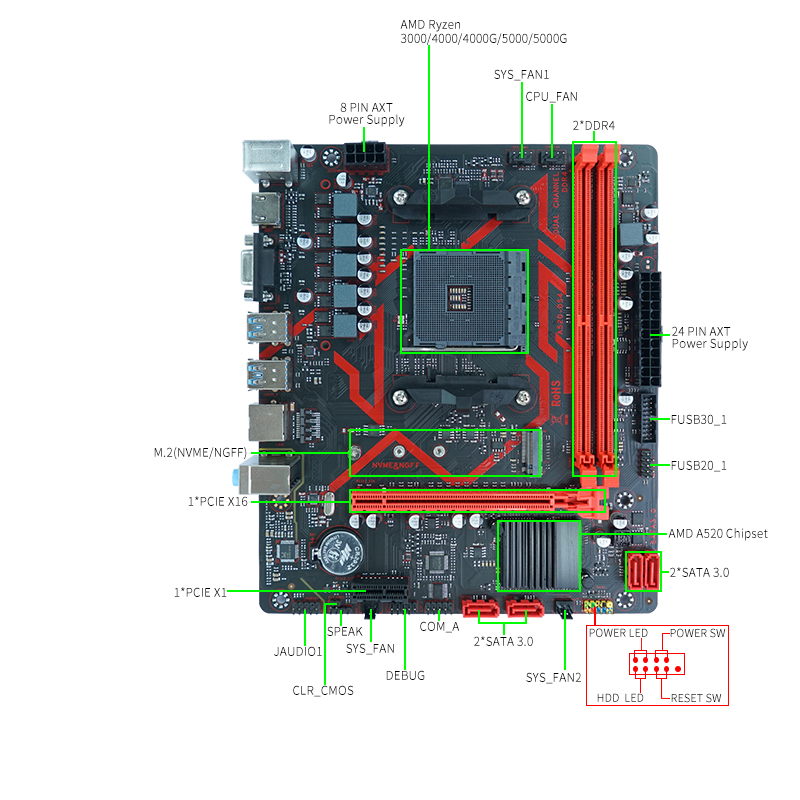

Product Name | A520 DS4 Computer Motherboard | |
| CPU | Support AMD Ryzen 5000,5000G series / 4000,4000G series / 3000,3000G series | |
Chipset | A520 | |
Internal Memory | Dual channel DDR4 2133 2400 2666 3200 (XMP supported) 2*288 PIN DDR4 64GB | |
Storage Interface | 1*NVME/NGFF M.2 | |
Display Interface | 1*VGA 1*HDMI | |
Network | 1 Realtek Gigabit Network Card | |
PCIE Solt | 2（1*PCIe X16 ，1*PCIeX1) | |
USB | 4*USB3.2 | |
Audio | 1*(Mic-in,Line-ou,Line-in) | |
Product Size | 180mm * 216mm | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
