- Supports AMD Athlon Ryzen series processors
- Supports dual-channel DDR4 memory
- Supports 4 SATA 3.0 high-speed interfaces
- Supports 1 PCIE/SATA M.2 interface
- Supports 6 USB 3.2 and 2 USB 2.0
- Supports 1 PCI-E X16 3.0 and 1 PCI-E X1
- Supports 1 Gigabit Ethernet port
- Supports 5-phase power supply
- Supports 64-bit Windows 10/11 operating systems

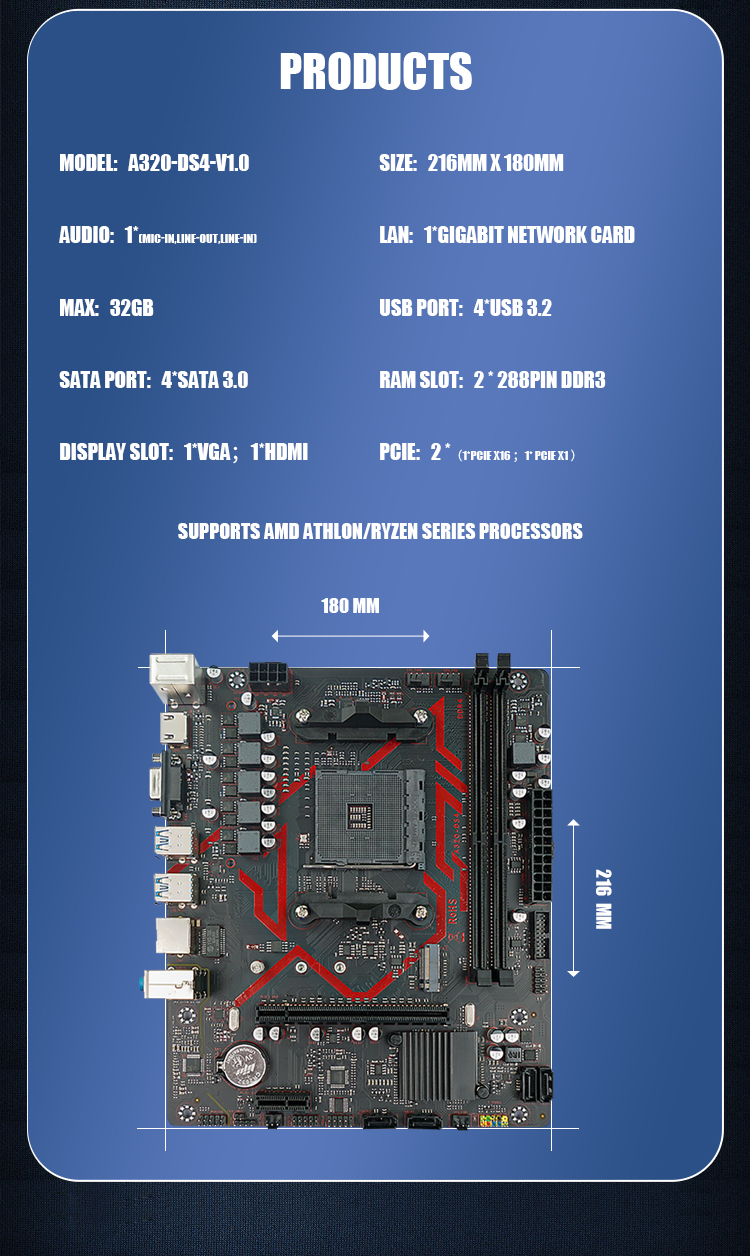

| Product Profile | ||

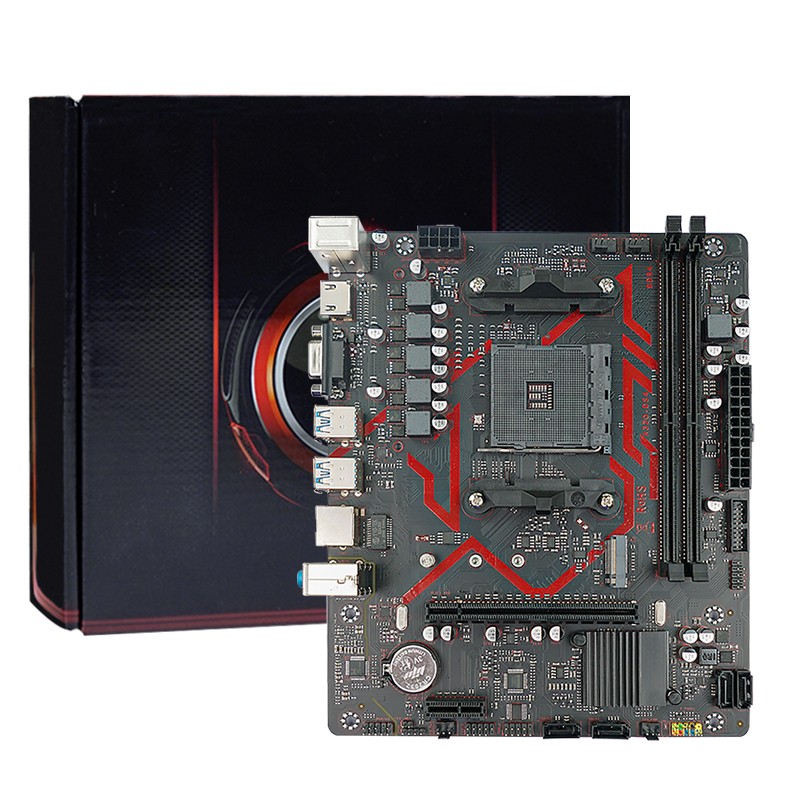

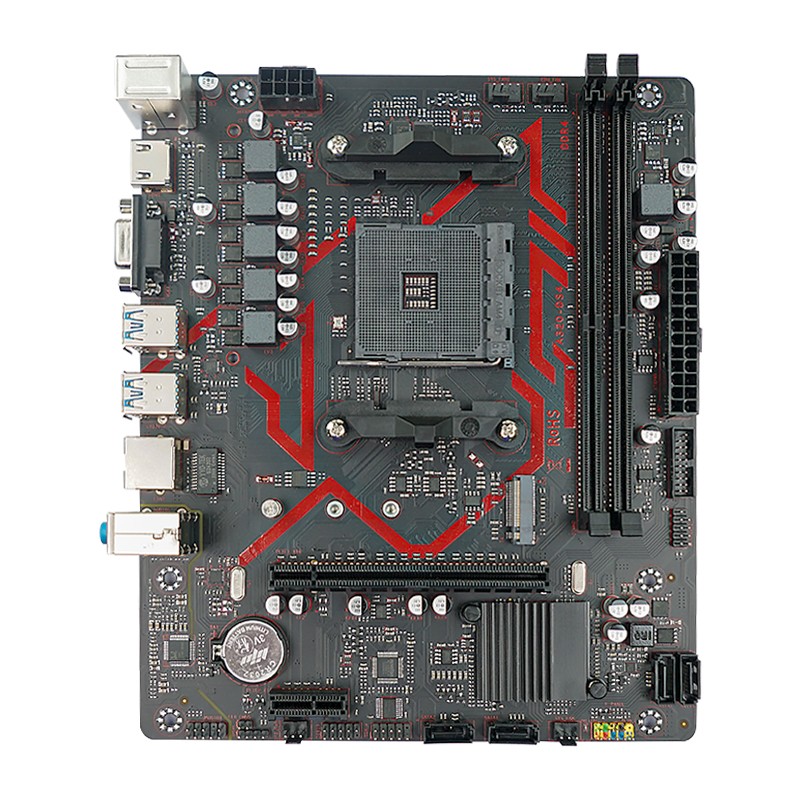

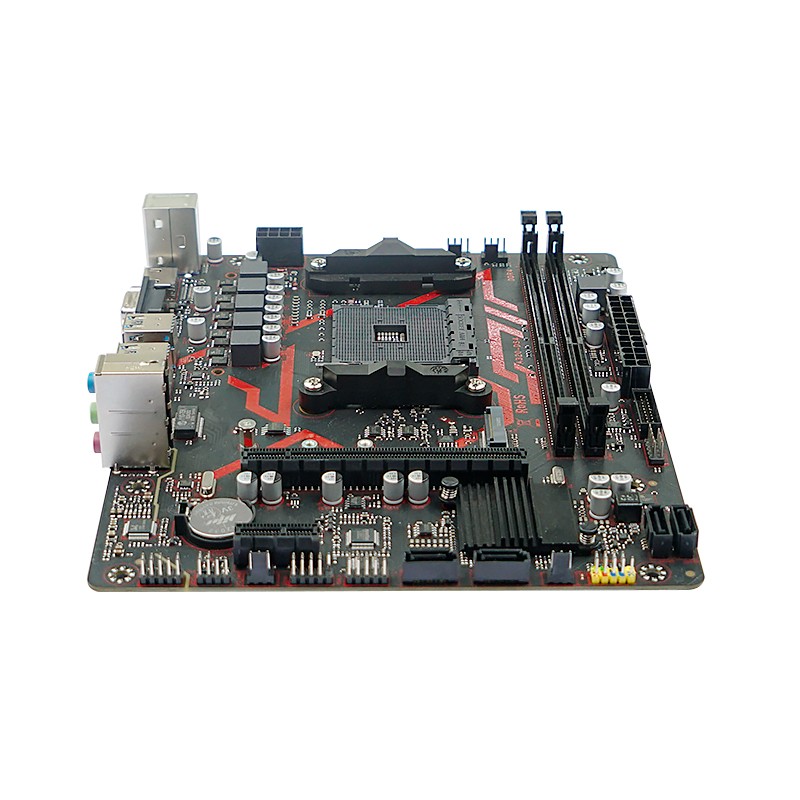

Product Name | A320 DS4 Computer Motherboard | |
| CPU | Supports AMD Athlon 2nd generation Ryzen 1st 2nd 3rd generation Ryzen 4000 Ryzen 5000 Ryzen 5000G | |
Chipset | A320 | |
Internal Memory | Dual-channel DDR4 2133/2400/2666/3200/3600 2*288 PIN 32GB | |
Storage Interface | 1*M.2 | |
Display Interface | 1*VGA 1*HDMI | |
Network | 1 Realtek Gigabit Network Card | |
PCIE Solt | 2（1*PCIe X16 ，1*PCIeX1) | |
USB | 4*USB3.2 | |
Audio | 1*(Mic-in,Line-ou,Line-in) | |
Product Size | 180mm * 216mm | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
