▲Support AMD FM2 series processors
▲Support 4 SATA ports 10 USB ports
▲Support High-speed DDR3 dual-channel memory slot 1066 1333 1600MHz maximum capacity 16G memory
▲Support 5.1 Audio channel ALC887 chip
▲Support 1 com
▲Support increasing transmission speed USB3.0 interface
▲Support PCIE expansion slot*2
▲ Support RJ45 Gigabit LAN interface
▲4-layer PCB baseboard 3-phase power supply
▲Support Win7 Win10 32/64 operating system

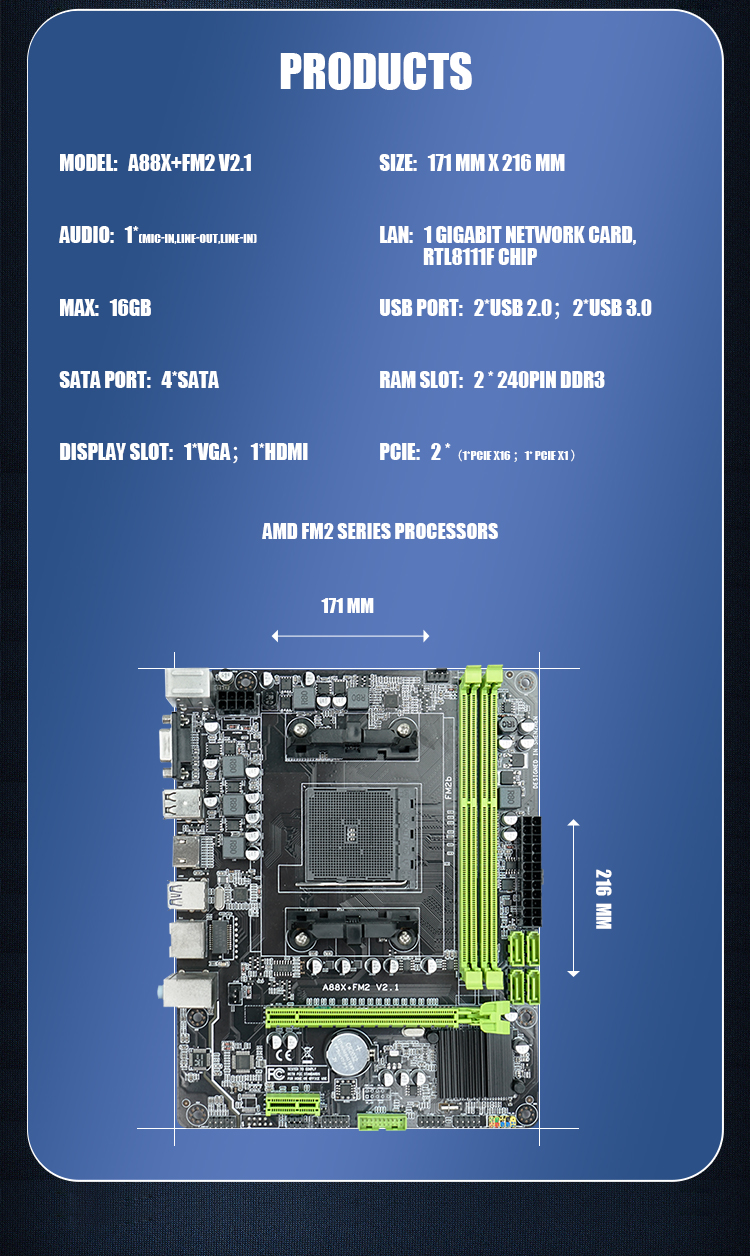

| Product Profile | ||

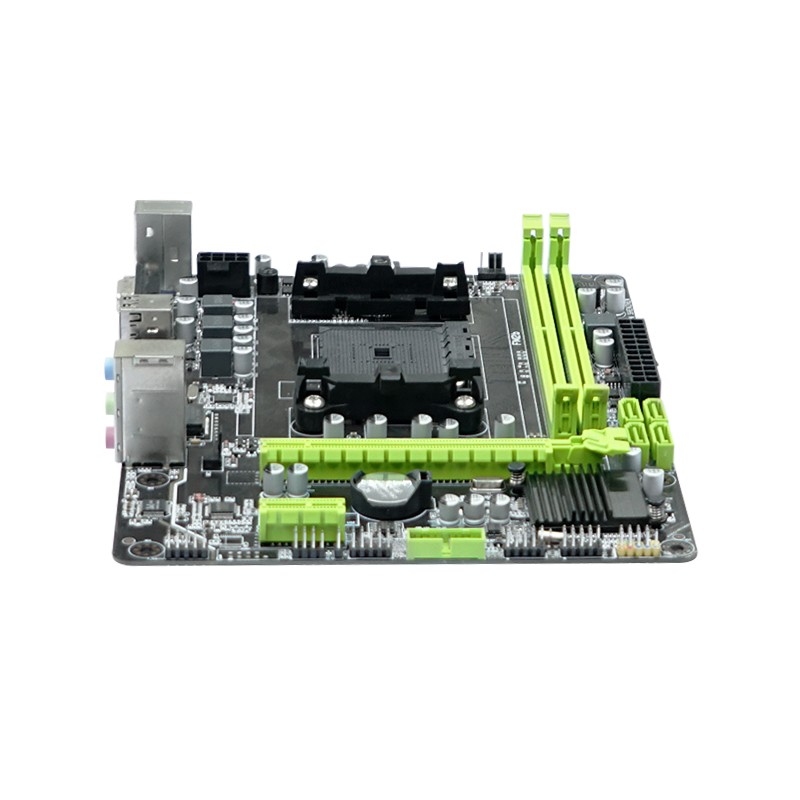

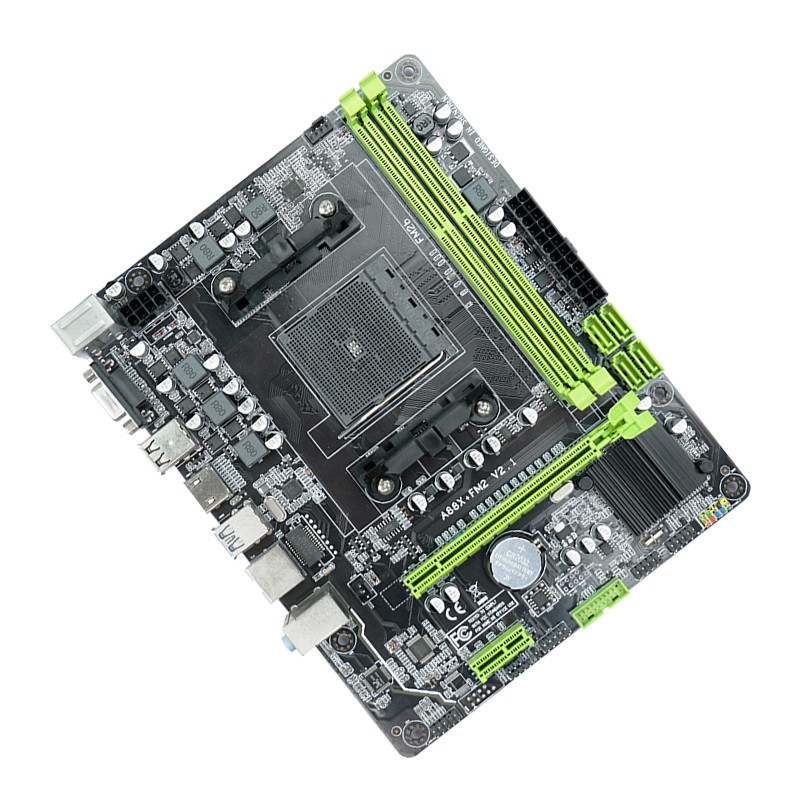

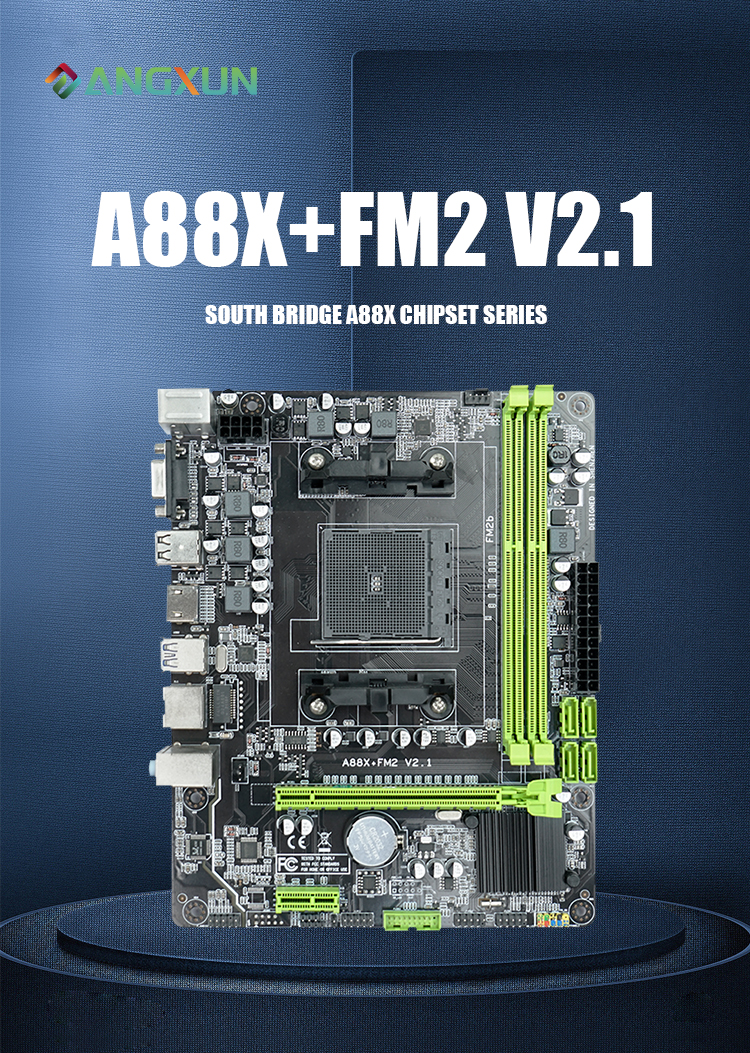

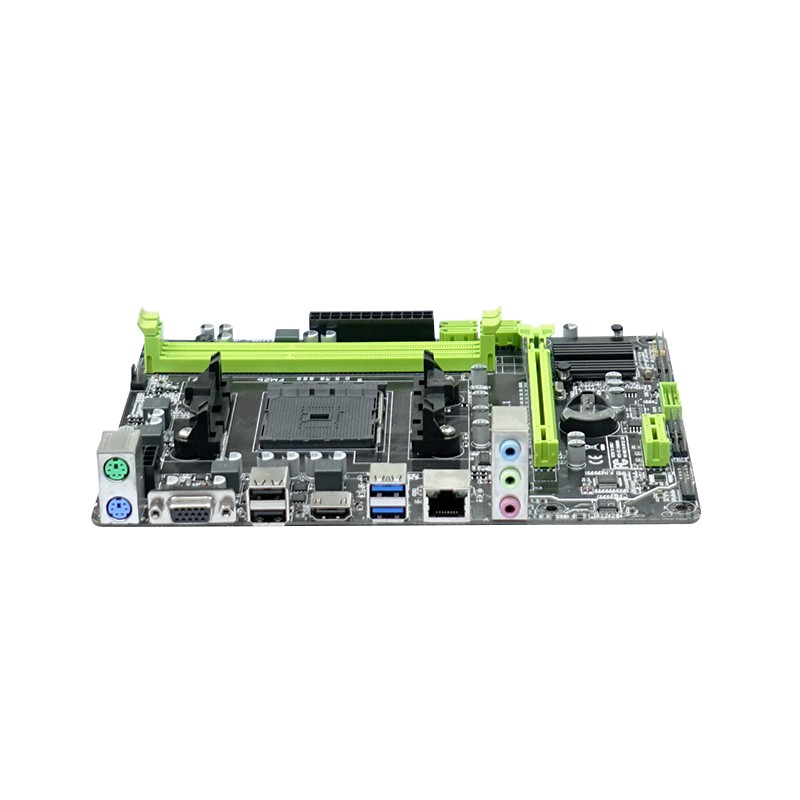

Product Name | A88X FM2 Computer Motherboard | |
| CPU | AMD FM2 Series Processor | |
Chipset | A88X | |
Internal Memory | Dual Channels DDR3 1066/1333/1600MHz | |
Interface | 1*(PS/2MS，PS/2KY) | |
Display Interface | 1*VGA 1*HDMI | |
Network | 1 Realtek Gigabit Network Card | |
PCIE Solt | 2（1*PCIe X16 ，1*PCIeX1) | |
USB | 2*USB 3.0；2*USB 2.0 | |
Audio | 1*(Mic-in,Line-ou,Line-in) | |
Product Size | 171mm * 216mm | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
