▲Supports AMD AM5 Ryzen 7000/8000/9000 series desktop processors
▲AMD B650 chipset
▲4*DDR5 DIMM
▲Maximum support 128G
▲8Pin + 24Pin ATX power supply
▲M-ATX 210*240.5mm

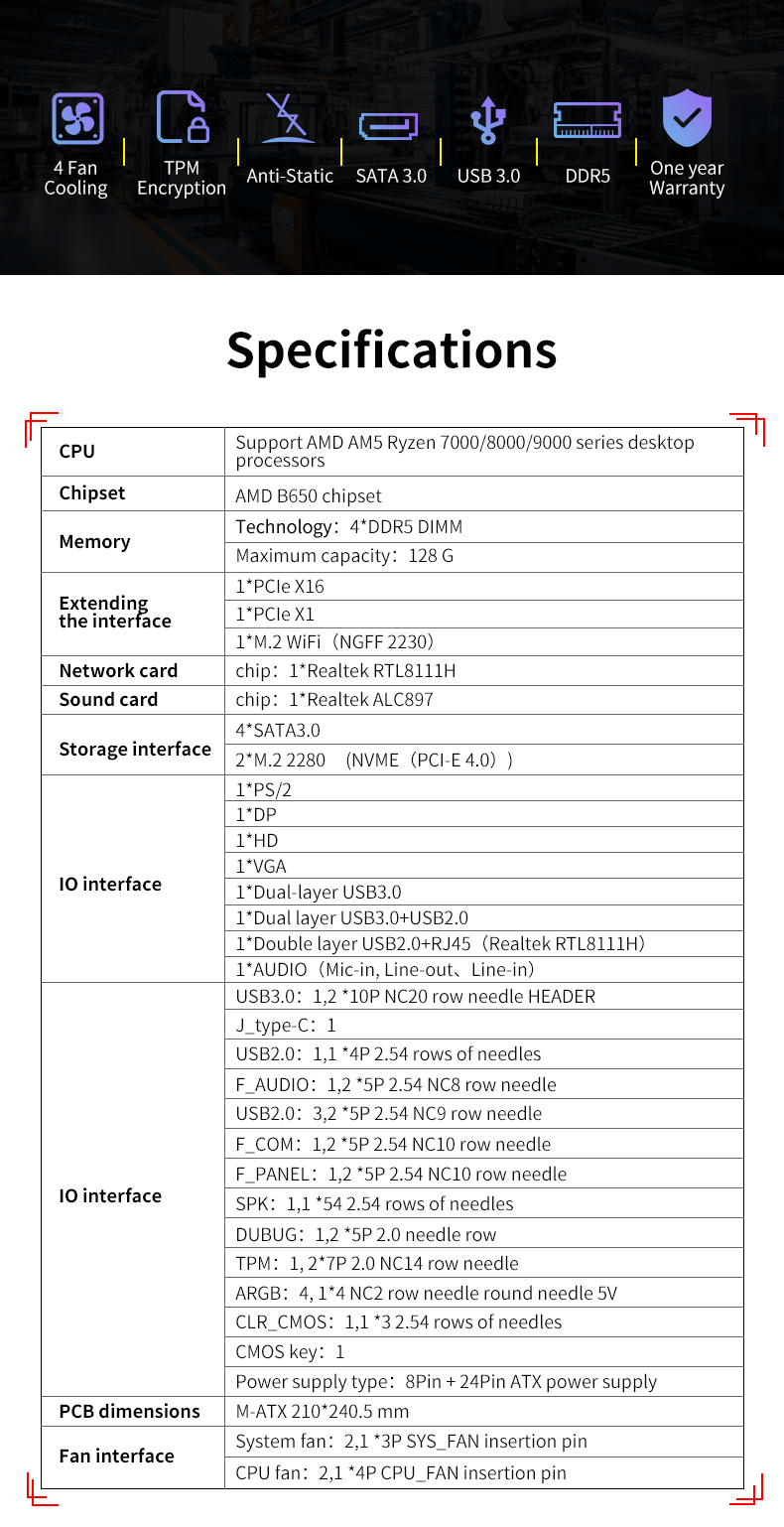

| Product Profile | ||

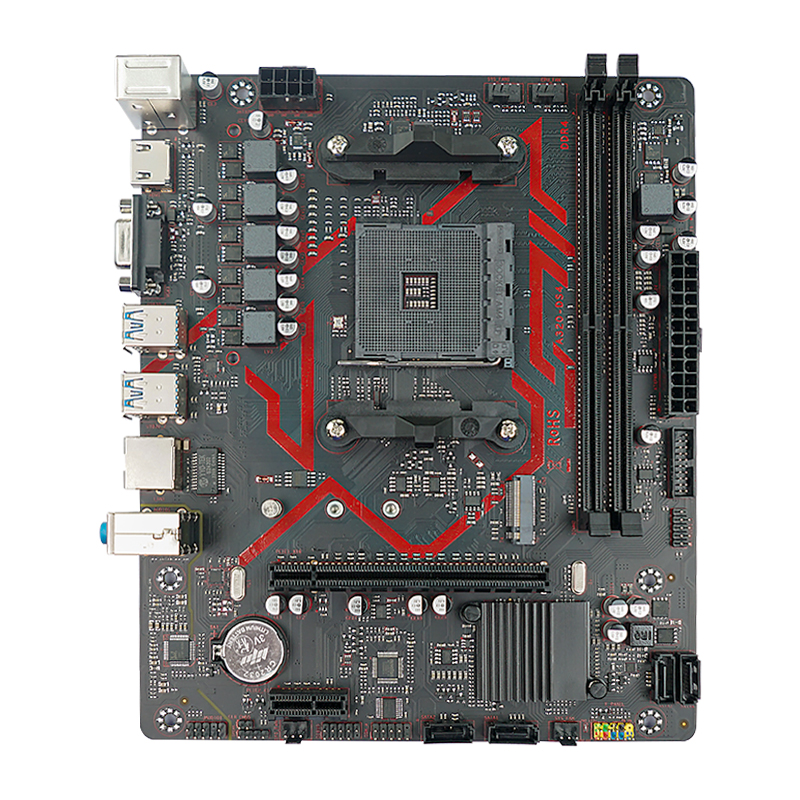

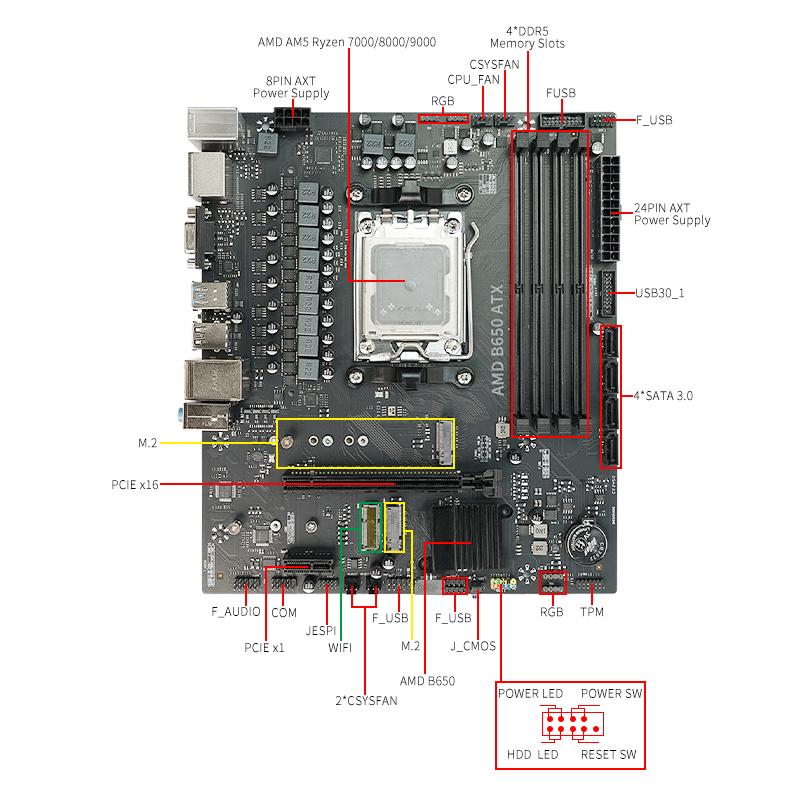

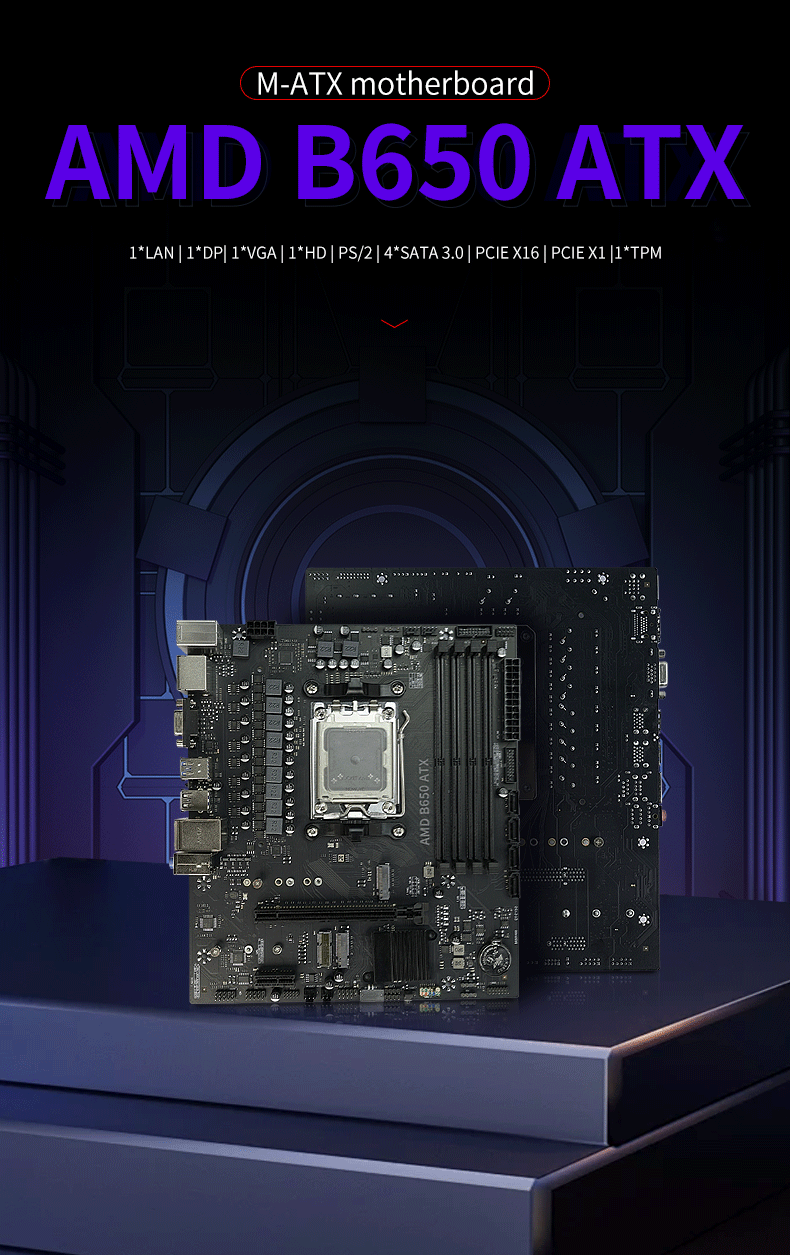

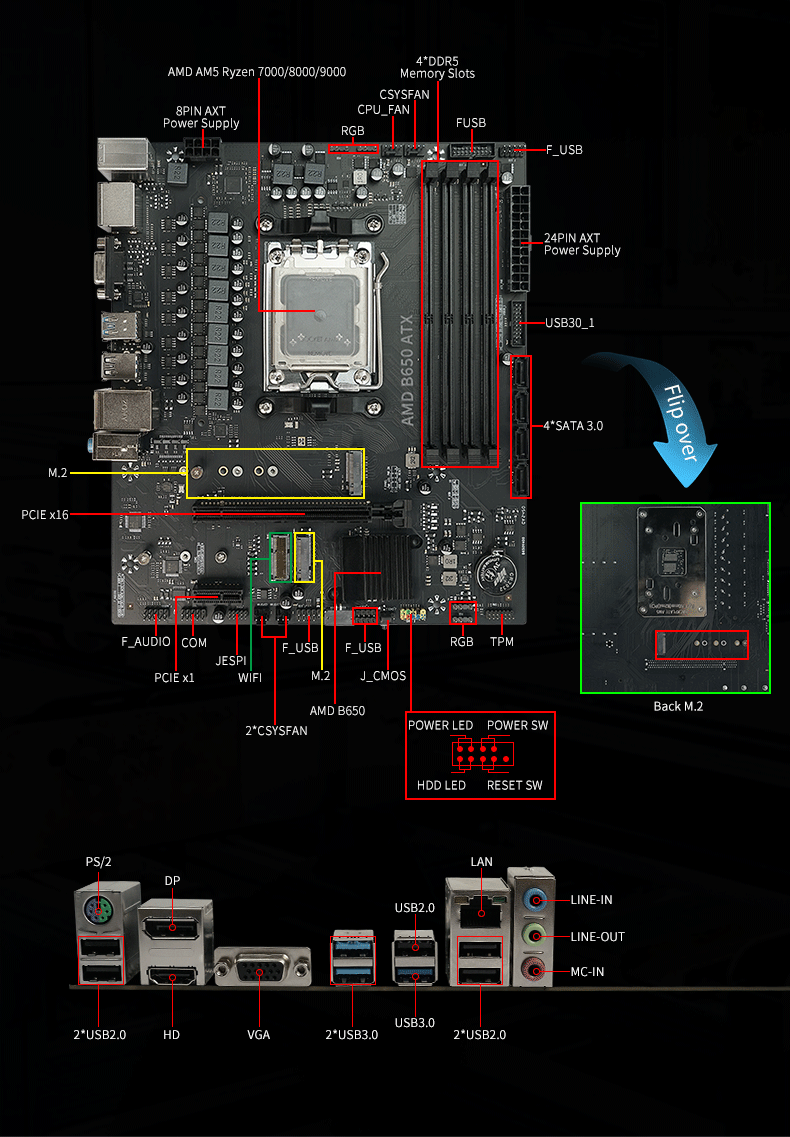

Product Name | B650 V400 Computer Motherboard | |
| CPU | Supports AMD AM5 Ryzen 7000/8000/9000 series desktop processors | |
Chipset | B650 | |
Internal Memory | 4*DDR5 DIMM Maximum support 128G | |
Storage Interface | M.2 2280 2*NVME（PCI-E 4.0） | |
Display Interface | 1*VGA 1*HDMI 1*DP | |
Network | 1 Realtek Gigabit Network Card | |
PCIE Solt | 2（1*PCIe X16 ，1*PCIeX1) | |
USB | 5* USB 2.0,3*USB3.0 | |
Audio | 1*(Mic-in,Line-ou,Line-in) | |
Product Size | 210mm * 240.5mm | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
