▲ Supports AMD AM4 platform processors
▲Supports dual-channel DDR4 memory
▲4× SATA sockets
▲1x M.2 2280/2240 slot (NVME NGFF
automatic switching)

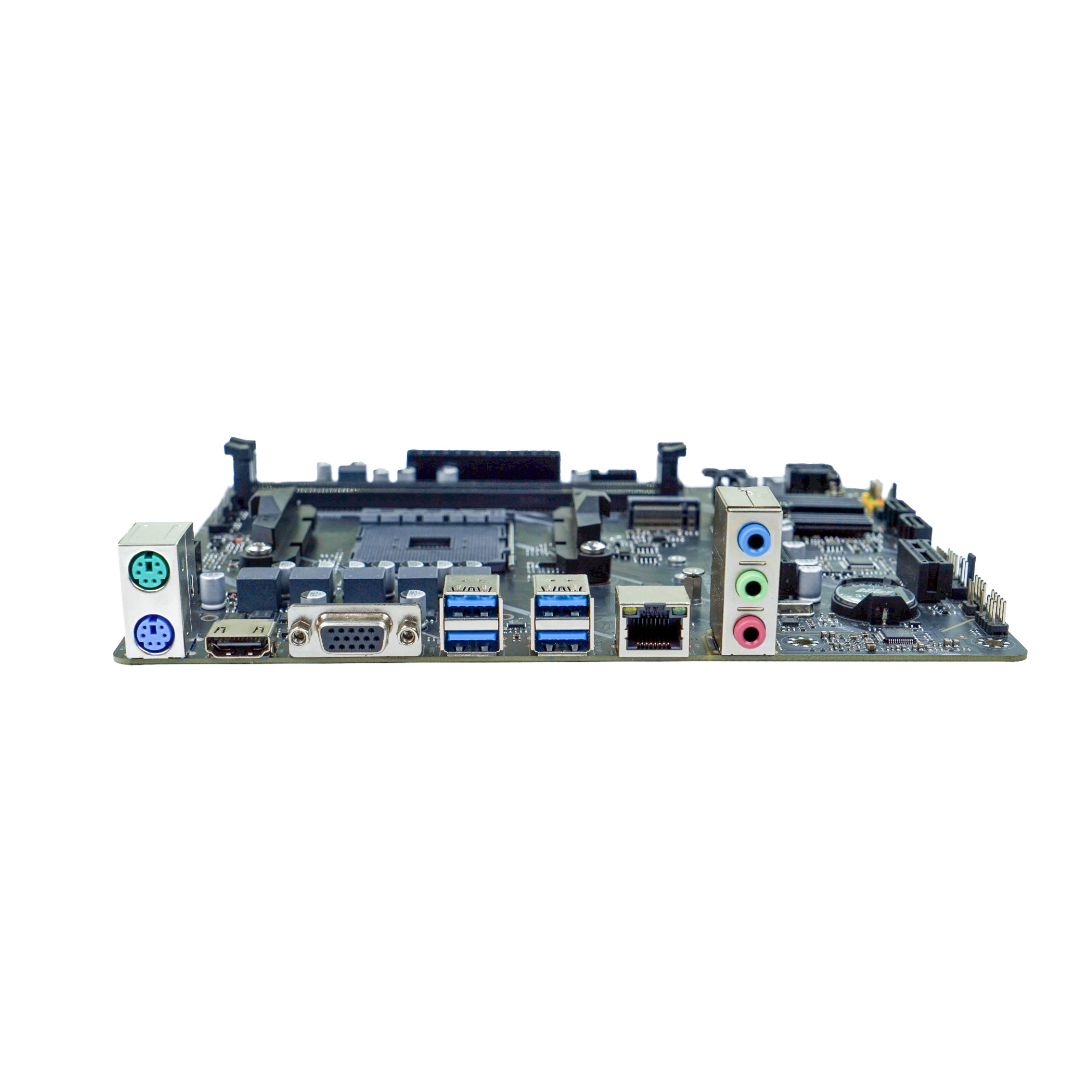

▲Rear IO provides 4 USB3.0 interfaces
▲Built-in pins can expand 2 USB2.0 and 2
USB3.0 interfaces
▲ 1 x HDMI, 1 x VGA
▲1 x PS2 keyboard and mouse
▲1 x Gigabit network card, supports PXE
and network wake-up functions
▲1 x PCIE X1 slot, 1 x PCIE X16 slot
▲ Supports 24Pin+8Pin ATX power input

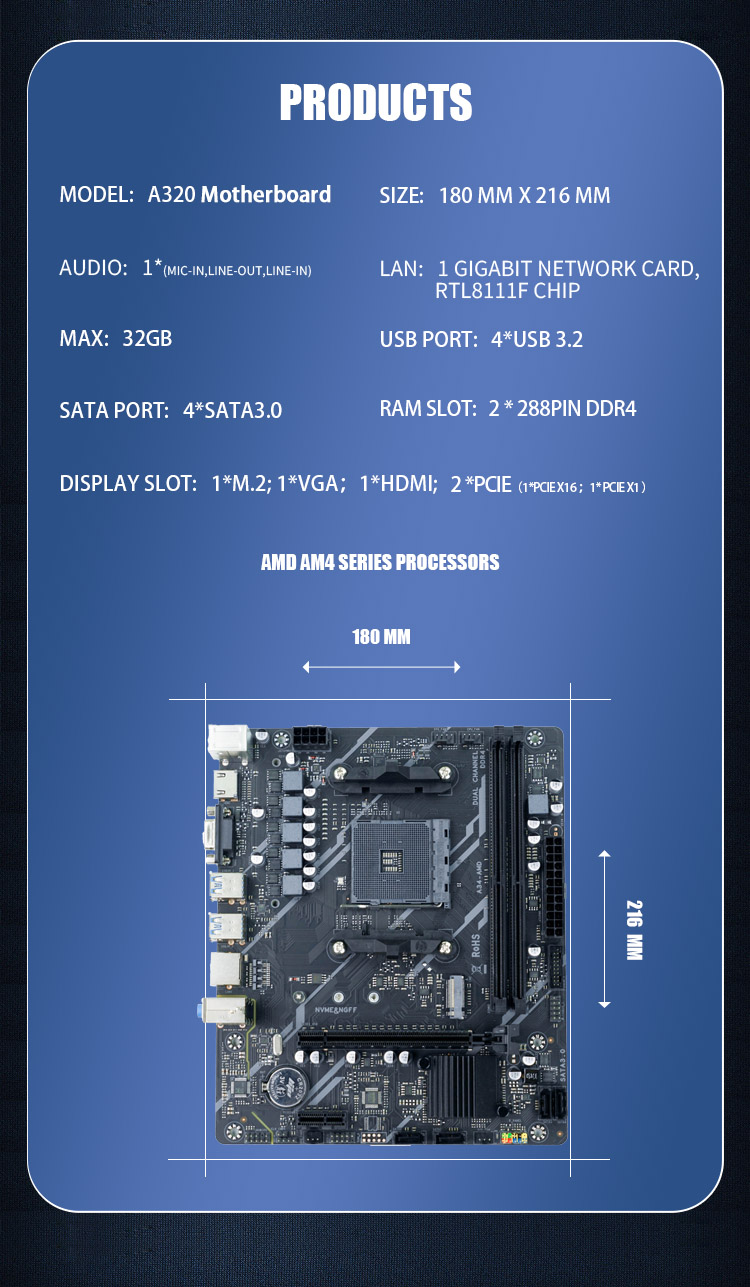

| Product Profile | ||
Product Name | A320M AMD Computer Motherboard | |
| CPU | Supports AMD AM4 Ryzen 1000 2000 3000 4000 5000 Processors And Athlon Series Processors | |
Chipset | A320 | |
Internal Memory | 2*DDR4 DIMM 2133 2400 2666MHz single slot 32GB | |
Storage Interface | 1* M.2 slot (NVME/NGFF automatic switching); 4*SATA 3.0 interface | |
Display Interface | 1*VGA 1*HDMI | |
Network | 1 Realtek Gigabit Network Card | |
PCIE Solt | 2（1*PCIe X16 ，1*PCIeX1) | |
USB | 4*USB3.0 | |
Audio | 1*(Mic-in,Line-ou,Line-in) | |
Product Size | 180mm * 216mm 4L | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
