▲Supports 6th, 7th, 8th, and 9th generation
Intel processors(Supports Celeron, Core I3, I5, and I7 series)
▲Supports dual-channel SO-DIMM DDR3
memory
▲1× M.2 WIFI slot
▲1 M.2 slot (supports NGFF/NVME mode)

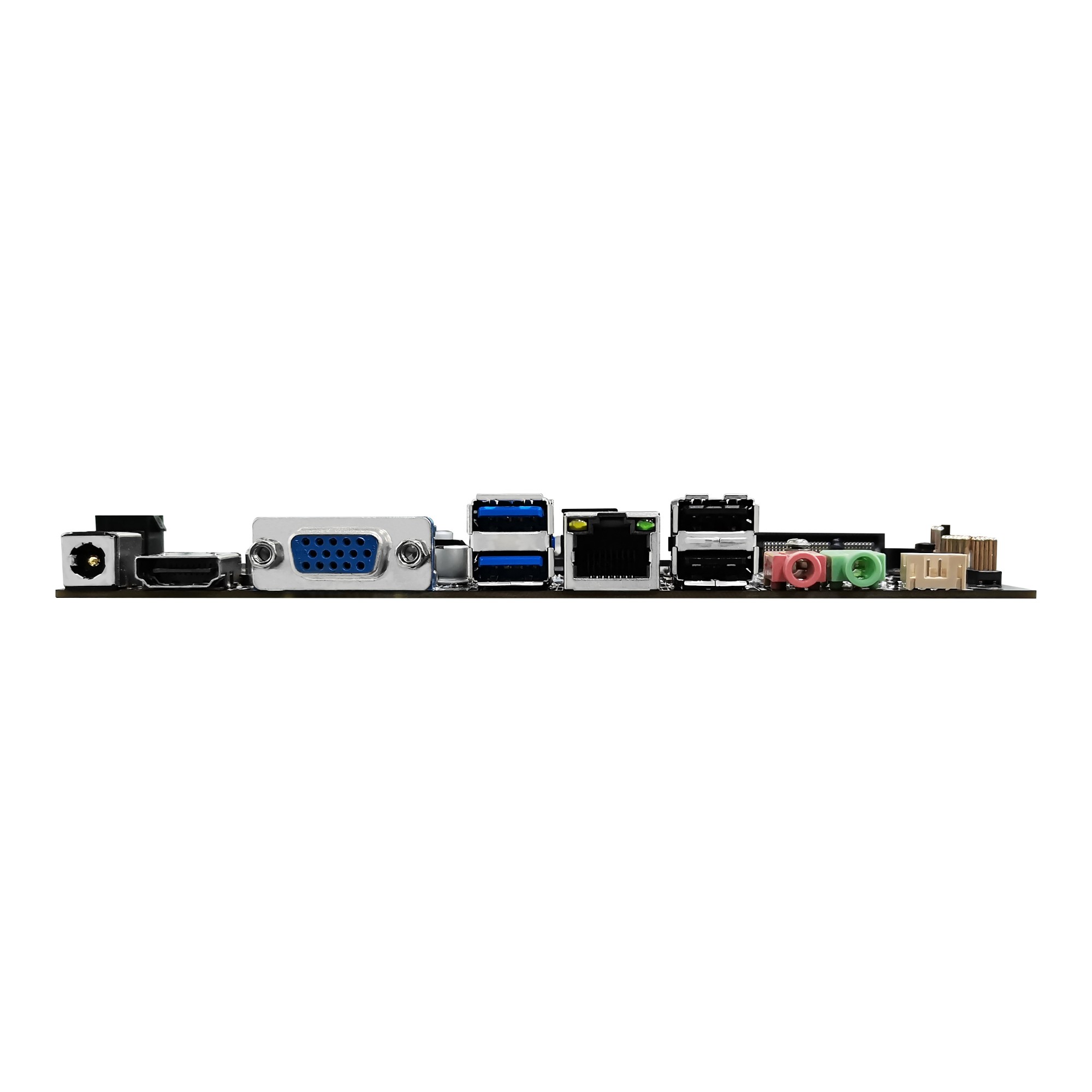

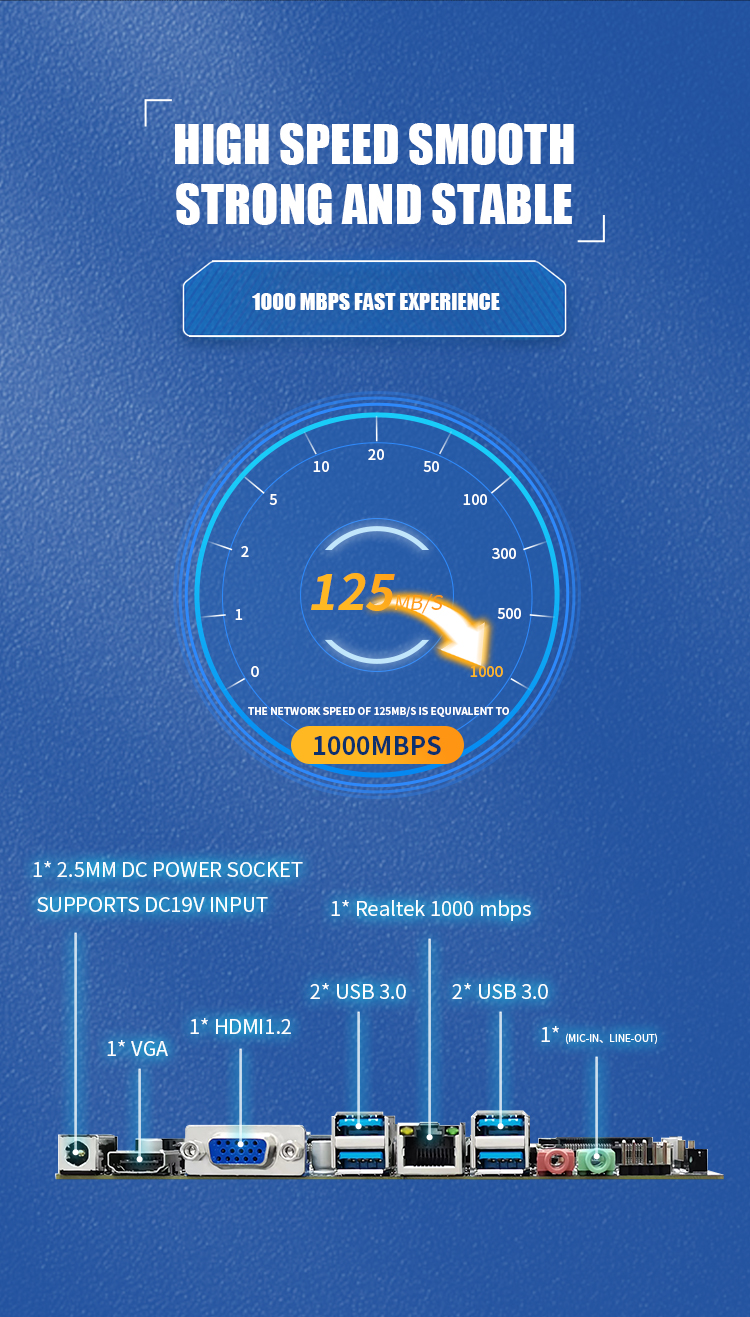

▲Rear IO provides 4xUSB3.0
▲Built-in pins can expand 5 USB2.0 interfaces
▲1 x HDMI, 1x VGA, 1 x LVDS
▲2x SATA
▲1 x Gigabit network card, supports PXE and
network wake-up functions
▲Supports DC12V~19V power input
| Product Profile | ||

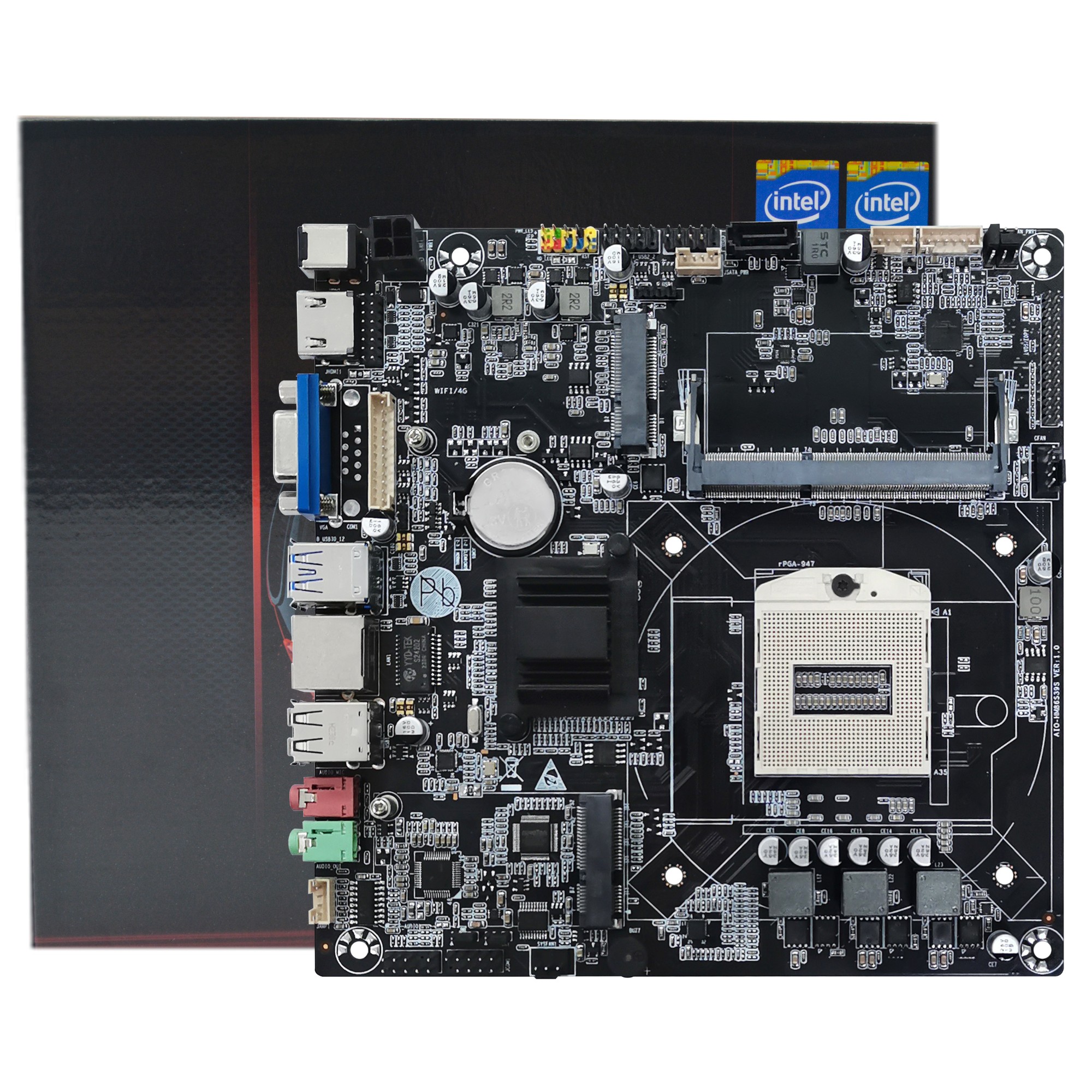

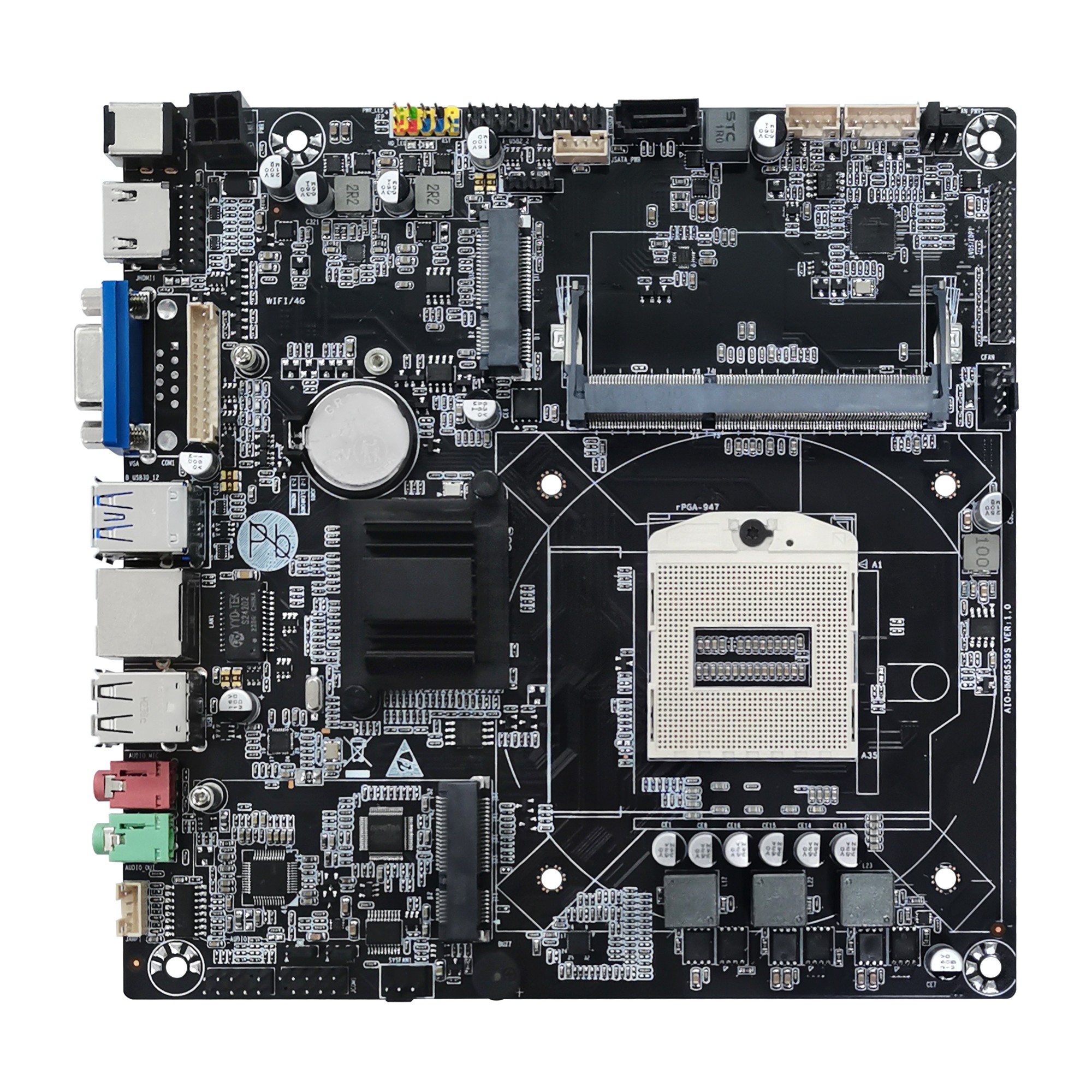

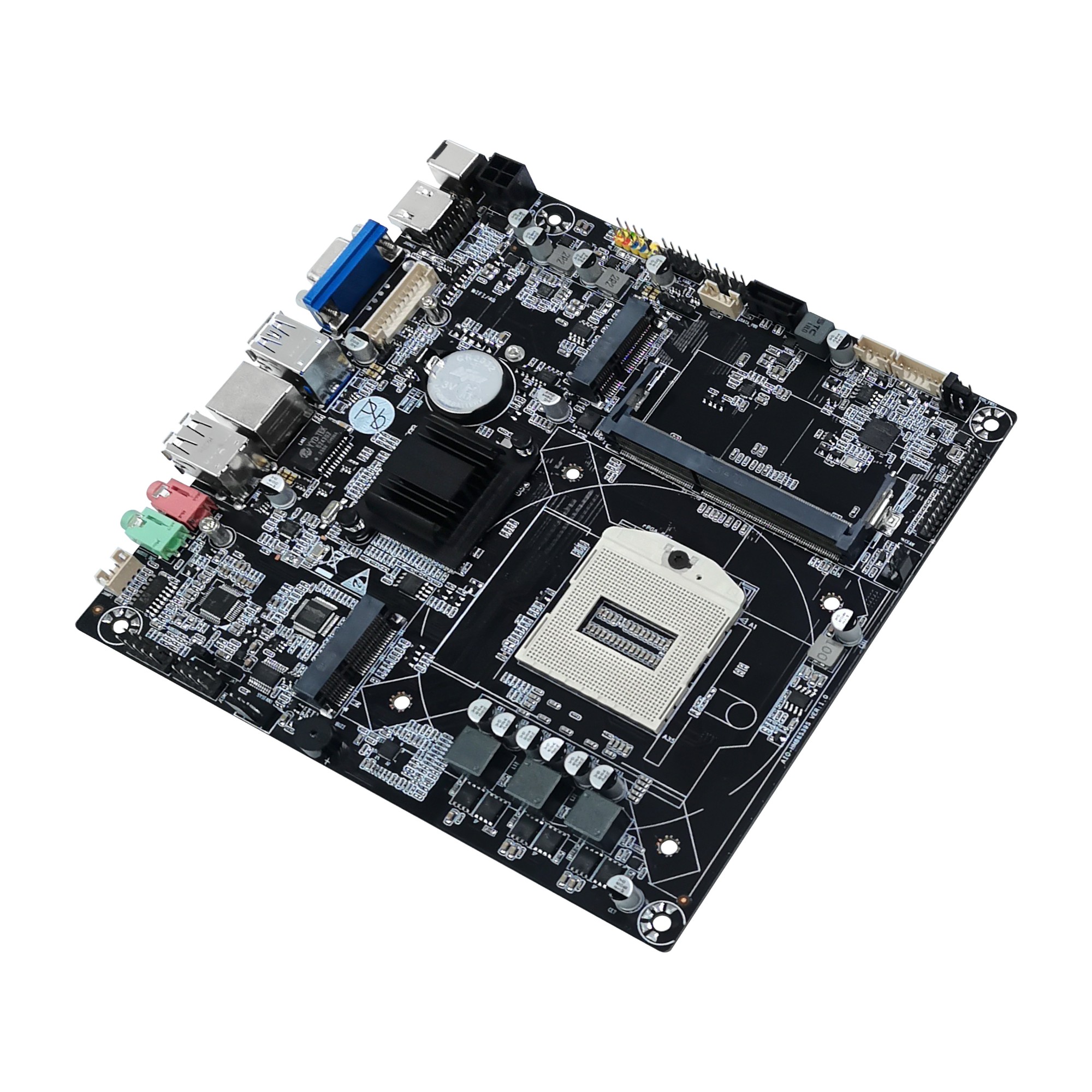

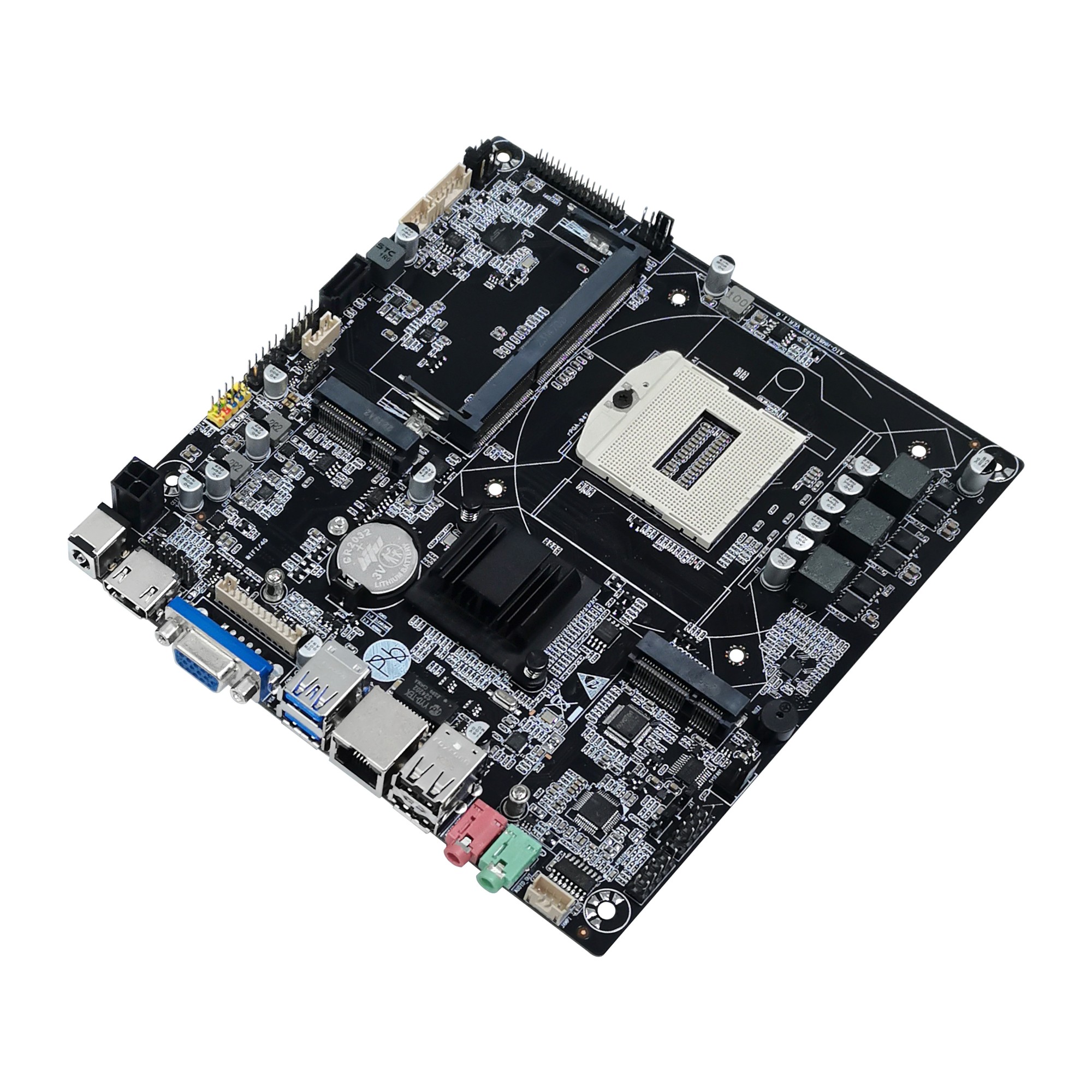

Product Name | AIO H110D39M All In One Computer Motherboard | |
| CPU | Intel 6th 7th 8th 9th generation CPUs | |
Chipset | H110 | |
Internal Memory | 2*DDR3 SO-DIMM, 1600MHz/16G, single slot supports up to 8G | |
Storage Interface | 1*M.2 slot (NGFF/NVME jumper switch), JM2_SP, JM2_SP1 pins set M.2 mode 2*SATA 3.0 interface + 2*SATA power interface | |
Display Interface | 1*HDMI 1*VGA 1*LVDS | |
Network | 1*RJ45 interface | |
WIFI | 1*M.2 WIFI slot | |
USB | 4*USB 3.0 | |
Audio | 1*Line out; 1*MIC In; 1*F_Audio built-in pin; 1*JAMP built-in amplifier pin | |

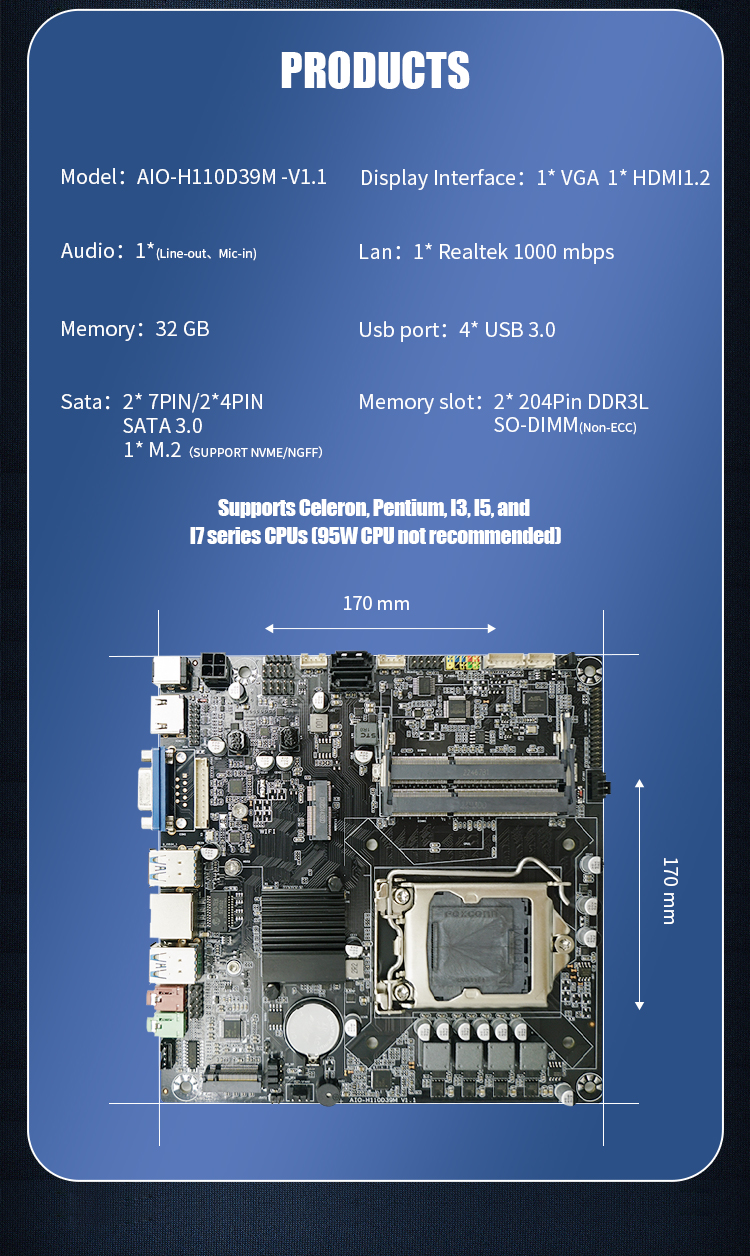

Product Size | 170*170MM DC 12V to 19V Motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
