▲Support Intel Gen4 I7, I5, I3 series processors ▲Support 1 SATA interface, 2 USB3.0, 7 USB2.0
▲Support single channel DDR3L 1600MHz SO-DIMM
▲Support 5.1 channel ALC897 chip
▲Support 1 serial port
▲ High-speed USB3.0 interface transfer speed
▲Mini PCIE expansion slot*2
▲RJ45 Gigabit LAN card interface
▲Support VGA/HDMI/LVDS display interface and support synchronous triple display
▲Support Windows 7 Windows 10 32/64-bit operating system
▲Support single power supply 12V~19V DC input
| Product Profile | ||

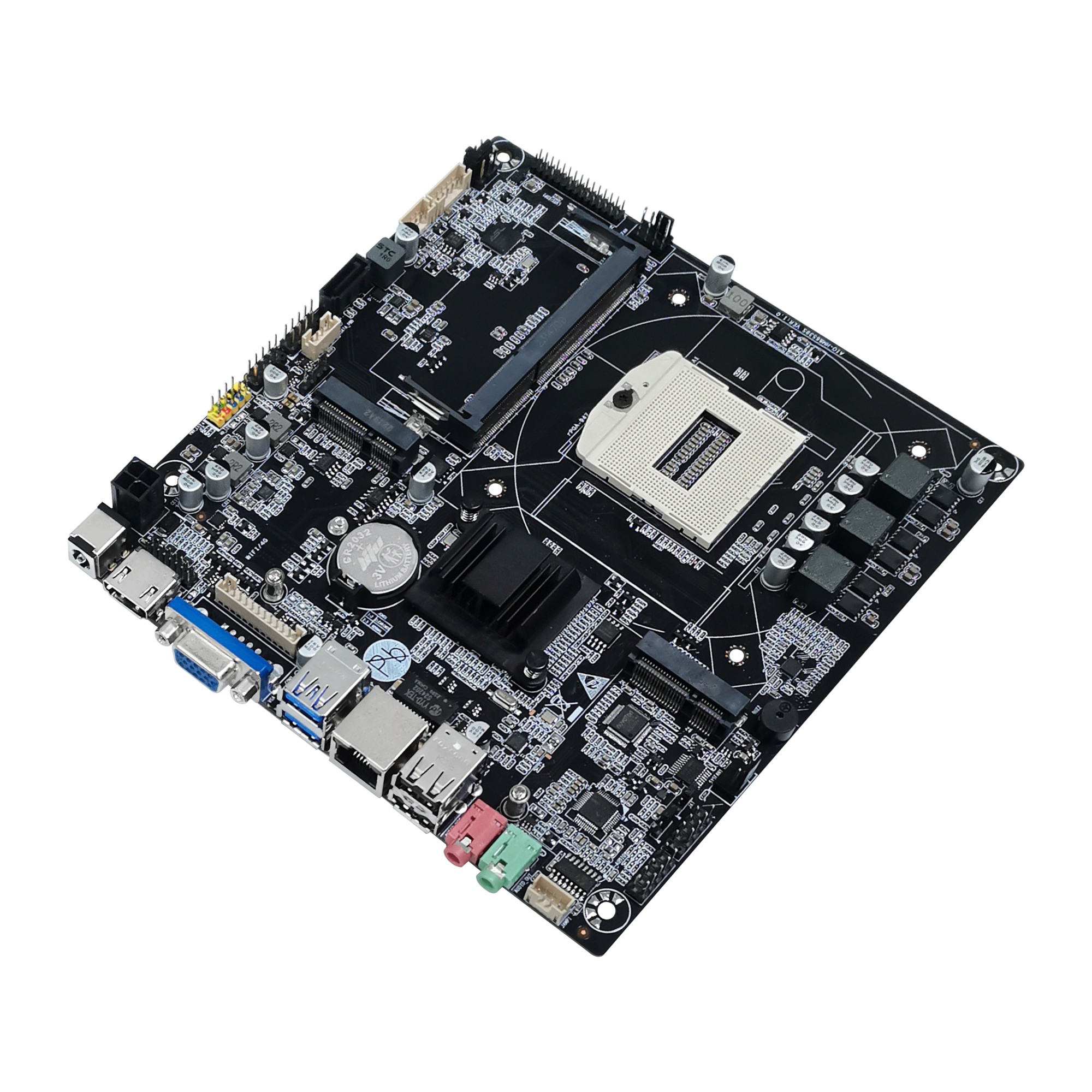

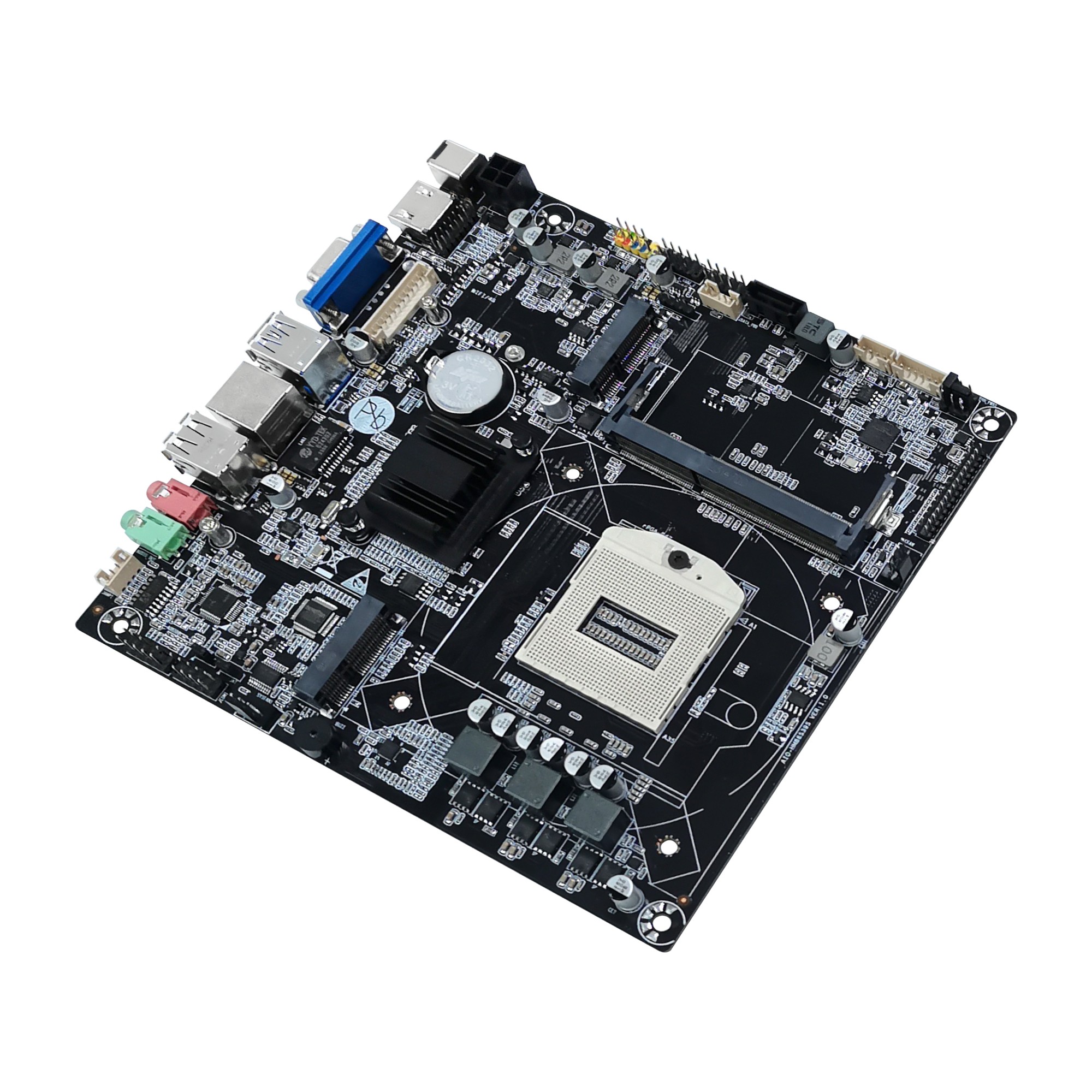

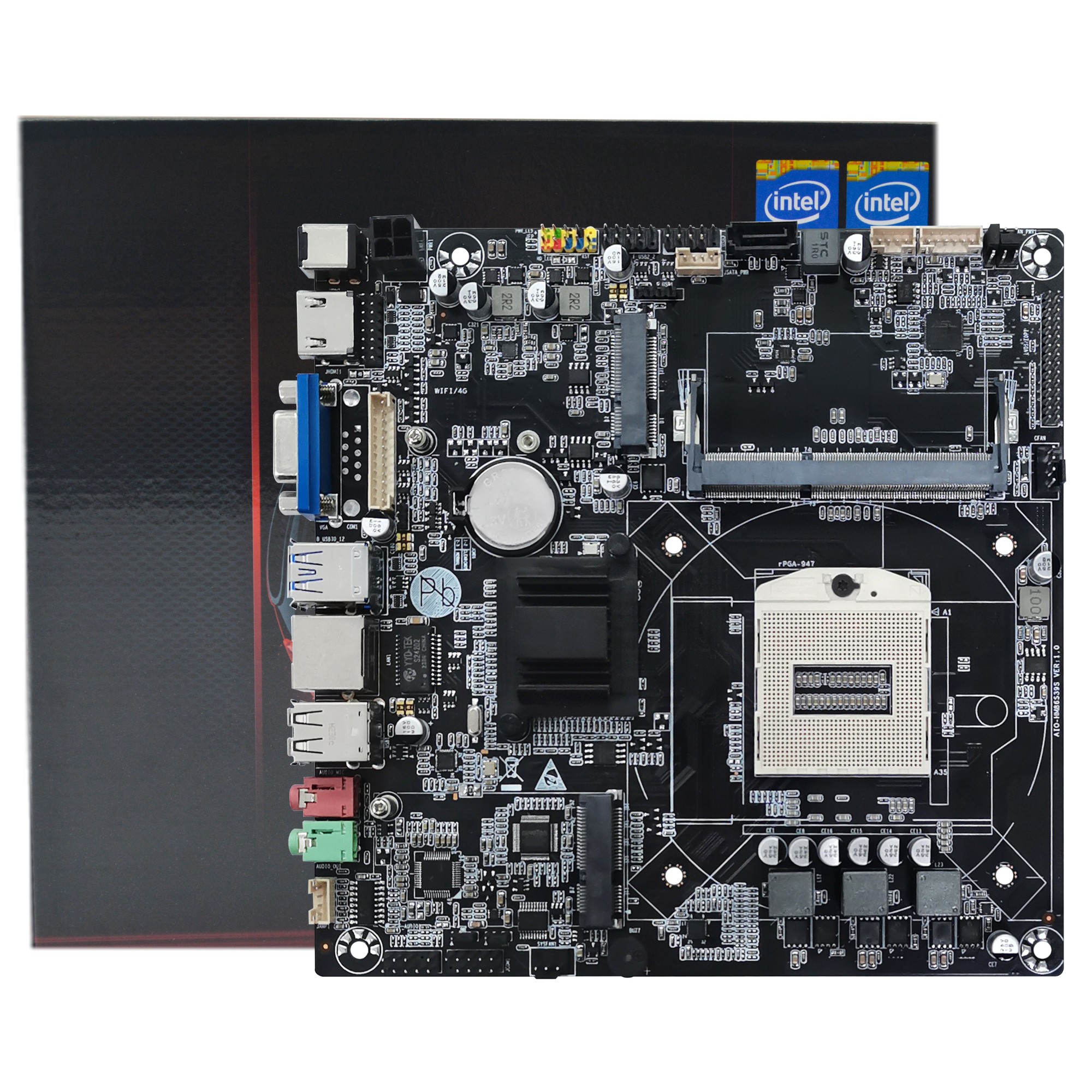

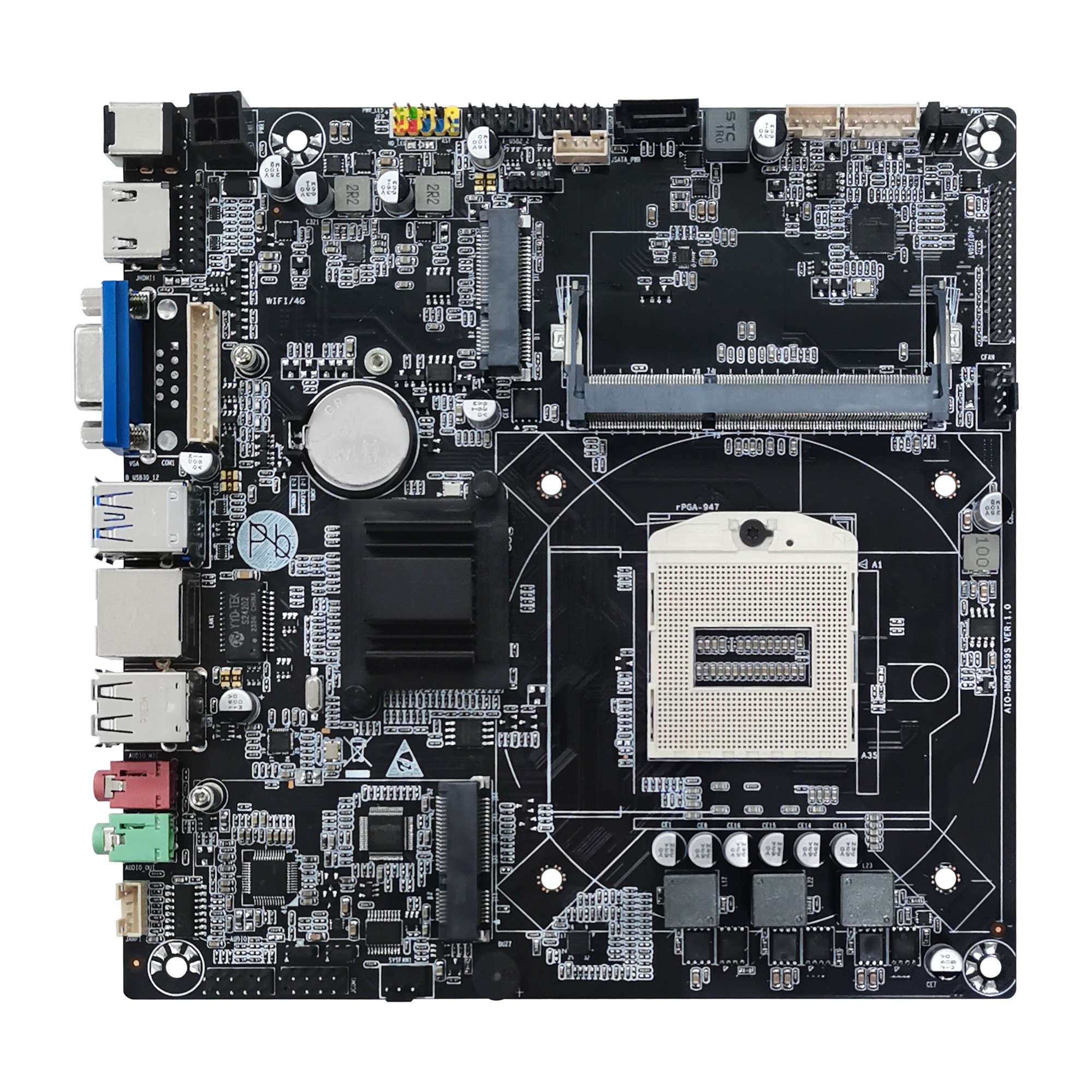

Product Name | AIO HM86S39S All In One Computer Motherboard | |
| CPU | The Intel Gen4 i7 / i5 / i3 series processor | |
Chipset | HM86 | |
Internal Memory | Single-channel DDR3L 1600MHz 1*204Pin DDR3L SO-DIMM(Non-ECC) 8GB | |
Storage Interface | 1 * M.2 slot (NVME and SATA protocol ) 3 * SATA 2.0 interface | |

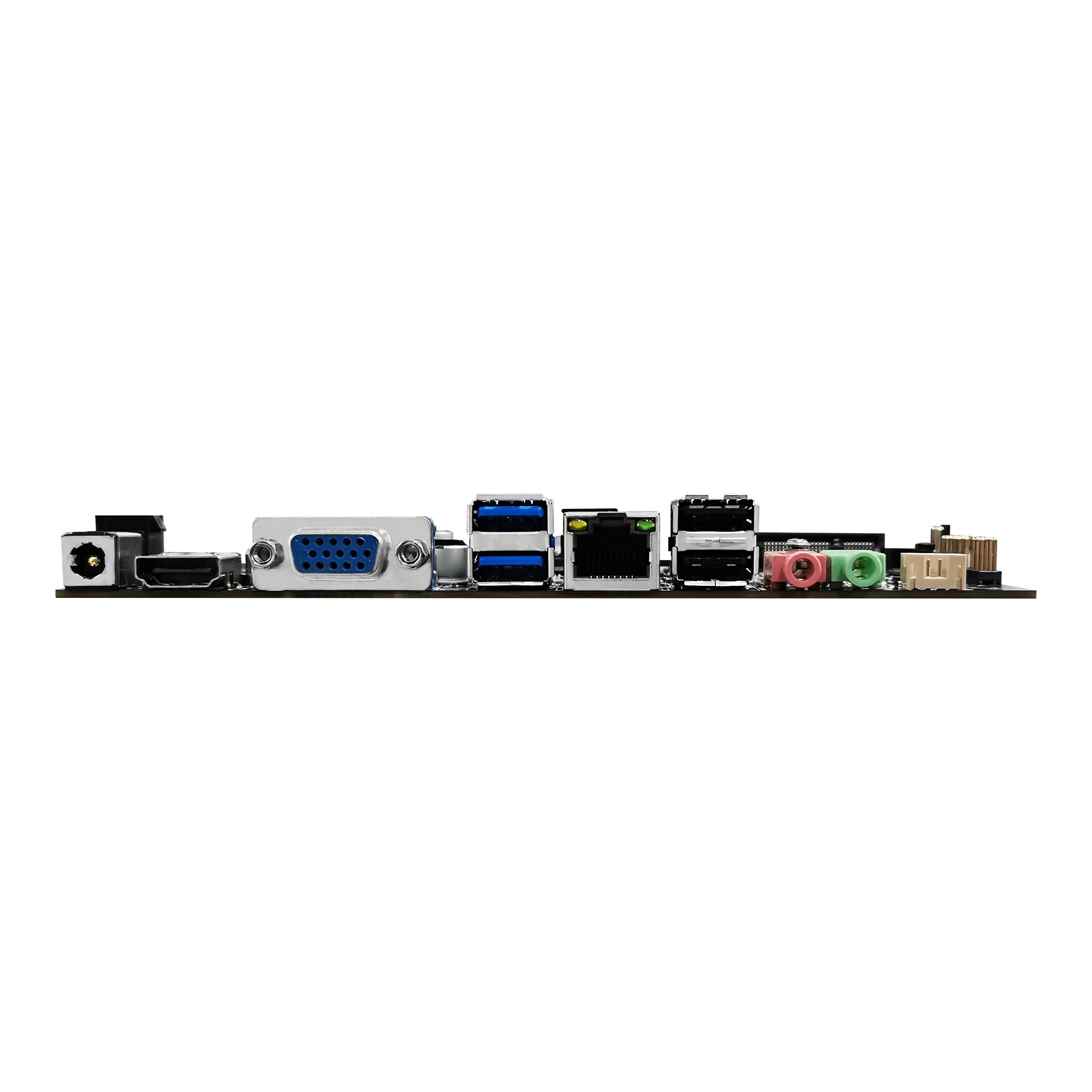

Display Interface | 1*HDMI 1*VGA | |
Network | 1 * Realtek Gigabit network card | |
SATA port | 1 * 7Pin SATA port, supporting SATA 2.0 | |
USB | 4*（2*USB 3.0、2*USB 2.0） | |
Audio | 1*(Line-out、Mic-in) | |

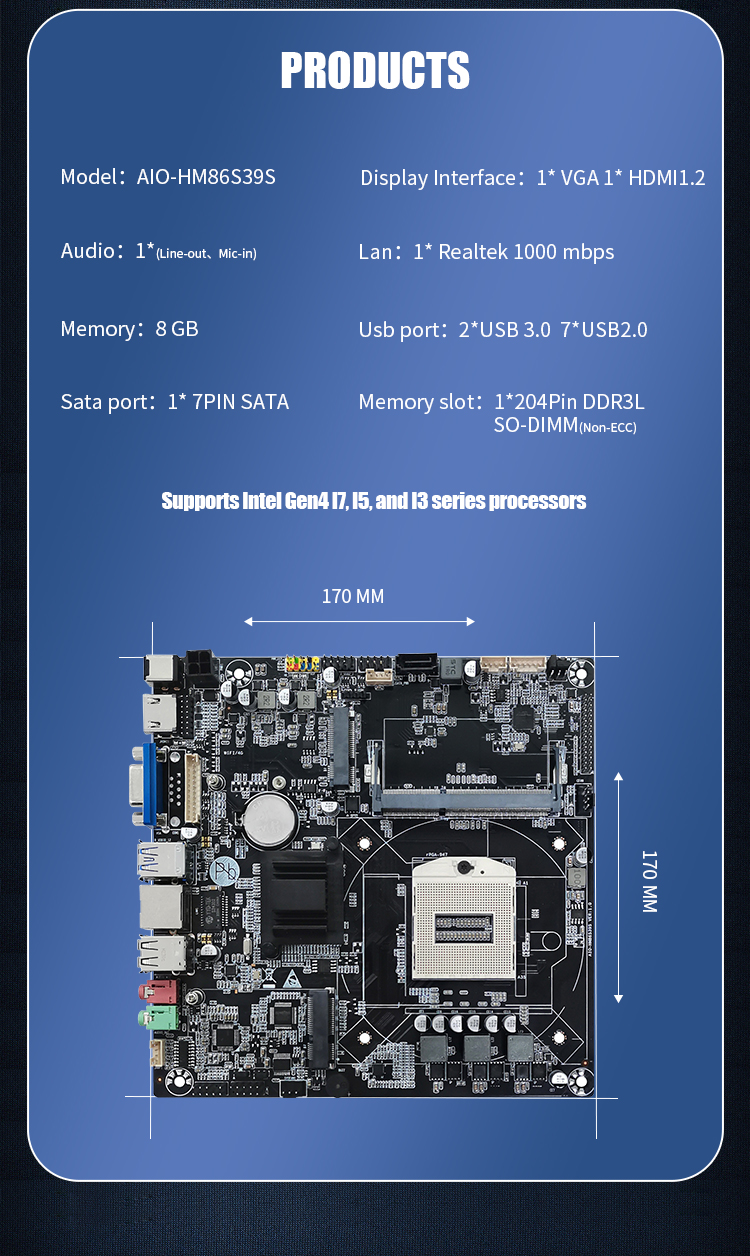

Product Size | 170*170MM DC 12 V to 19 V motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
