-Support LGA 2011-3 Intel series processors
-Support dual-channel DDR3 DIMM memory
-3× SATA sockets
-1x M.2 2280/2260/2240 slot (supports NVME mode) *Rear IO provides 6xUSB2.0
-Built-in pins can expand 4 USB2.0
-1 x PS2 keyboard and mouse
-1 x Gigabit network card, supports PXE and network wake-up functions
-1 x PCIE X16 slot, 1 x PCIE X1 slot *Support 24Pin+8Pin ATX power input
-Windows 7 Windows 10 Windows11

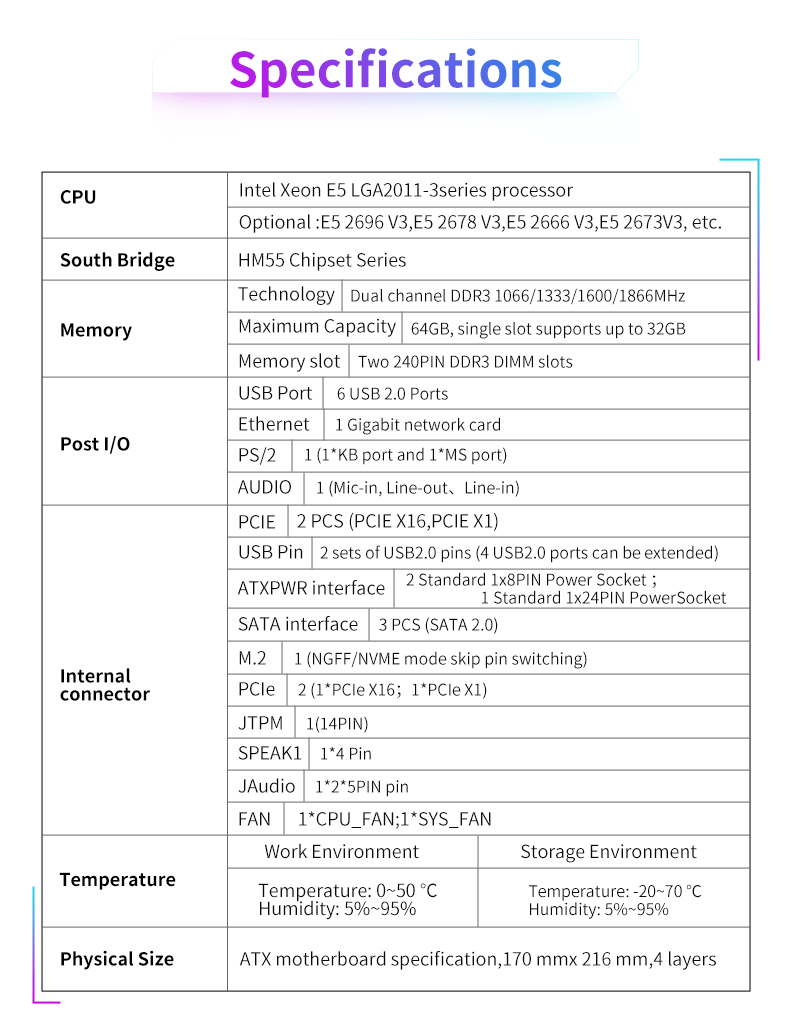

| Product Profile | ||
Product Name | X99 P31 Computer Motherboard | |
| CPU | Intel LGA 2011-3 pin series CPU E5 2673V3/E5 2676 V3/E5 2666V3/E5 2678V3/E5 2696V3/E5 2686V4/E5 2696V4 etc. | |
Chipset | PM55 | |
Internal Memory | 2 *DDR 3 DIMM 1866 MHz/ maximum memory support 64G | |
Storage Interface | 1 * M.2 slot (NVME and SATA protocol ) 3 * SATA 2.0 interface | |
Display Interface | / | |
Network | 1*RJ45 interface | |
PCIE Solt | 1*PCIE X16 slot; 1*PCIE X1 slot | |
USB | 6*USB2.0 | |
Audio | 1 (Mic-in, Line-out、Line-in) | |
Product Size | 171*216mm M-ATX motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
