▲support 2/3 Celeron/Pentium/Core LGA1155
pin series of processors
▲support 4*SATA port,12*USB port
▲Support high-speed DDR3 dual-channel
memory slots,support 1066/1333/1600MHz, MAX 16G
▲support 5.1 channel ALC897 chip
▲support M.2*1
▲support WIFI*1
▲support HDMI/VGA display port
▲support PCIE Expansion slot*1
▲supportRJ45 100 Mbit/s NIC port *1
▲support 4 layers PCB baseboard, 2+1
phase power supply
▲support Win7,Win10 32/64 operating systems

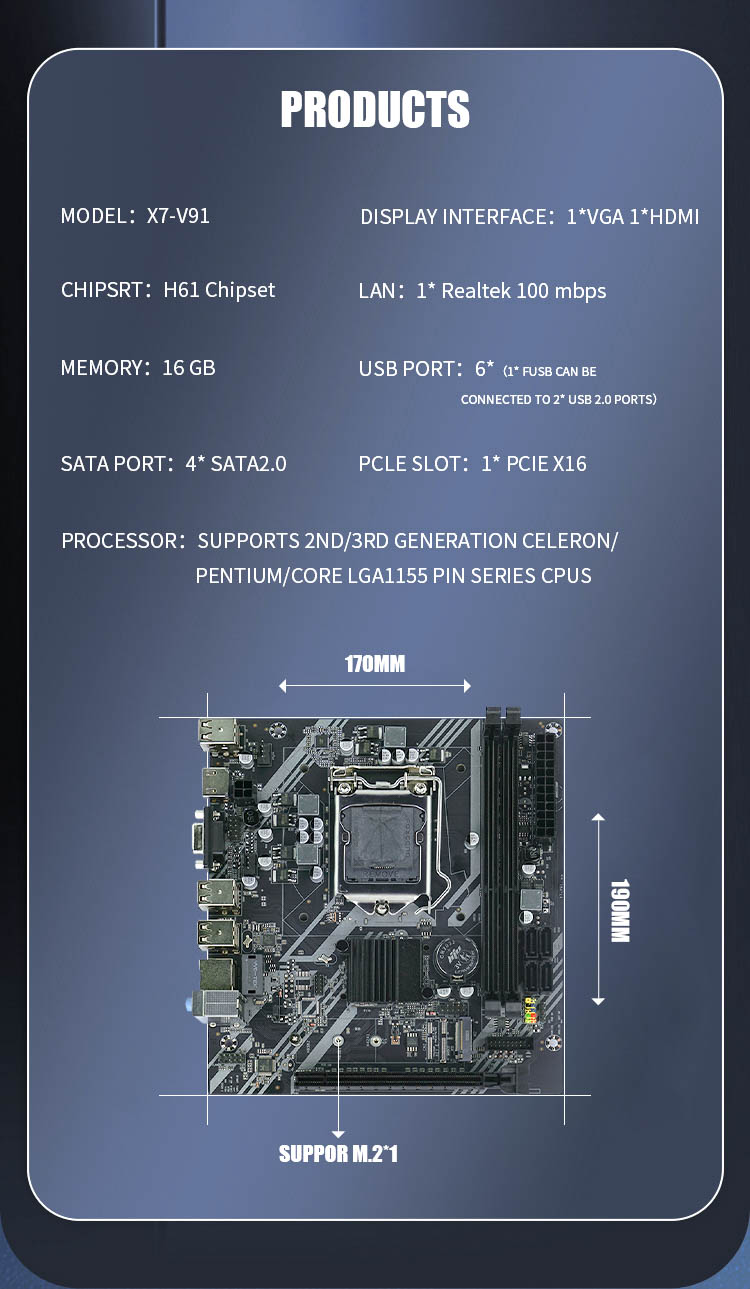

| Product Profile | ||
Product Name | X7 V91 Computer Motherboard | |
| CPU | Support 2/3 Celeron/Pentium/Core LGA1155 pin series of processors CPU | |
Chipset | H61 | |
Internal Memory | Dual-Channel DDR3 1066/1333/1600MHz 2 * 240 PIN ECC/DDR3 16GB | |
Storage Interface | 1*M.2，Supports the NVME protocol | |
Display Interface | 1*VGA,1*HDMI | |
Network | 1*Realtek 100 megabit LAN | |
PCIE Solt | 1*PCIE x16 | |
USB | 6*USB 2.0 | |
Audio | 1*(Mic-in, Line-out、Line-in) | |
Product Size | 170 mm x 190 mm | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
