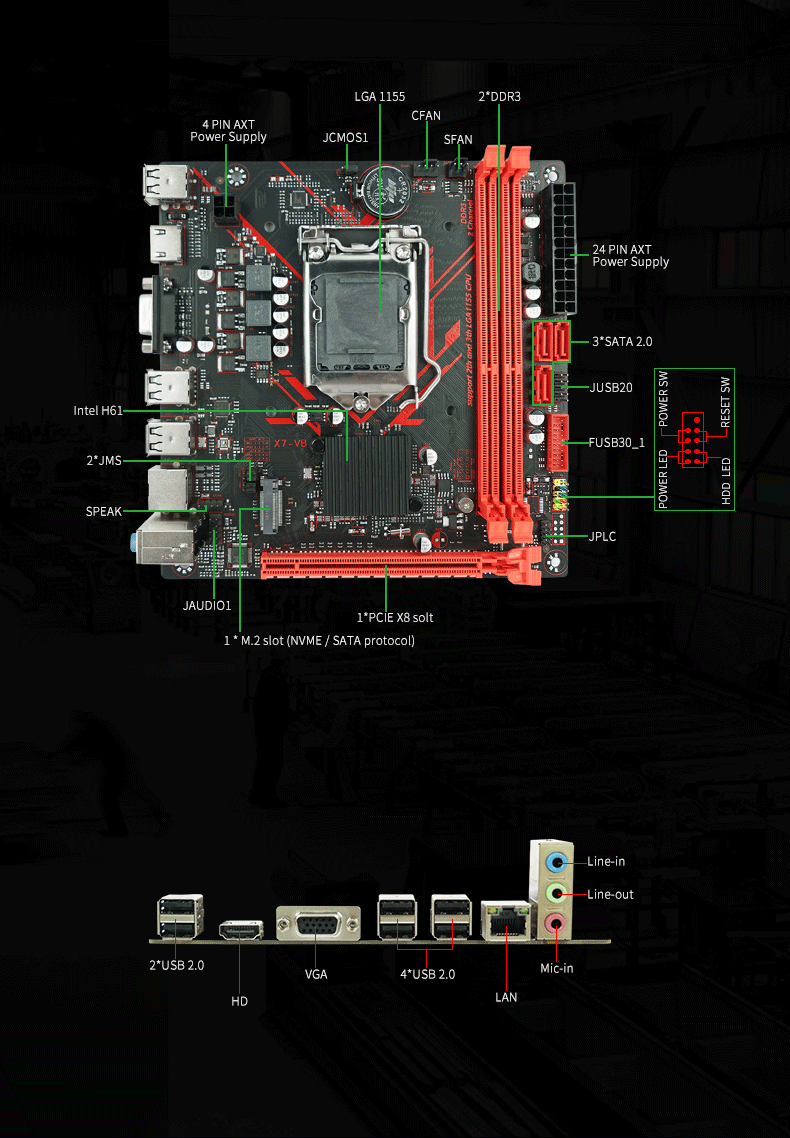

◆Support for LGA 1155 Intel series processors
◆Support for dual-channel DDR3 DIMM memory
◆3× SATA jack
◆1x M.2 2280/2260/2240 solt（support NVME/SATA model）
◆The rear interface provides 6xUSB2.0
◆Built-in pins can extend by 4 USB2.0
◆1 x 100 million abit network card,support PXE and network wake up function
◆1 x PCIE X8 solt
◆Supports 24 Pin + 4Pin ATX power input
◆Windows 7,Windows 10
| Product Profile | ||
Product Name | X7 VB V2.0 Computer Motherboard | |
| CPU | InteI LGA 1155,Intel Second,Third Generation,Xeon E Series CPU | |
Chipset | H61 | |
Internal Memory | 2 * DDR3 DIMM, 1600 MHz / 16G, single slot maximum support of 8G | |
Storage Interface | 1 * M.2 slot (NVME / SATA protocol); 3 * SATA 2.0 interface | |
Display Interface | 1*HDMI 1.4 port，1*VGA port | |
Network | 1*RJ45 port | |
PCIE Solt | 1*PCIE X8 solt | |
USB | Rear USB interface: 6 * USB2.0 Front USB pin: 4 extended USB2.0 ports | |
Audio | 1*Line out；1*Mic In；1*Line In；1*F_Audio Built-in needle | |
Product Size | 170*170mm*4L；ITX motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
