▲Support Core i7 i5 i3 Pentium Celeron LGA1150 pin series processors
▲Support 4 SATA interfaces,10 USB interfaces
▲Support high-speed DDR3 dual-channel
memory slot support 1066 1333 1600MHz,maximum capacity 16G memory
▲Support 5.1 channels
▲Support M.2*1
▲Support 1 serial port
▲High-speed USB3.0 interface transmission
speed is further improved
▲Support PCIE expansion slot*2
▲RJ45 Gigabit network card interface
▲3-phase power supply,4-layer baseboard
▲Support Win7,Win10 32 64-bit operating
system

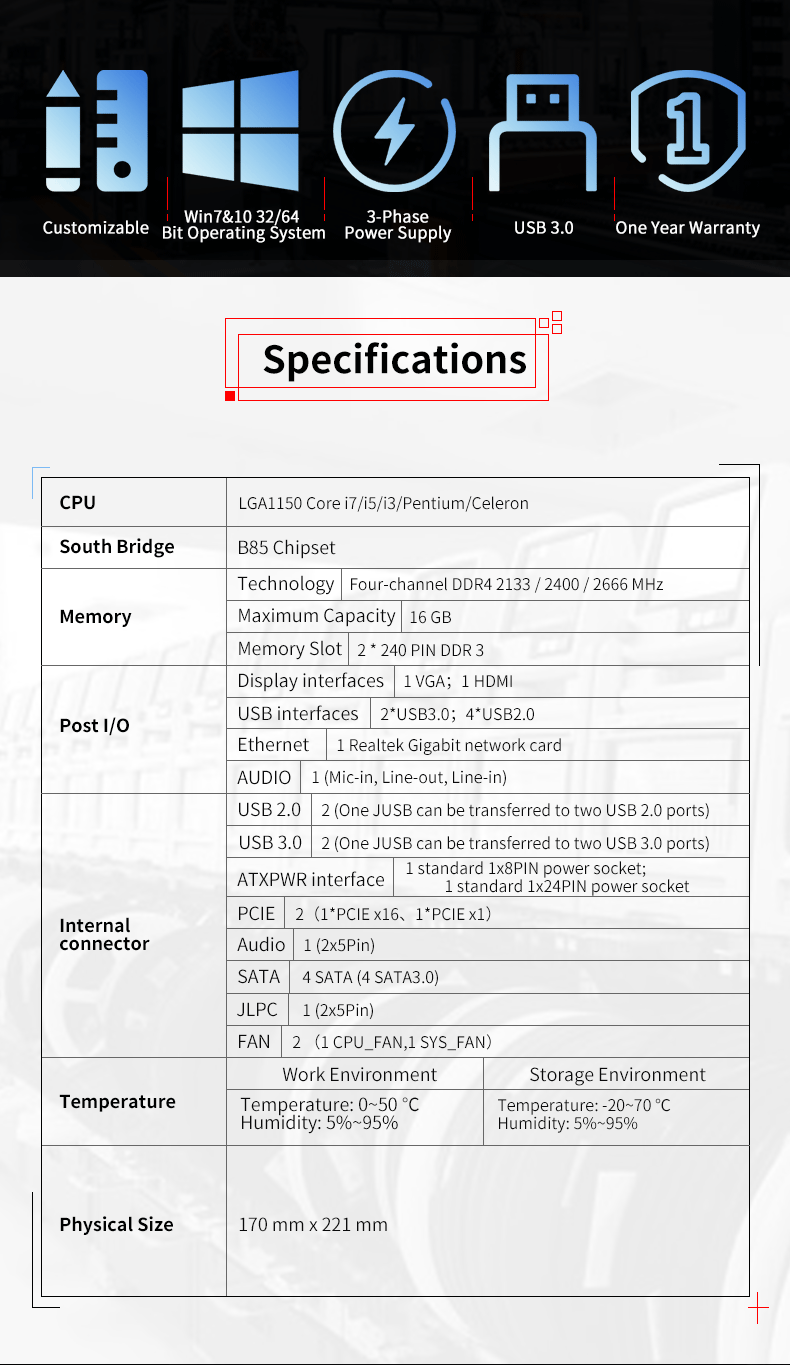

| Product Profile | ||

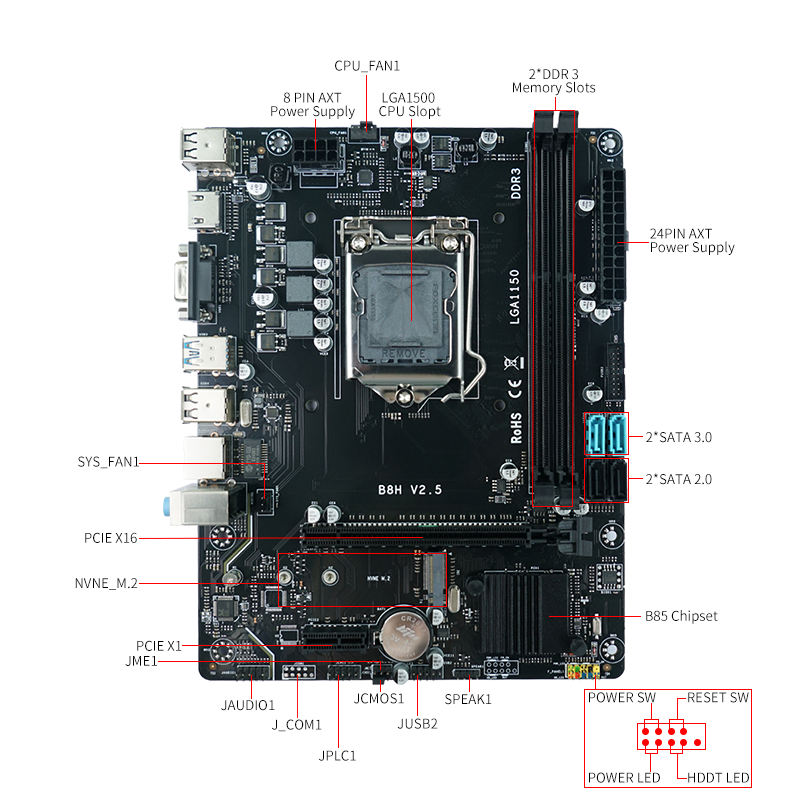

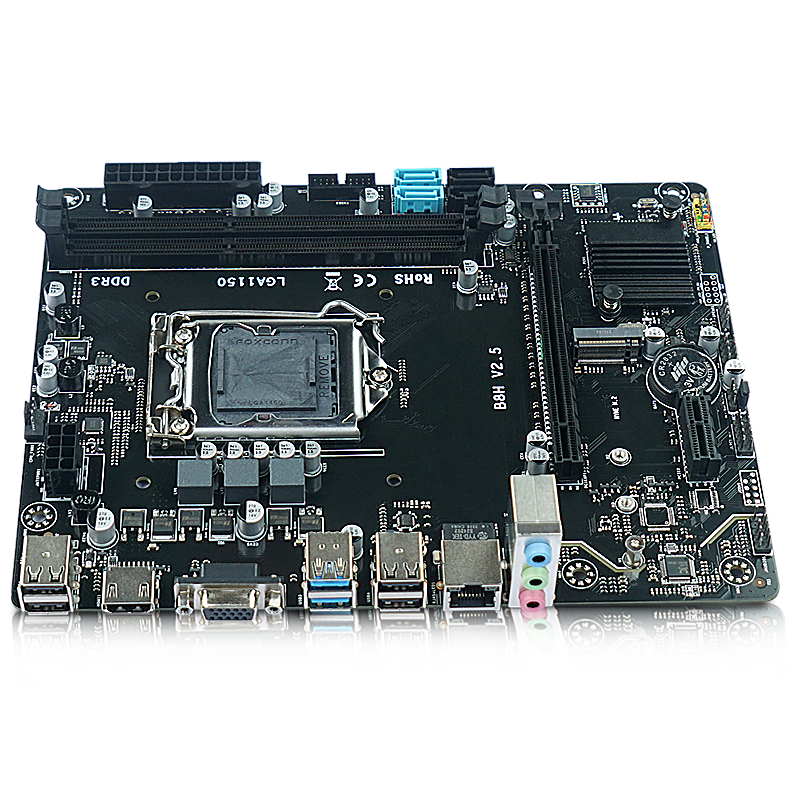

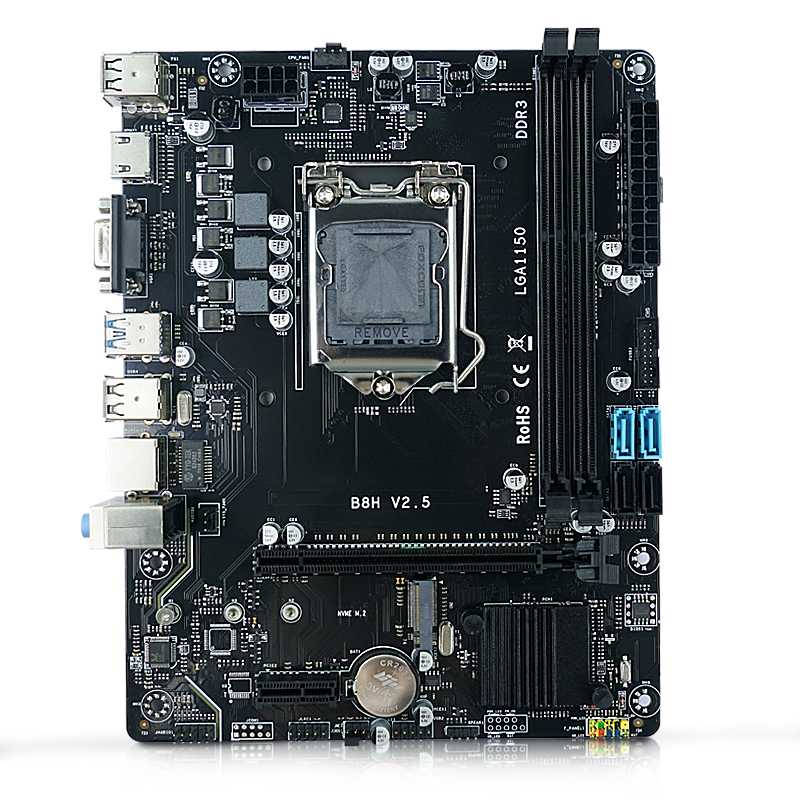

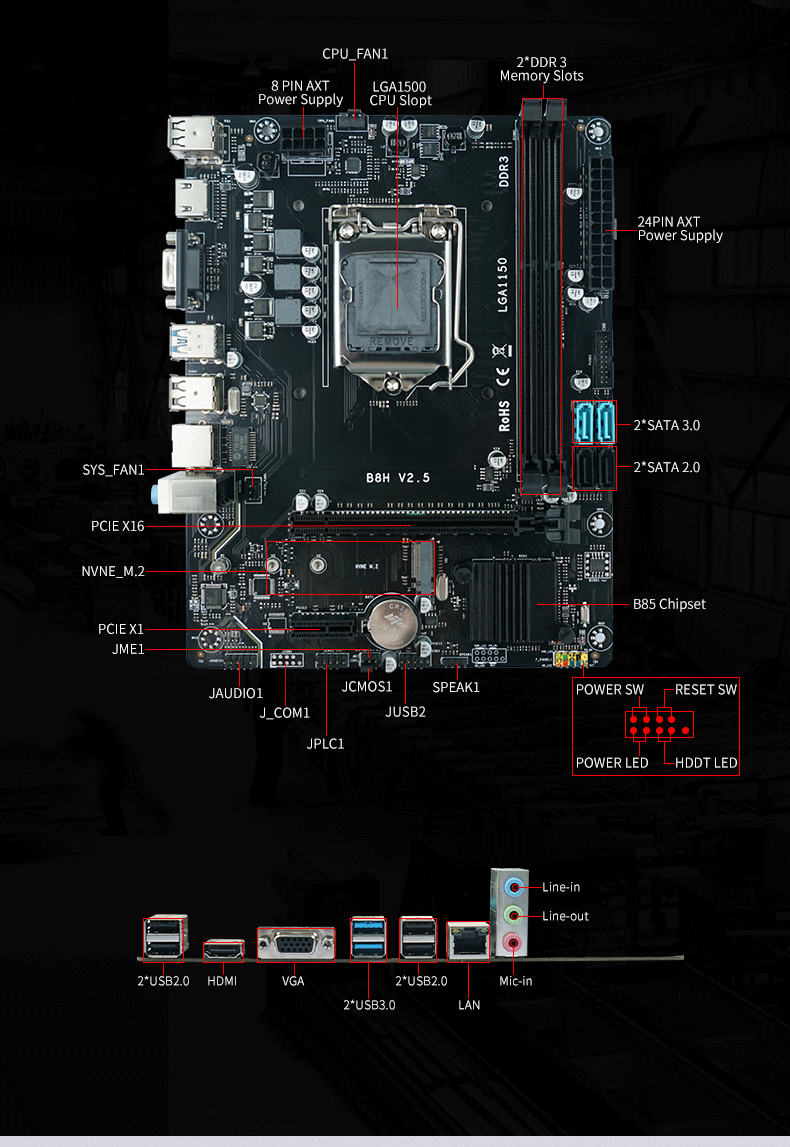

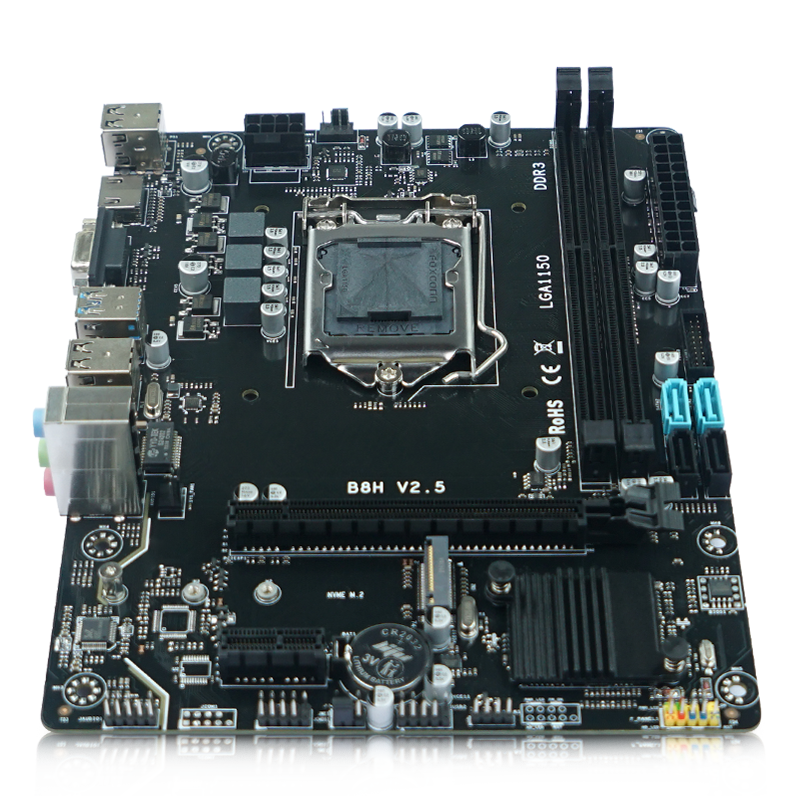

Product Name | B8H H81 B85 Computer Motherboard | |
| CPU | LGA1150 pin series Core i7/i5/i3/Pentium/Celeron | |
Chipset | H81/B85 | |
Internal Memory | Dual Channel DDR3 1066/1333/1600MHz 2 * 240 PIN DDR3 16GB | |
Storage Interface | Supports NVME Protocol | |

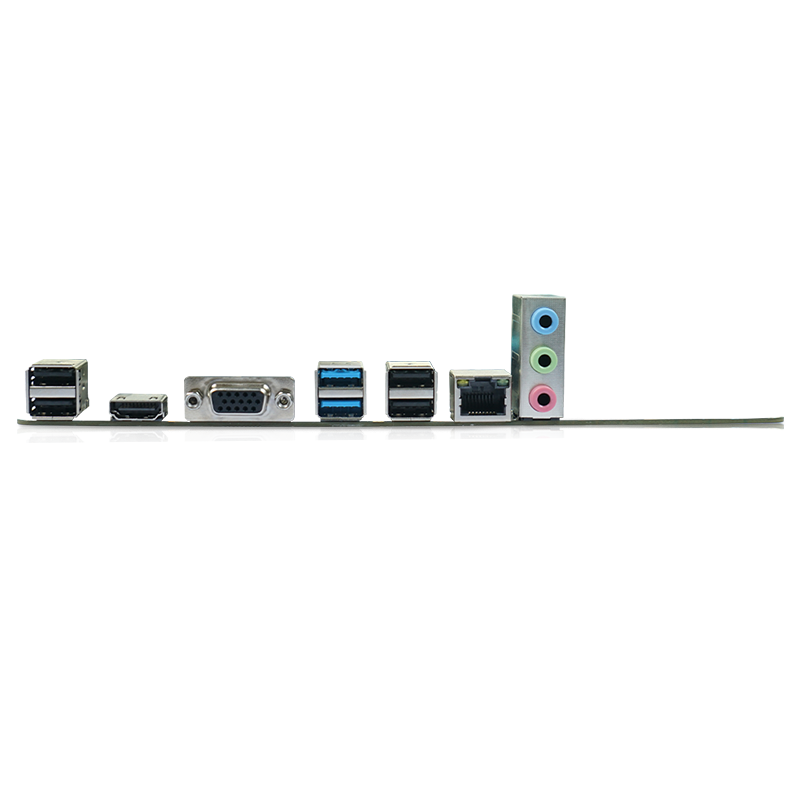

Display Interface | 1*VGA,1*HDMI | |
Network | 1 Realtek Gigabit Network Card | |
PCIE Solt | 2 (1 PCIE x16, 1 PCIE x1) | |
USB | 2 USB 3.0; 4 USB 2.0 | |
Audio | 1*(Mic-in, Line-out、Line-in) | |
Product Size | 170 mm x 221 mm | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
