▲Supports LGA1151 Intel Core i9 i7 i5 i3 Pentium series processors

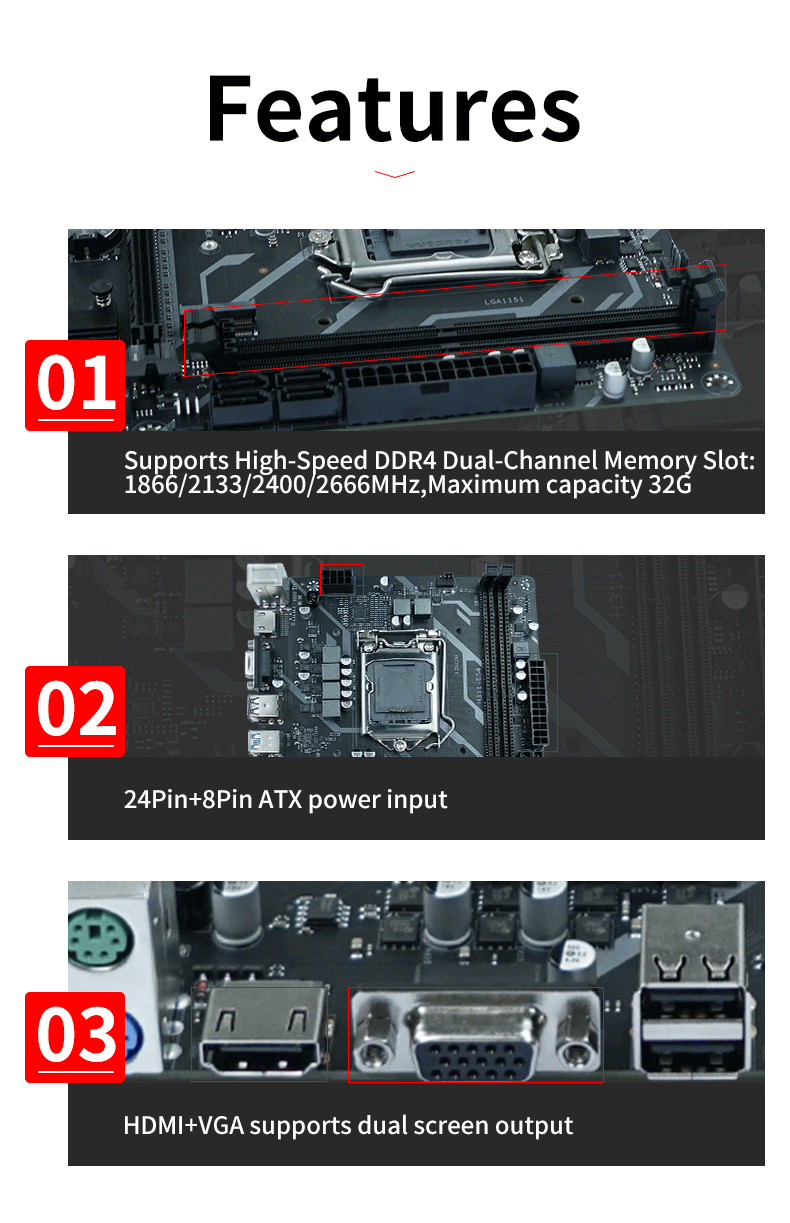

▲Supports high-speed DDR4 dual-channel memory slot supports 1866 2133 2400 2666MHz,Maximum capacity 32G
▲Support VGA HDMI

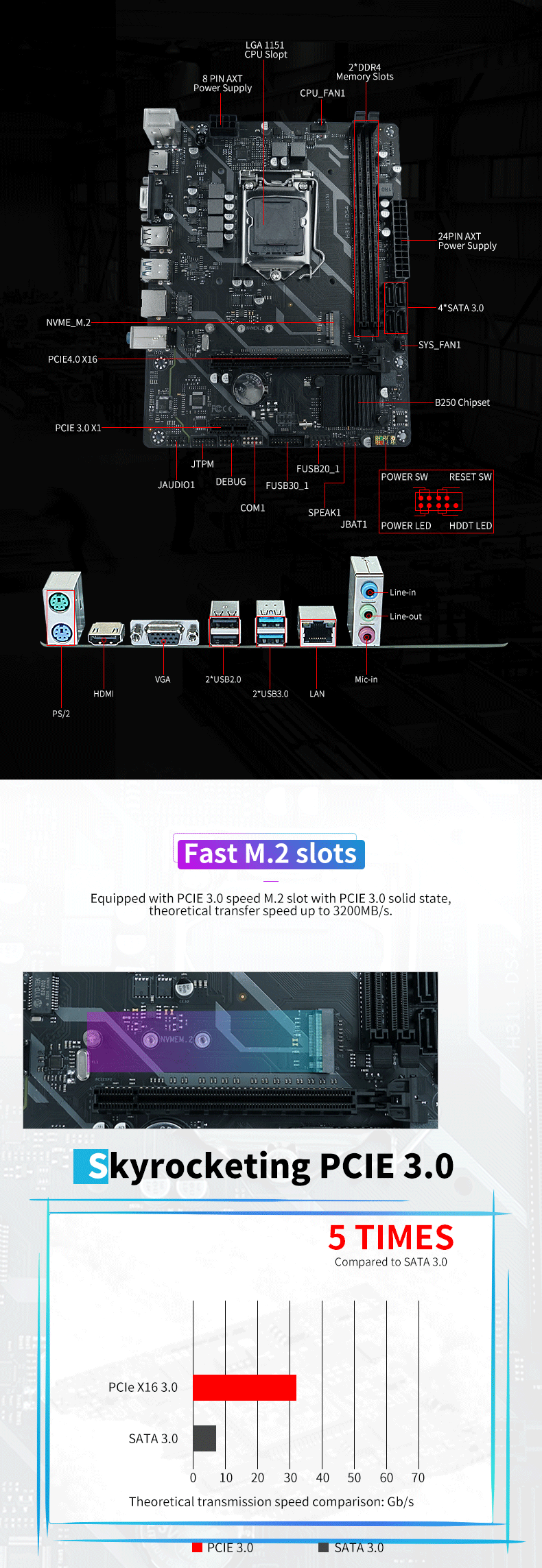

▲Supports 1 M.2 (NVME protocol)
▲Supports 4 SATA interfaces
▲Supports 4 USB3.0,4 USB2.0
▲Supports Realtek Gigabit network card
▲Supports 6-phase CPU power supply, 4-layer PCB

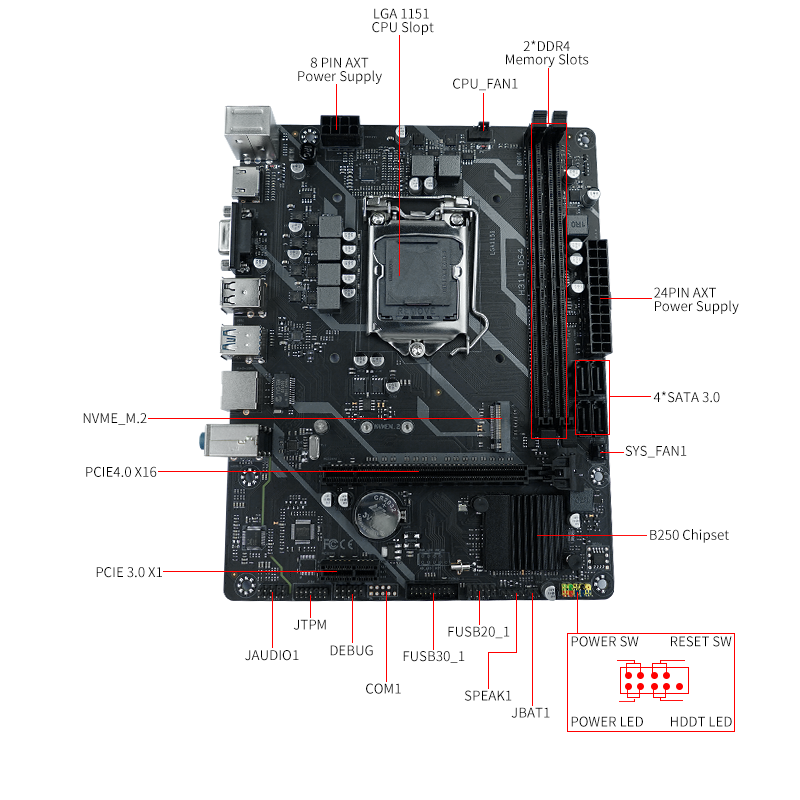

| Product Profile | ||

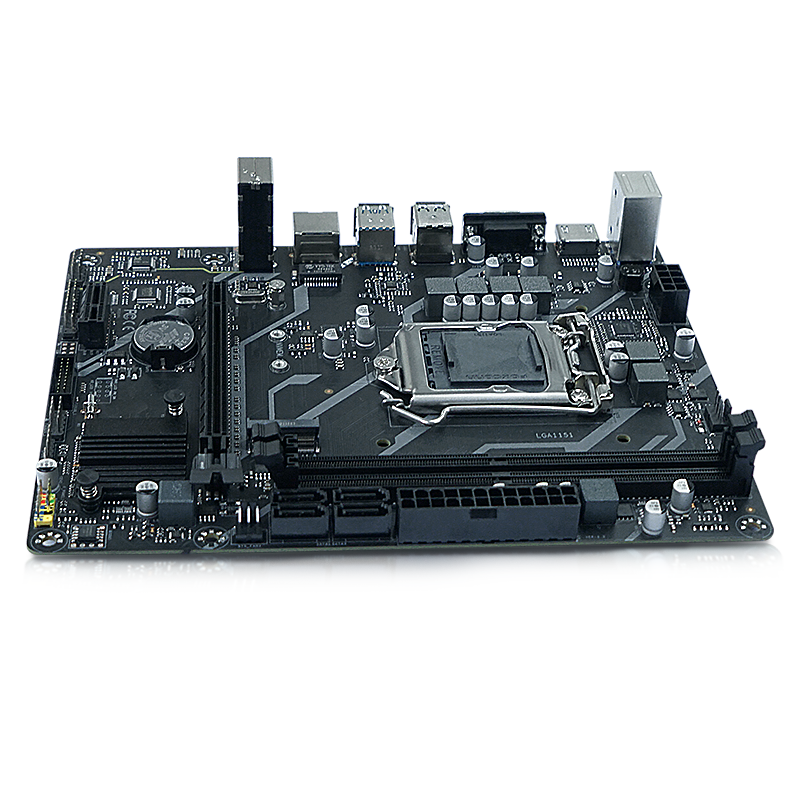

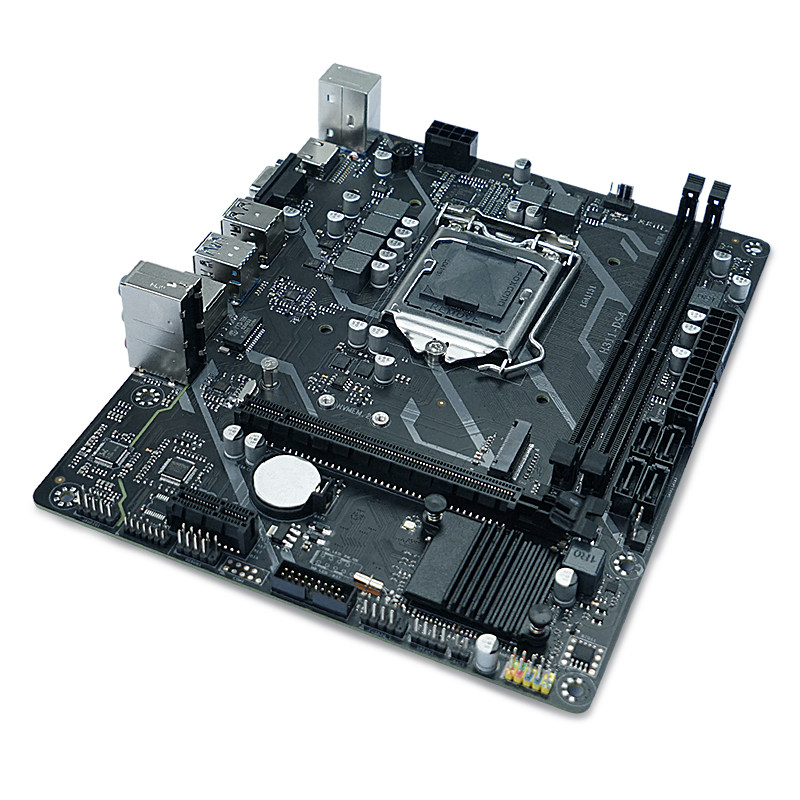

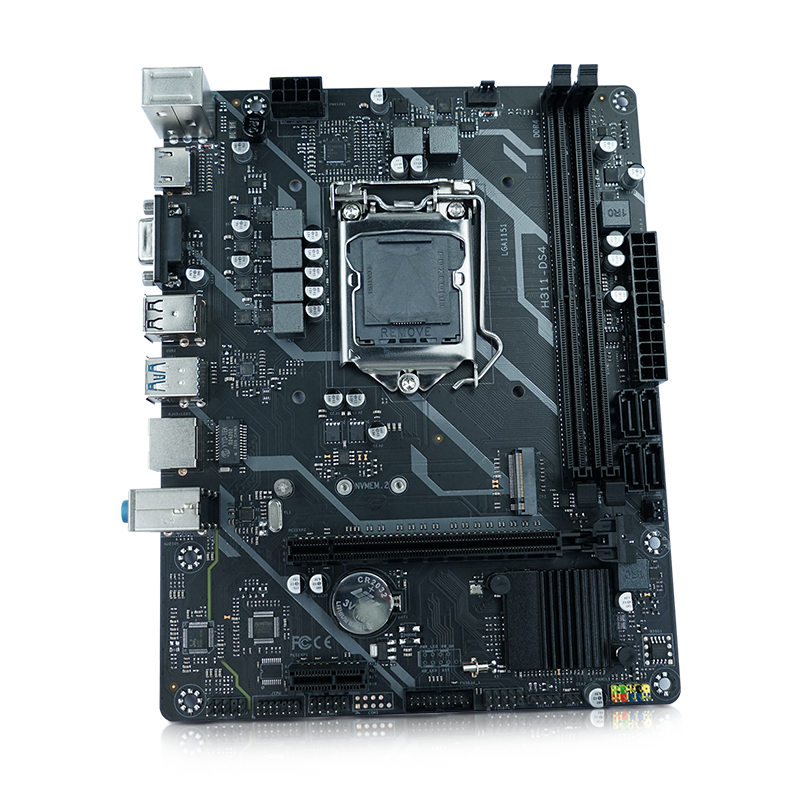

Product Name | H311 DS4 Computer Motherboard | |
| CPU | Intel I9/I7/I5/I3/Pentium LGA 1151 series processor | |
Chipset | B250 | |
Internal Memory | Dual-channel DDR4;Support 1866/2133/2400/2666MHz | |
Storage Interface | 1* (PCIe Gen3 X4) | |

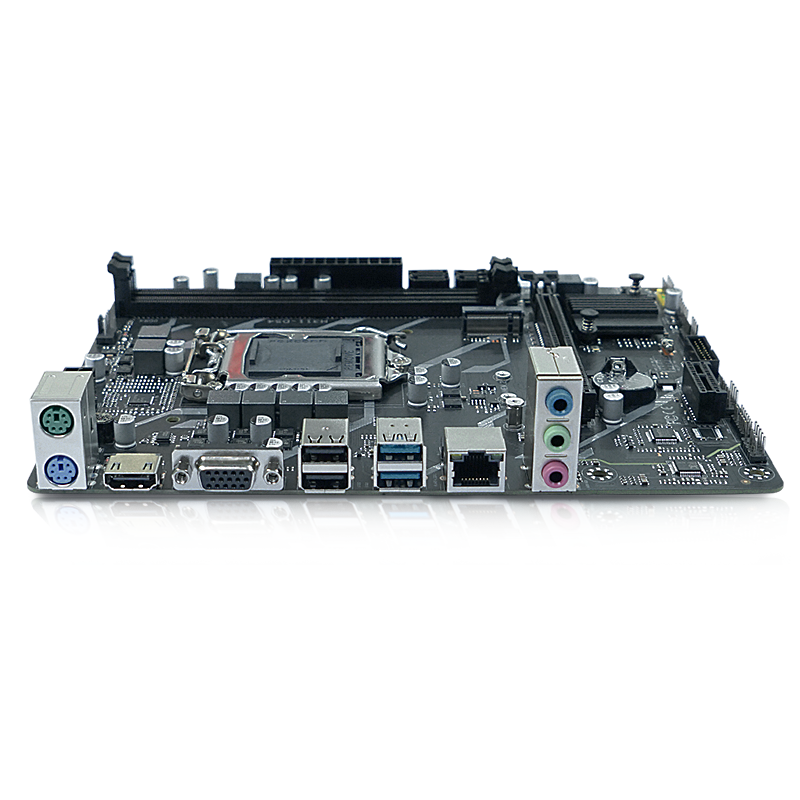

Display Interface | 1*VGA,1*HDMI | |
Network | 1 Realtek Gigabit Network Card | |
PCIE Solt | 2（1*PCIe X16 3.0，1*PCle X1) | |
USB | 2* USB 2.0；2*USB3.0 | |
Audio | 1*(Mic-in, Line-out、Line-in) | |
Product Size | 170 mm x 216 mm | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
