▲Supports Intel Comet Lake and Rocket Lake series processors
▲Supports DDR4 dual-channel memory, up to 64GB and 3200MHz SO-DIMMs
▲Supports stereo dual-channel audio with onboard power amplifier
▲support 1*com
▲support 4*USB3.0，5*USB2.0
▲support M.2 WIFI port
▲support 2*7Pin SATA port ,1*M.2 hard disk
▲Supports 1 RJ45 Gigabit network adapter port
▲Supports VGA/HDMI/LVDS display interface and synchronous dual display
▲Support DC12V/19V power input
▲Support Windows10 32-bit / 64-bit operating system,Linux syste
| Product Profile | ||

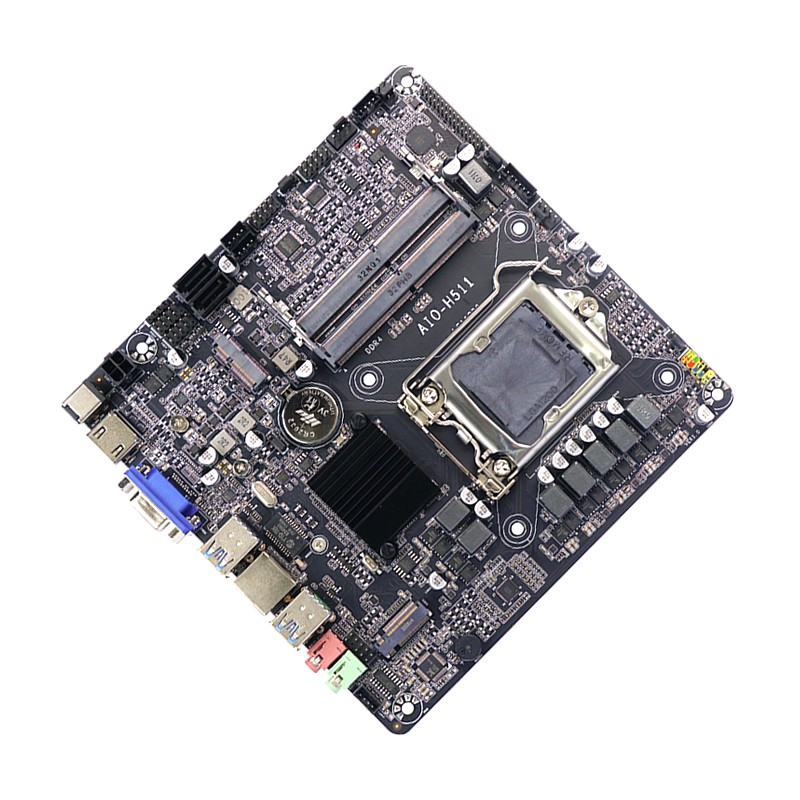

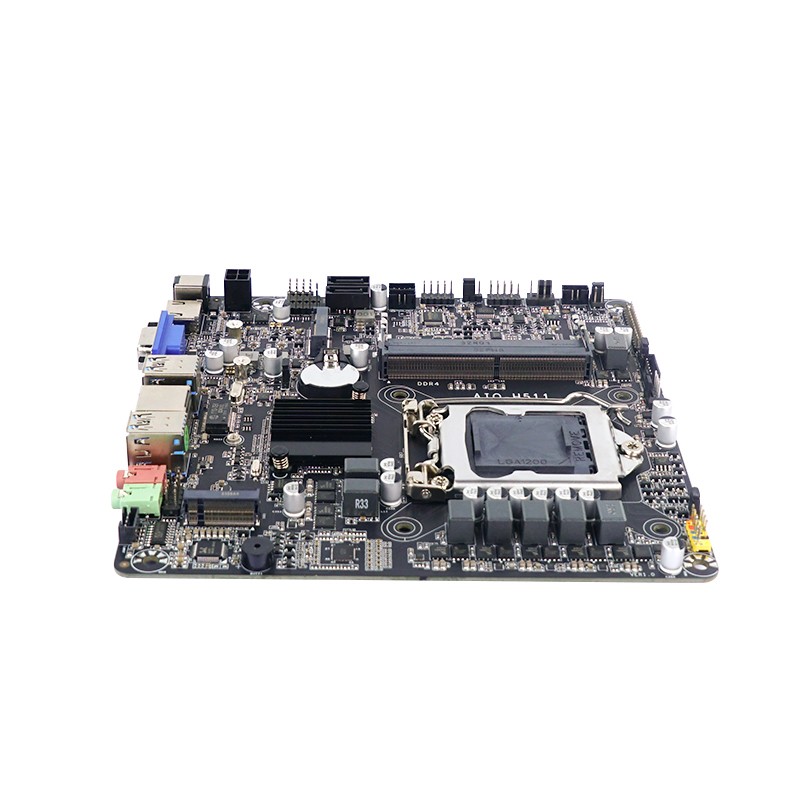

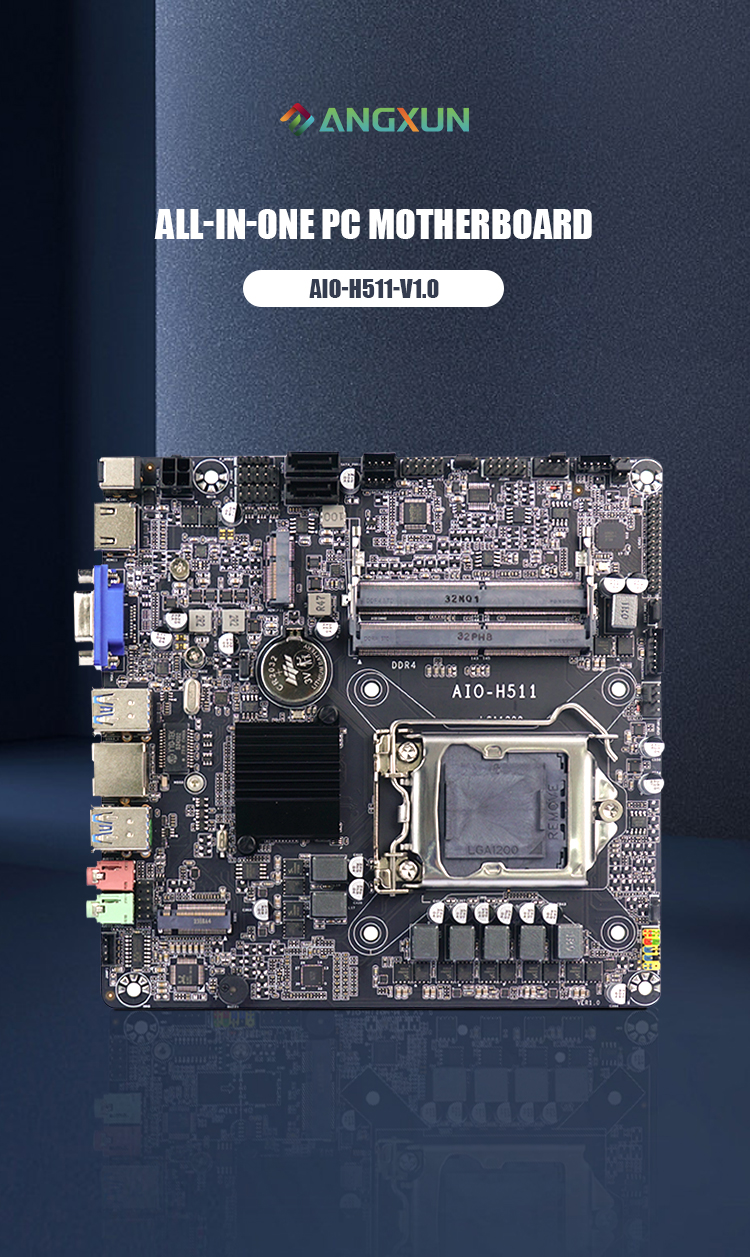

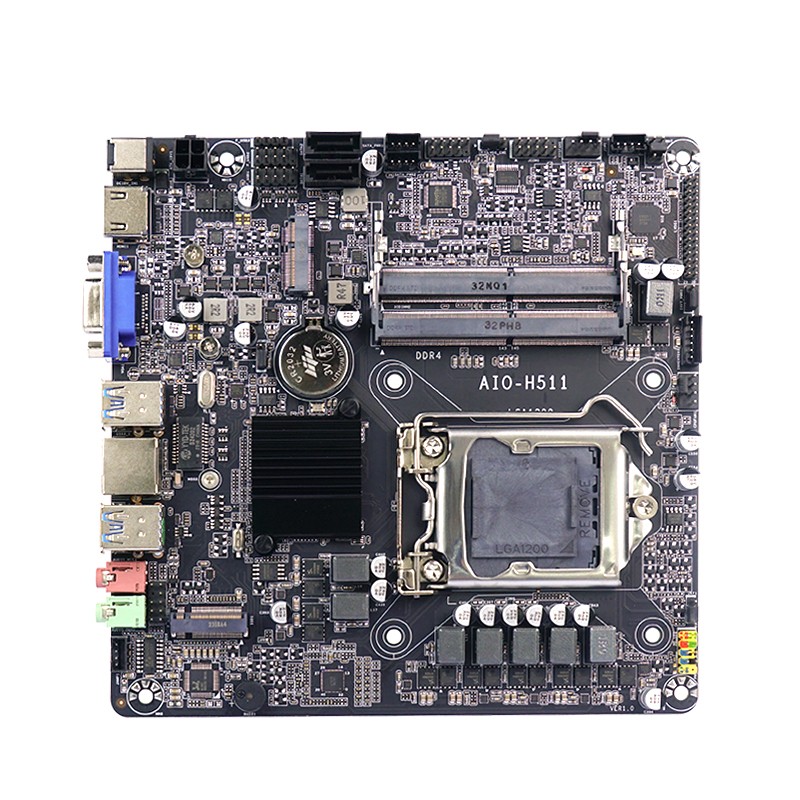

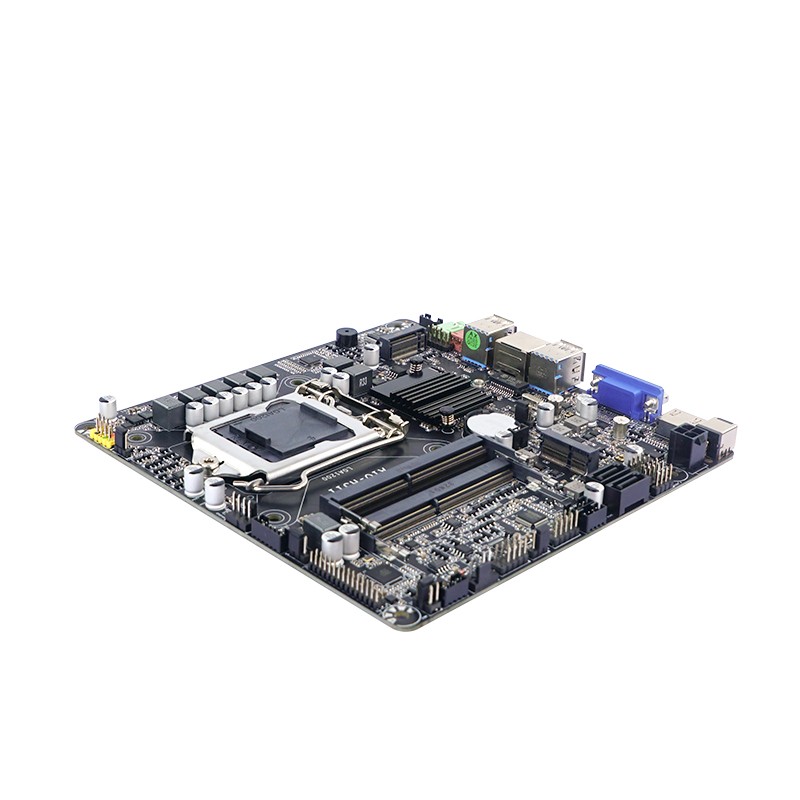

Product Name | AIO H511 All In One Computer Motherboard | |
| CPU | Support Intel desktop 10/11 generation Celeron, Pentium, I3, I5, I7 CPU such as: I5-10600, I5-11500 | |
Chipset | H470 | |
Internal Memory | dual-channel DDR4，11th generation CPU: maximum support of 3200 MHz 2 x 260Pin DDR4 SO-DIMM 64GB | |
Storage Interface | 1 M.2 slot, supporting the M.2 hard disk of the NVME protocol | |

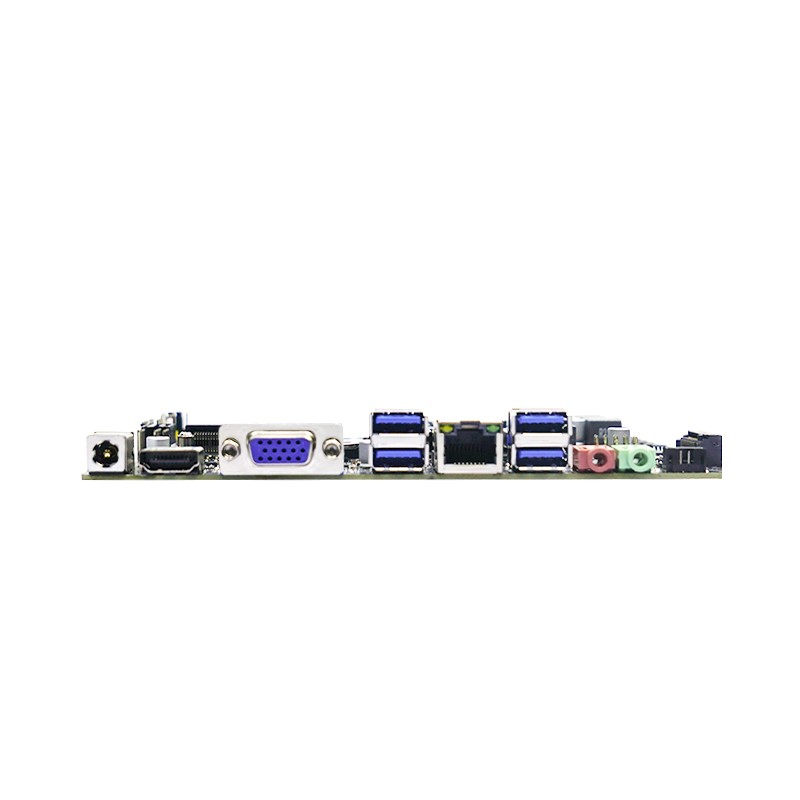

Display Interface | 1*HDMI 1*VGA | |

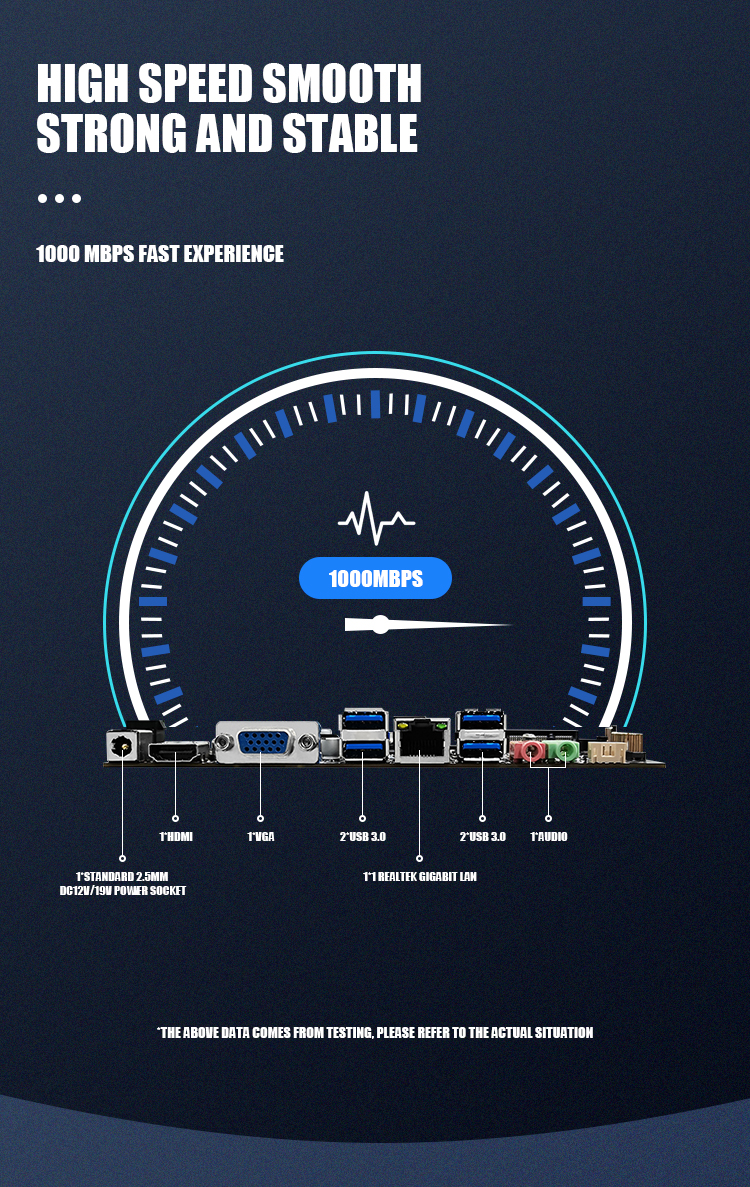

Network | Realtek Gigabit network adapter with 1 RJ45 port | |
WIFI | 1*M.2 WIFI port | |
USB | 5*USB 2.0 | |
Audio | 1*2*5Pin(Mic-in、Line-out) | |
Product Size | 170*170MM DC 12V to 19V Motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
