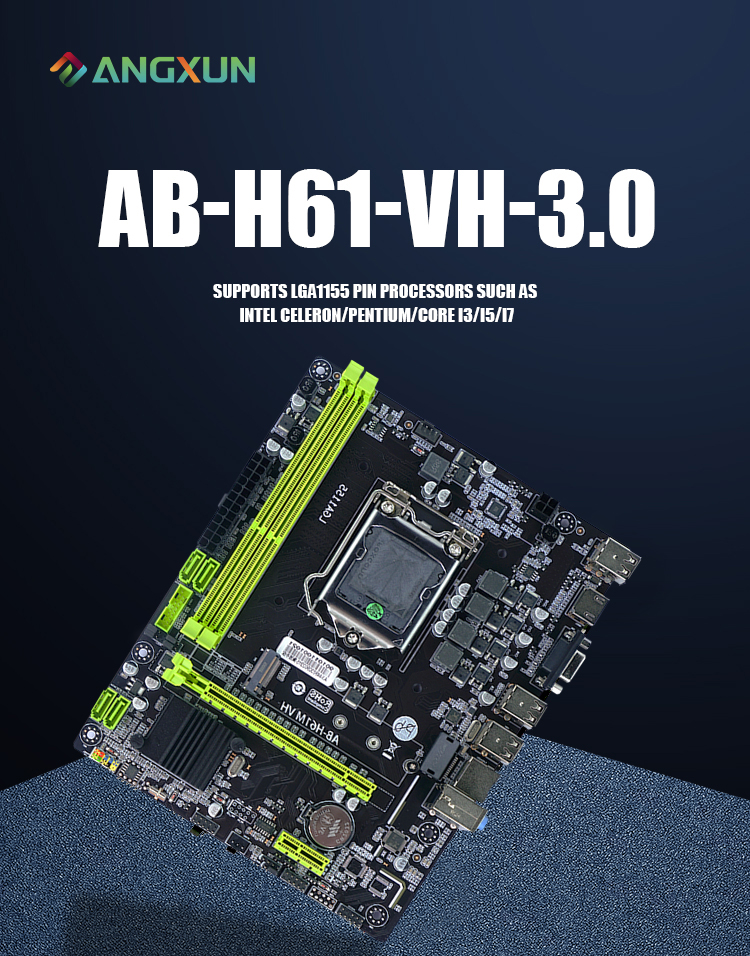

▲Support Intel Celeron Pentium Core I3 I5 I7 and other LGA1155 pin processors
▲Support 4 SATA interfaces 10 USB2.0 interfaces
▲High-speed dual-channel DDR3 memory slot: support 1066 1333 1600MHZ Maximum capacity 16G memory
▲Support 5.1-channel ALC662 chip
▲Support VGA/HDMI display interface
▲Support M.2 SLOT*1 (support SATA protocol)
▲Support RJ45 100M network card chip
▲Support 4-layer PCB baseboard, 4-phase power supply
▲Support PCIE expansion slot*2
▲Support WIN7 WIN10 32/64-bit operating system

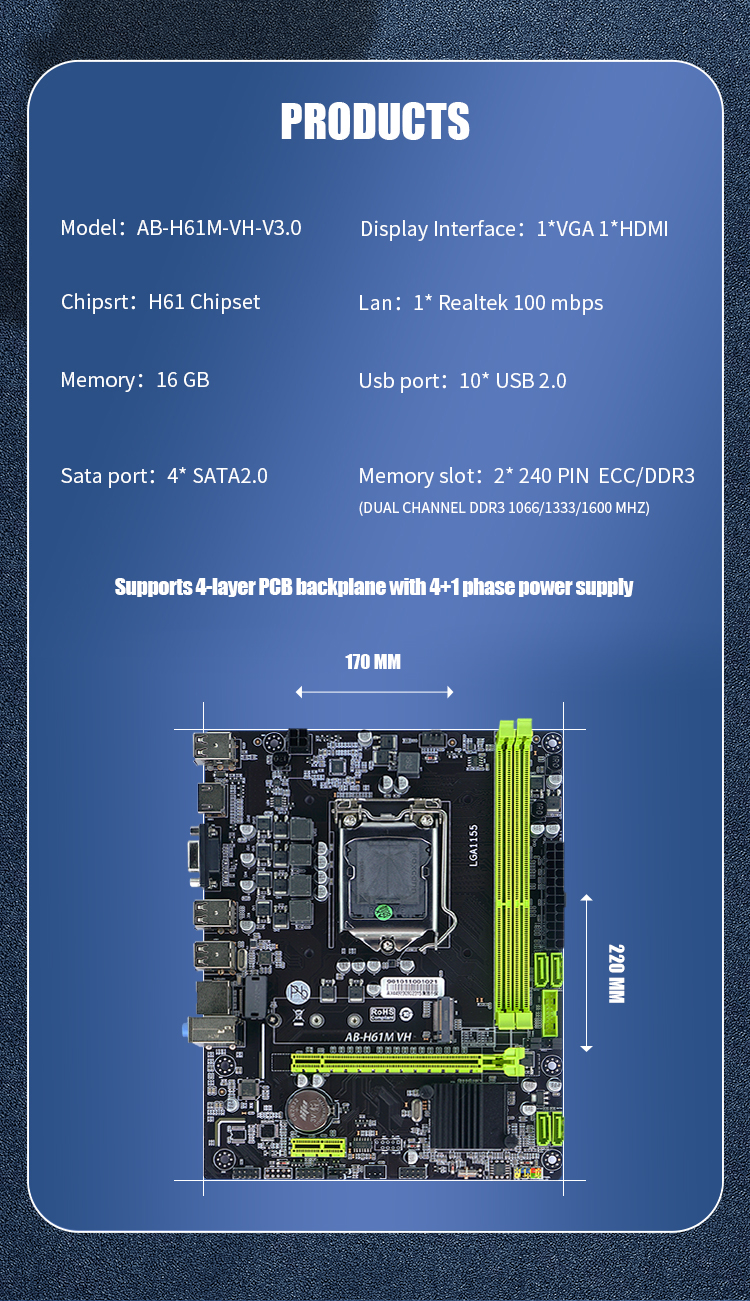

| Product Profile | ||

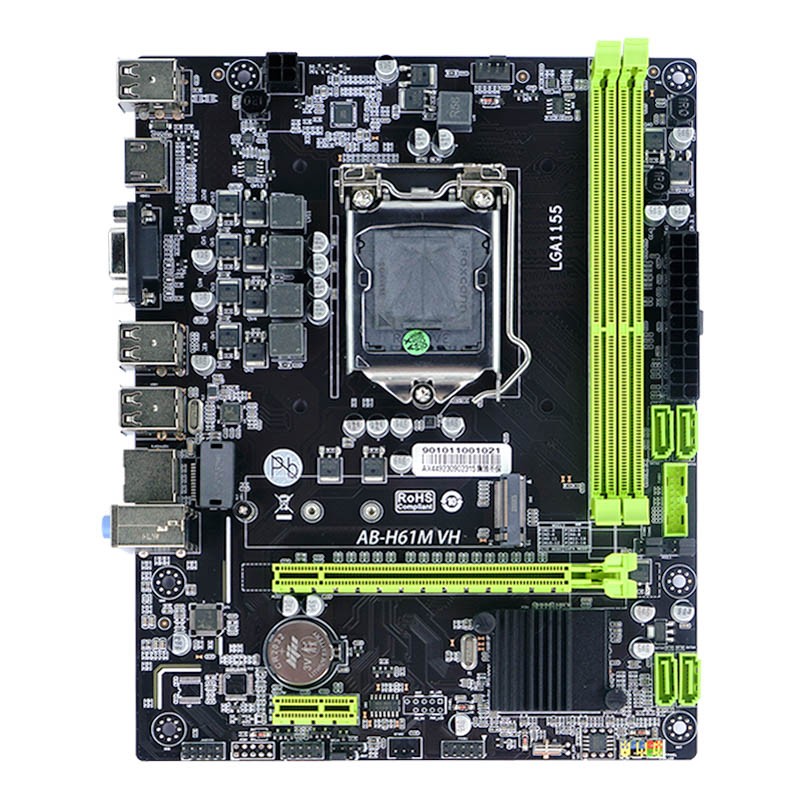

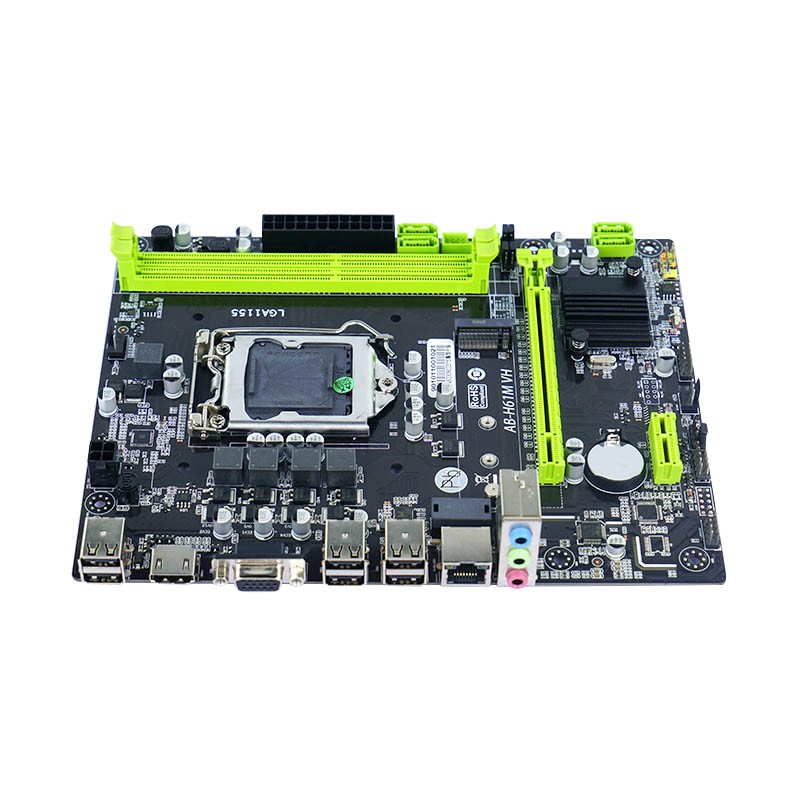

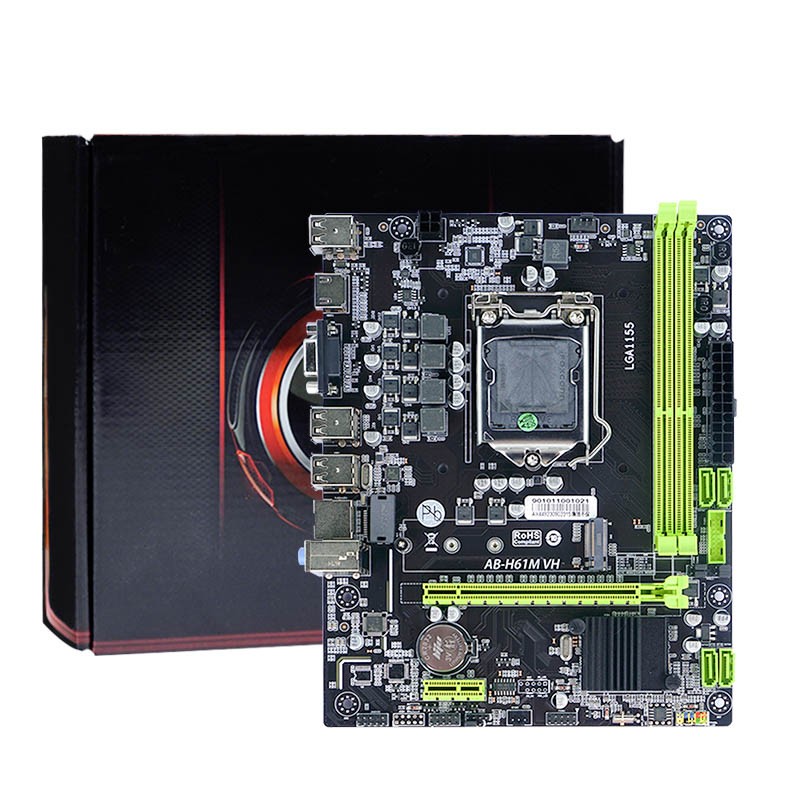

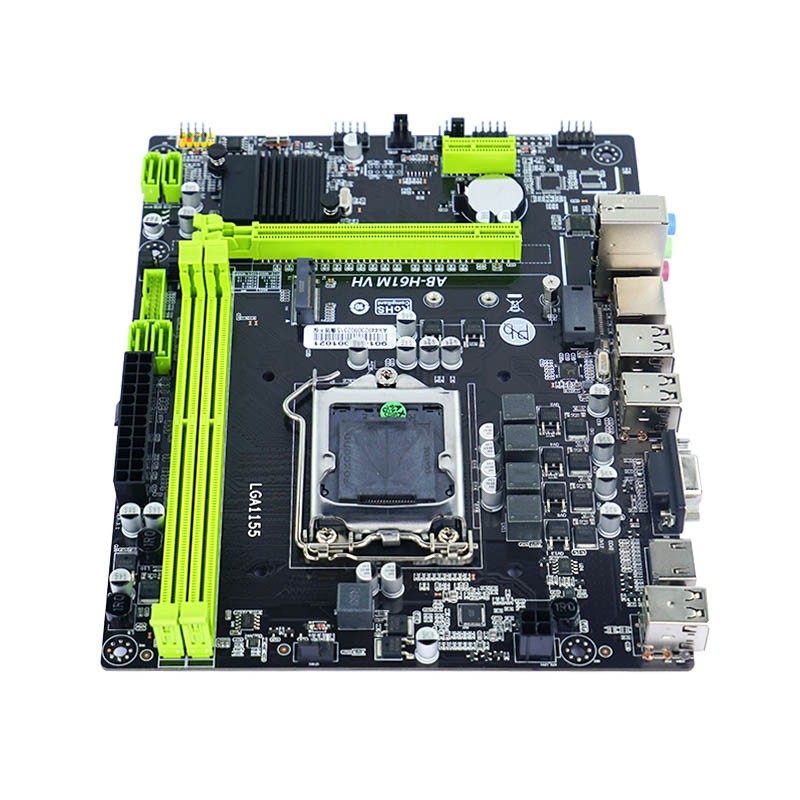

Product Name | AB H61M Computer Motherboard | |
| CPU | Intel Celeron Pentium Core I3 I5 I7 processor LGA1155 pin processors | |
Chipset | H61 | |
Internal Memory | Dual-channel DDR3 1066/1333/1600 MHz 2 x 240 PIN ECC/DDR3 16GB | |
Storage Interface | 1 M.2 interface (supports SATA protocol) | |
Display Interface | 1*HDMI 1*VGA port | |
Network | 1 Realtek network card | |
PCIE Solt | 2 (1 PCIe x16; 1 PCIe x1) | |
USB | 6 USB 2.0 | |
Audio | 1 (Mic-in, Line-out, Line-in) | |
Product Size | 171*220mm | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
