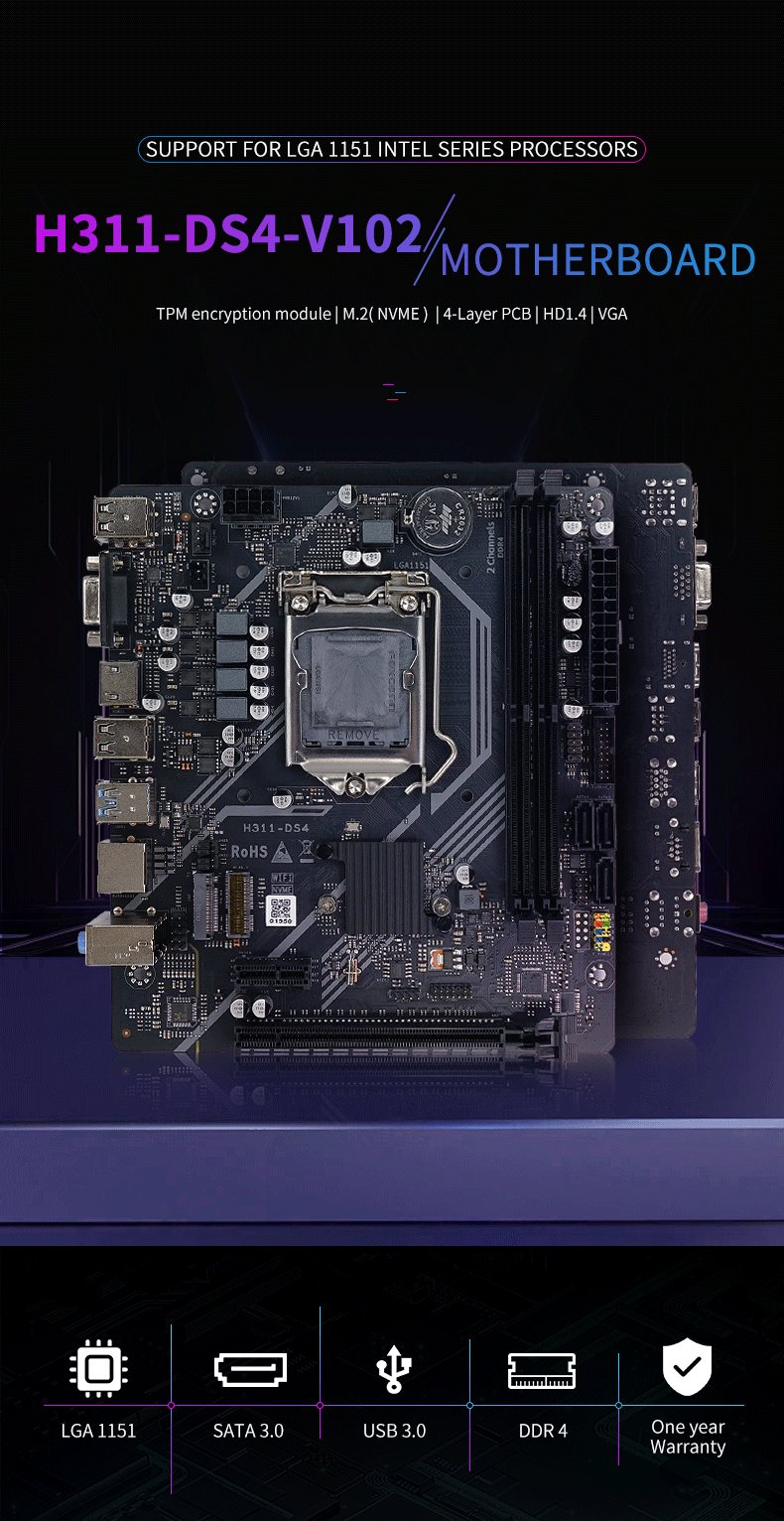

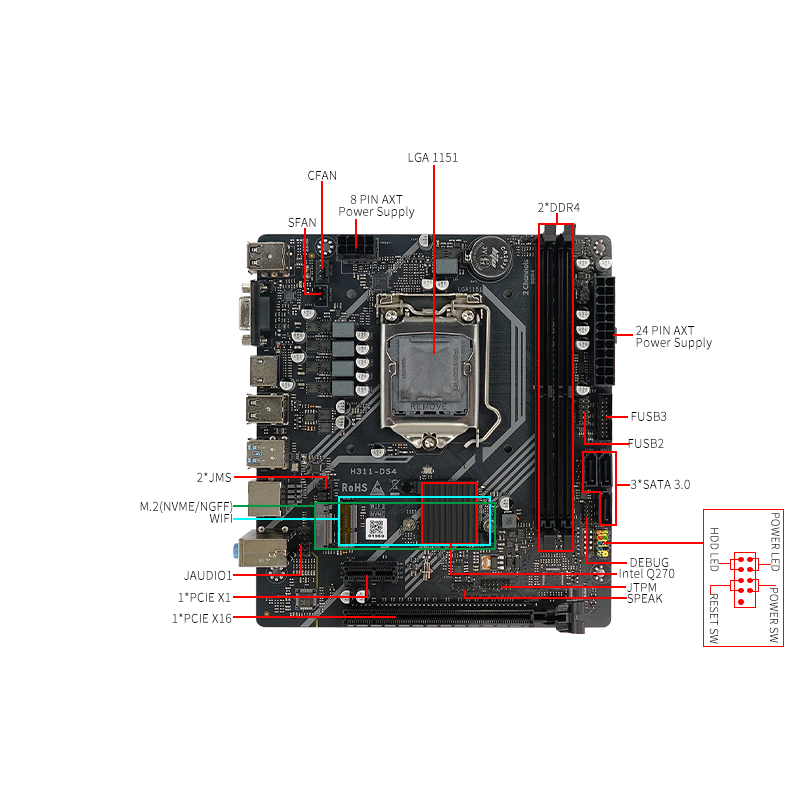

▲Intel LGA 1151 slot
▲Supports 6th/7th/8th/9th generation Intel
processors
▲Supports dual-channel DDR4 DIMM memory
▲3× SATA sockets
▲1x M.2 2280/2260/2242 slot (supports NVME
and NGFF modes)

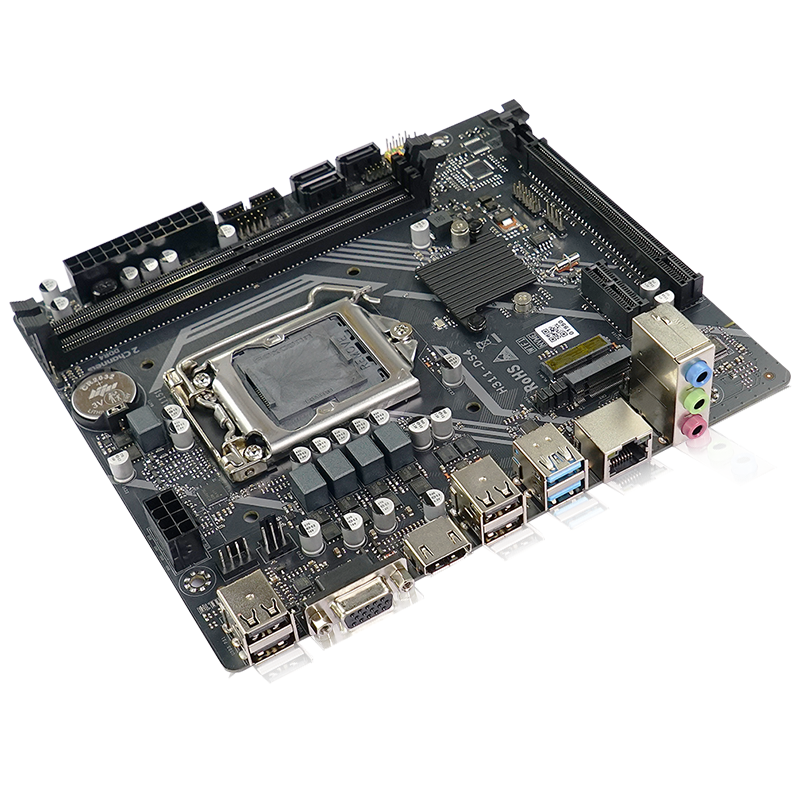

▲Rear interface provides 2xUSB3.0,4xUSB2.0
interfaces
▲Built-in pins can expand 2xUSB2.0, 2xUSB3.0 interfaces
▲1 x HDMI, 1 x VGA
▲1 x Gigabit network card, supports PXE and
network wake-up functions
▲1 x PCIE X16 slot, 1 xPCIE X1 slot
▲Supports 24Pin+8Pin ATX power input
▲Windows 10, Windows 11

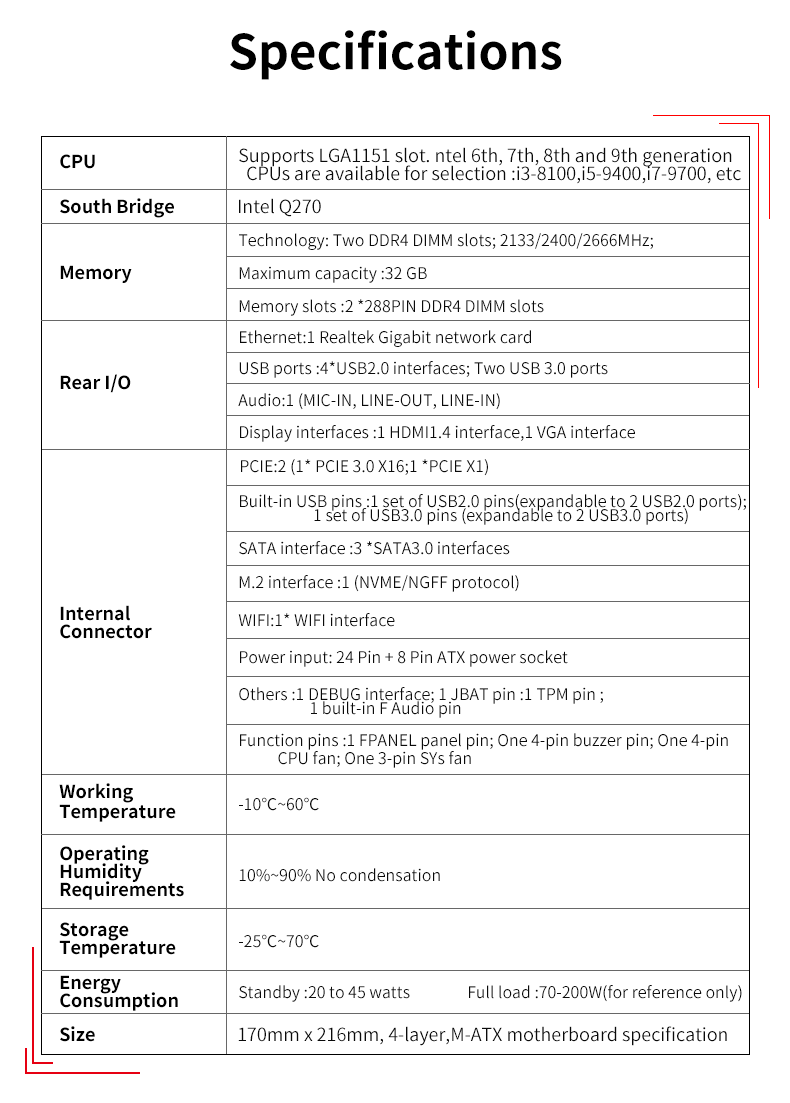

| Product Profile | ||

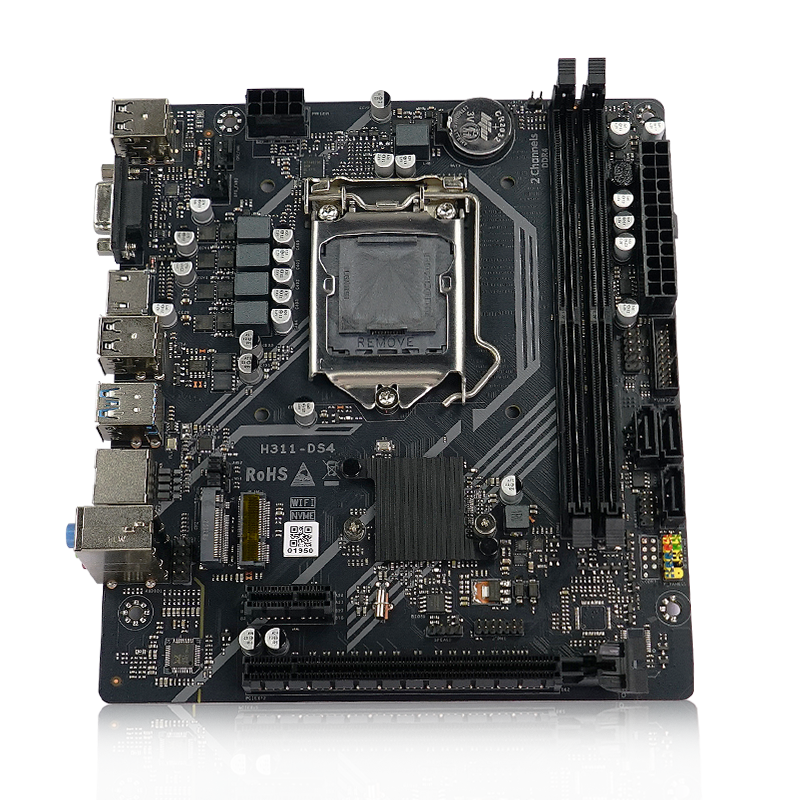

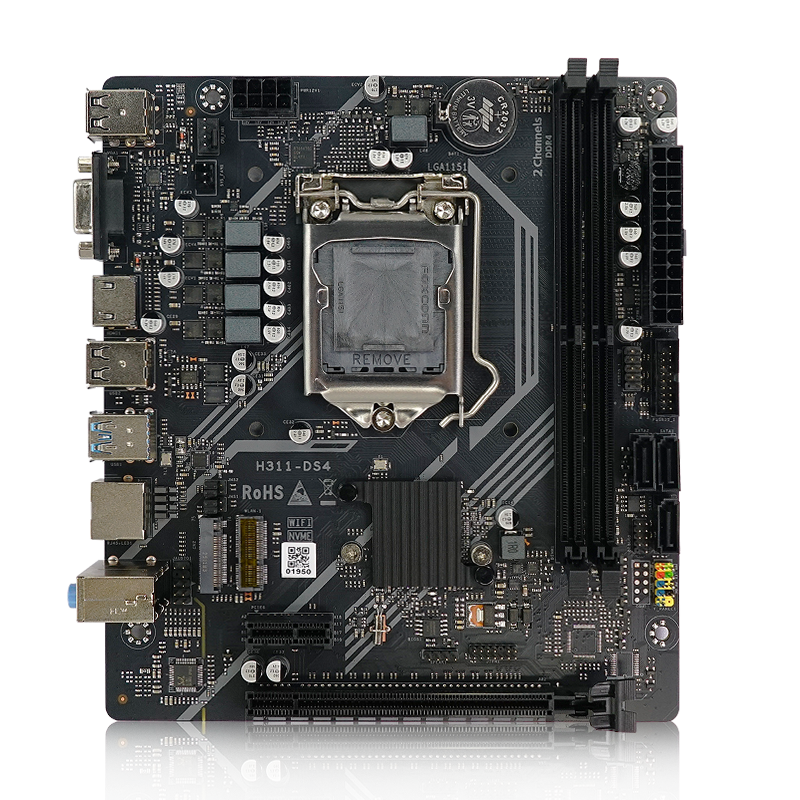

Product Name | H311 DS4 V102 Computer Motherboard | |
| CPU | Supports Intel 6th 7th 8th 9th generation CPU | |
Chipset | Q270 | |
Internal Memory | 2*DDR4 DIMM, 2666 MHz Maximum memory support 32G | |
Storage Interface | 1* M.2 slot ( NVME NGFF protocol ) 3 *SATA 3.0 6Gb/s interface | |
Display Interface | 1*HDMI1.4 1*VGA | |
Network | 1*RJ45 interface 1*WIFI interface | |
PCIE Solt | 1*PCIE 3.0 X16 slot 1*PCIE X1 slot | |
USB | 2*USB3.0 4*USB2.0 | |
Audio | 1 (Mic-in, Line-out, Line-in) | |
Product Size | 170 x 190 mm x 4L motherboard | |

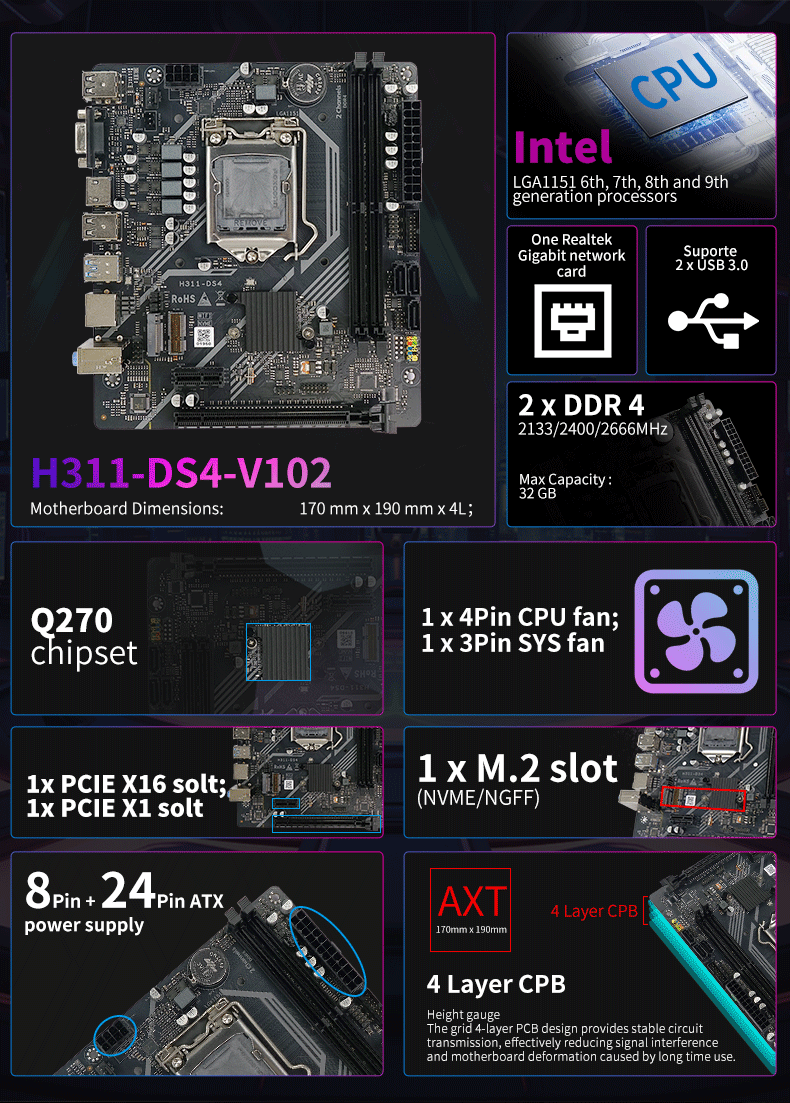

Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
