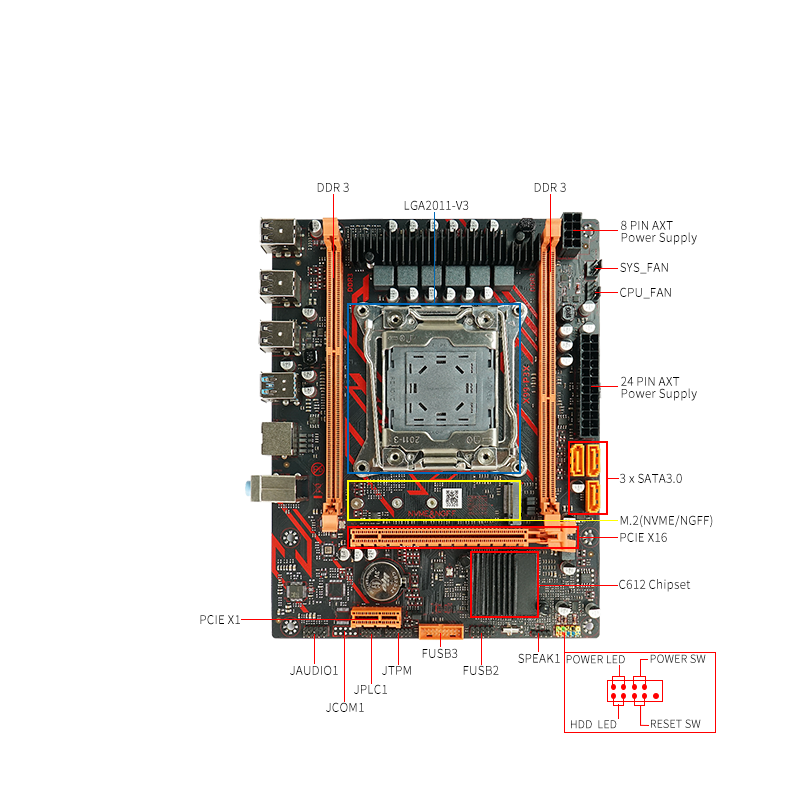

-Support Intel Xeon E5 LGA2011-V3 pin processors
-Supports dual-channel DDR3*2 memory
-1 M.2 (NVME/SATA protocol; hat switch)
-Supports 3* SATA ports
-The rear IO provides 6 USB2.0 ports and 2 USB3.0 ports
-Built-in plug-in can expand 2 USB2.0 ports and 2 USB3.0 ports
-1 x Gigabit network card, support PXE and network wake up function
-Four-layer PCB base plate, 6-phase power supply
-1 * PCIE X16 slot, 1 * PCIE X1 slot
-1*CFAN+1*SFAN
-Support Windows7 Windows10 Windows11

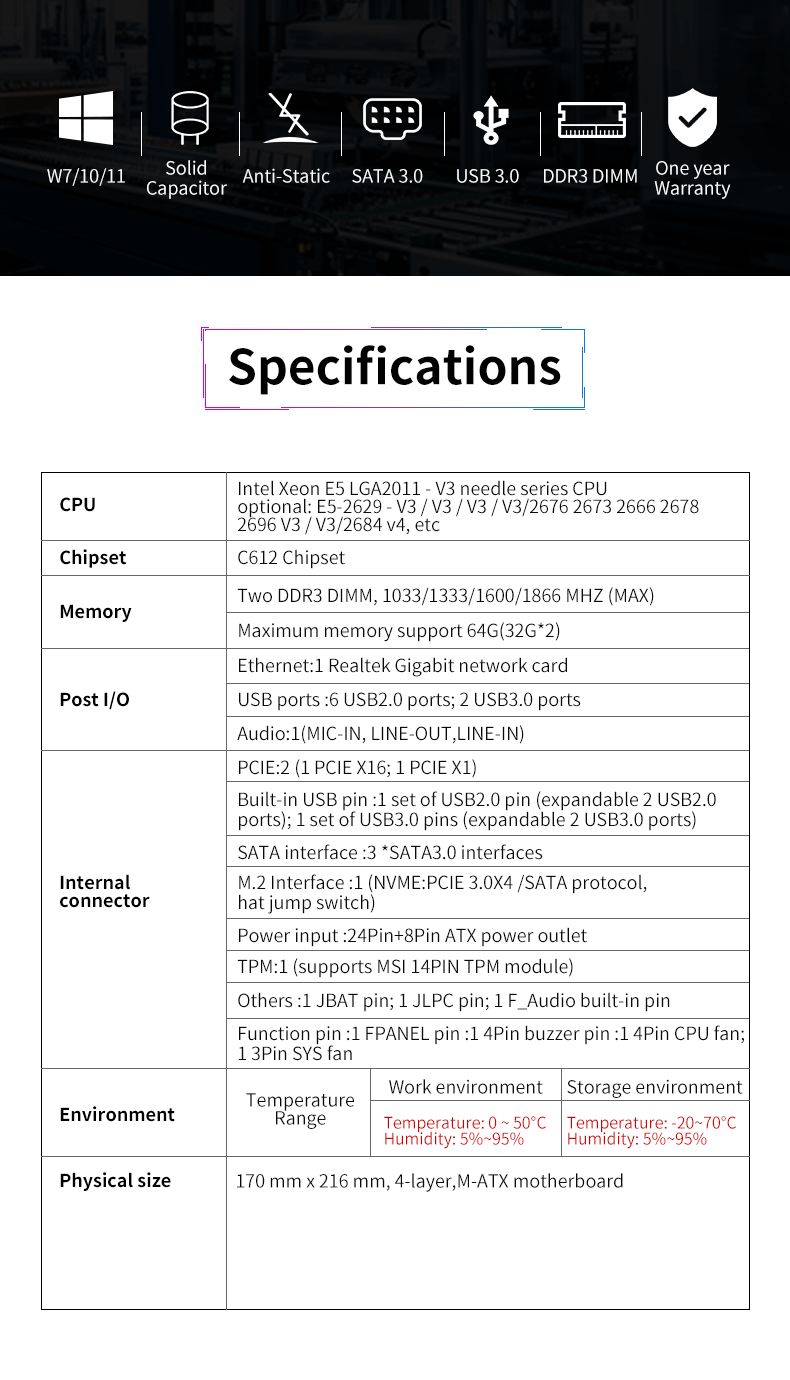

| Product Profile | ||

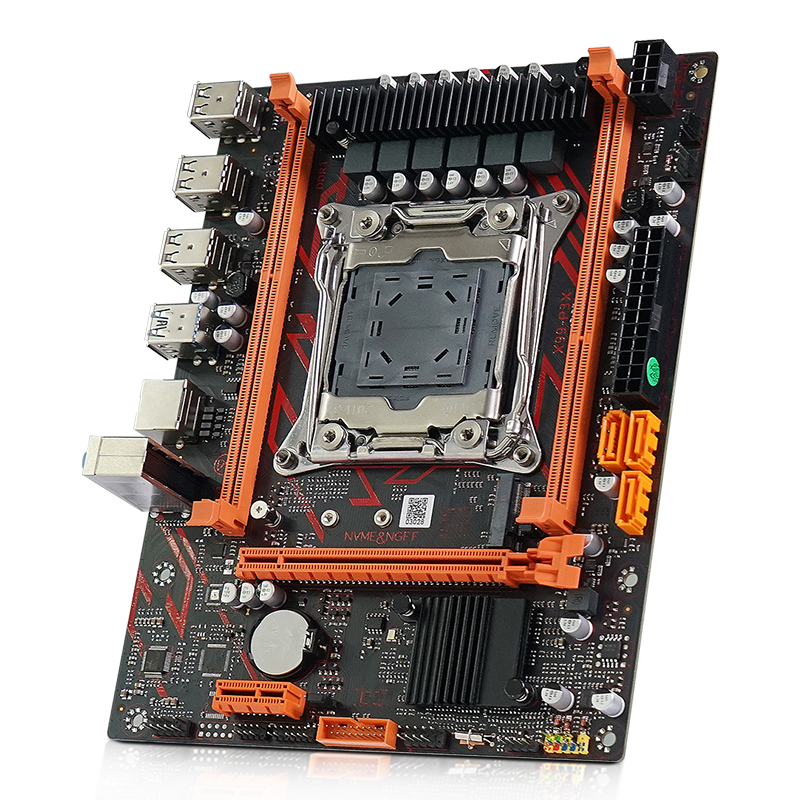

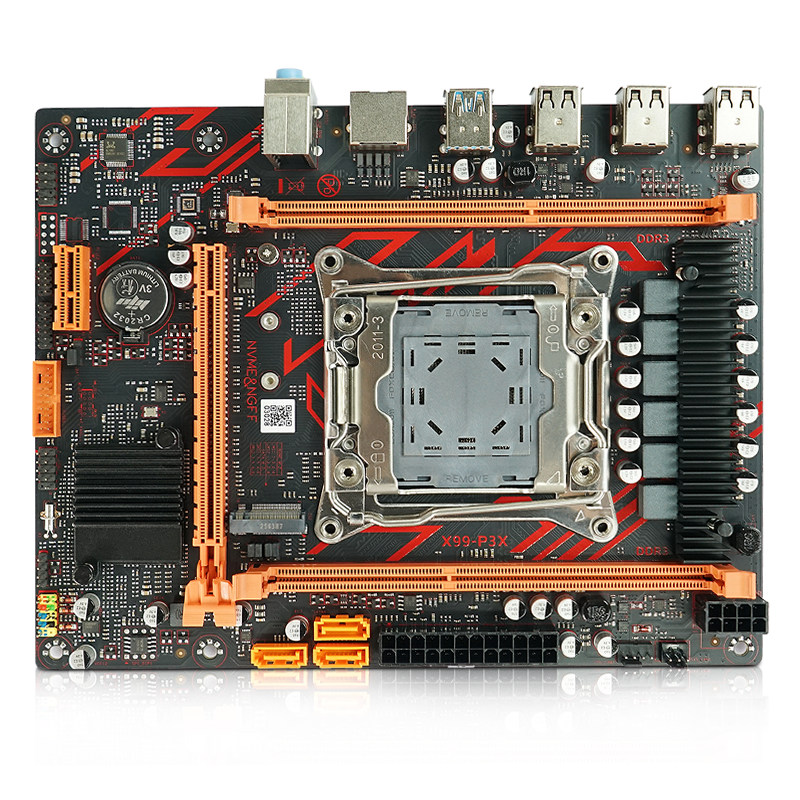

Product Name | X99 P3X Computer Motherboard | |
| CPU | Intel Xeon E5 LGA2011-V3 pin CPU (with DDR3 memory controller) | |
Chipset | C612 | |
Internal Memory | 2*DDR3 DIMM dual-channel 1033 1333 1600 1866MHz (MAX), maximum 64G (32G*2) | |
Storage Interface | 1*M.2 slot (NVME: PCIE 3.0 X4/SATA protocol, jump cap switch); 3*SATA interface (SATA3.0) | |
Display Interface | / | |
Network | 1* RJ45 interface | |
PCIE Solt | PCIE1: PCIE X16 3.0 slots (from CPU) PCIE2: PCIE X1 2.0 slots (from PCH) | |
USB | 6*USB2.0; 2*USB3.0 | |
Audio | 1 (Mic-in, Line-out, Line-in) | |
Product Size | 170 x 216 mm x 4L motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
