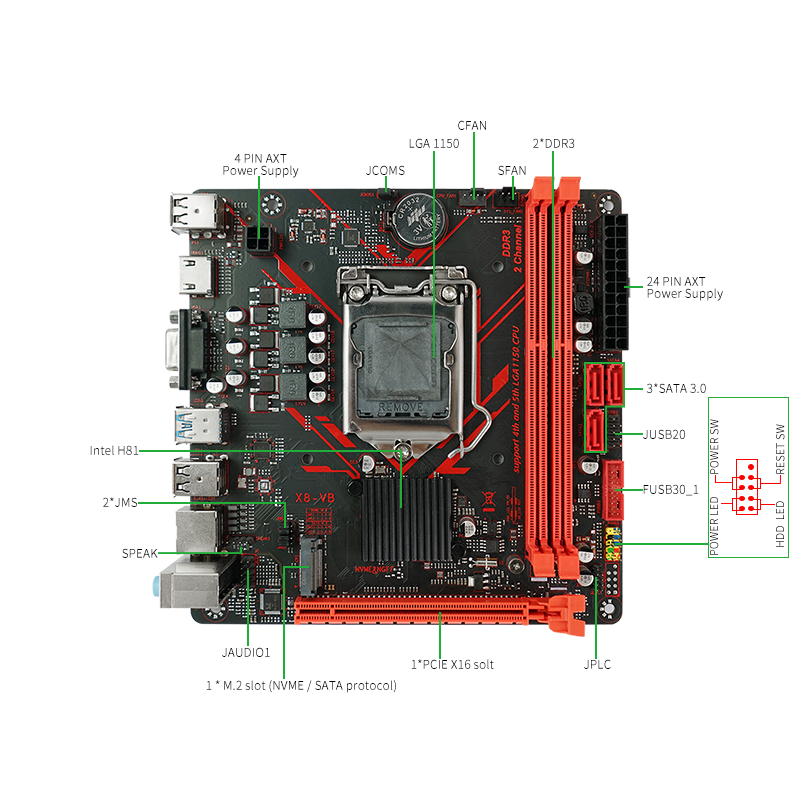

-Supports the LGA1150 slot
-Supports dual-channel DDR3 DIMM memory
-3 x SATA sockets, 1x M.2 slot (NVME & NGFF mode)

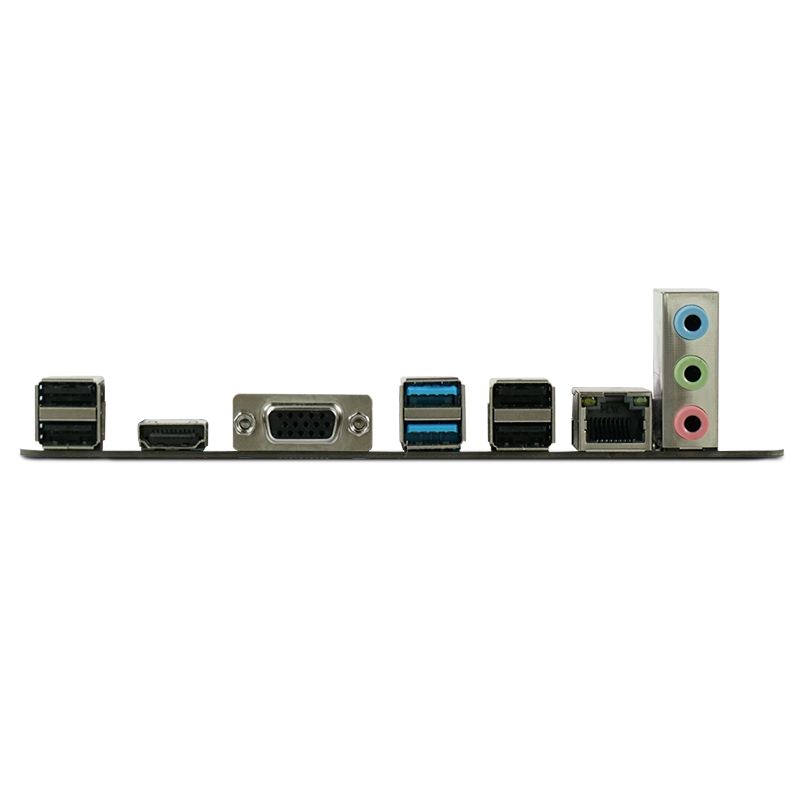

-The rear IO provides 2xUSB3.0 and 4xUSB2.0
-The front pin can be expanded to 4 USB2.0 ports
-1x JLPC 1 x SPEAK 1 x JCMOS
-1 x Gigabit network card support PXE and network wake up function
-1 PCIE x16 full length slot
-Supports 24Pin+4Pin ATX power input
-Windows 7 Windows 10

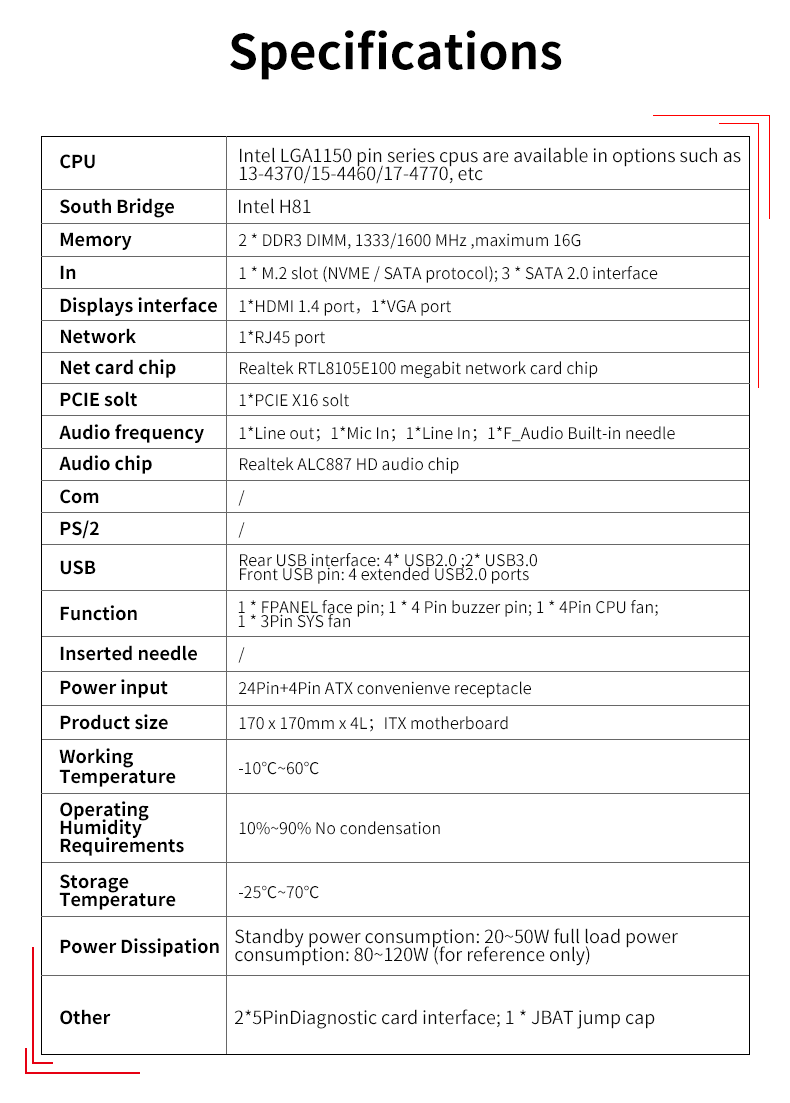

| Product Profile | ||

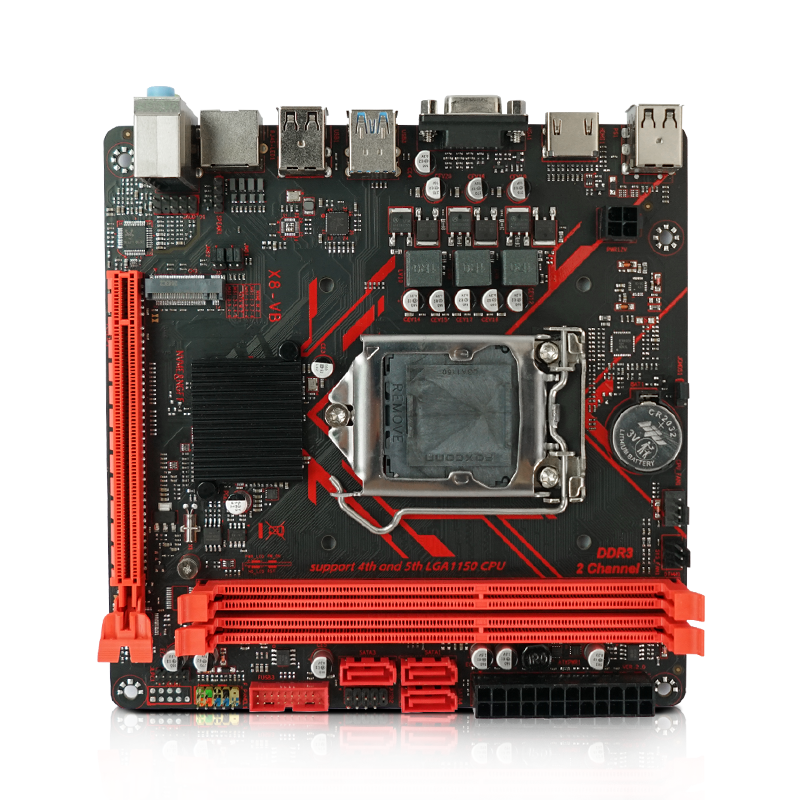

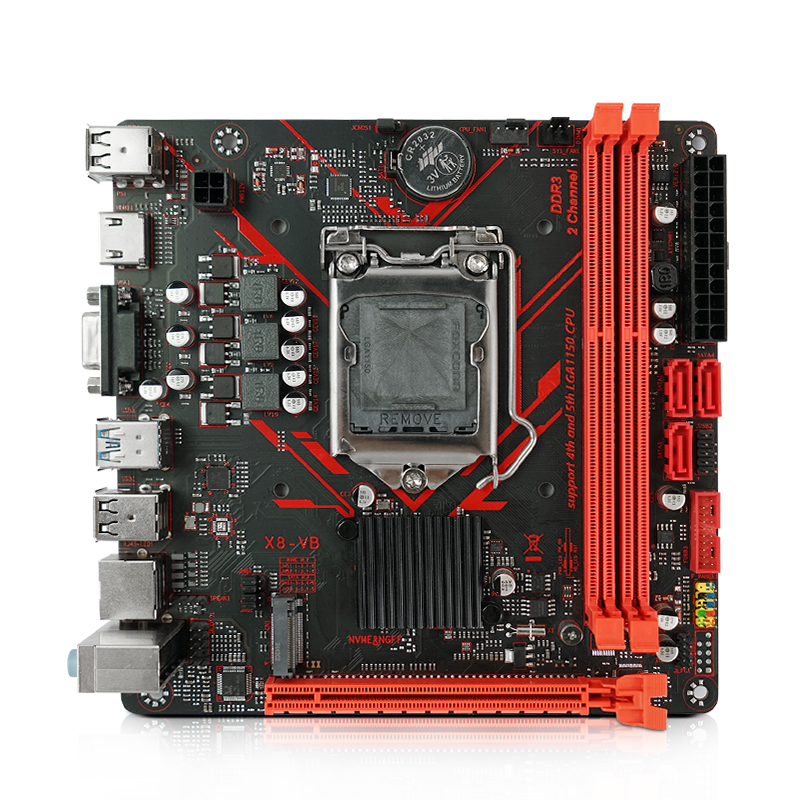

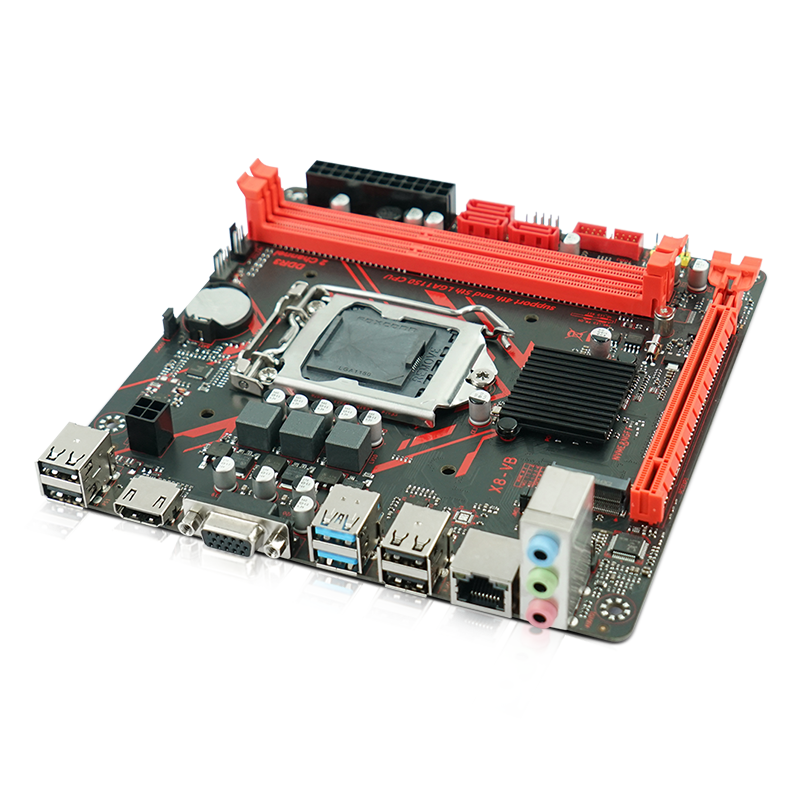

Product Name | X8 VB Computer Motherboard | |
| CPU | Supports LGA1150 plug Intel Xeon E3 v3 Intel Core i7 i5 i3 processors (4th generation) | |
Chipset | H81 | |
Internal Memory | Dual-channel 2*240Pin-DDR3 DIMM support up to 16GB memory DDR3 1600 1333MHz | |
Storage Interface | 1* M.2 slot (NVME & NGFF protocol) | |
Display Interface | 1*HDMI1.4 1*VGA | |
Network | 1* (RJ45+LED) interface (Realtek 1Gb network card chip) | |
PCIE Solt | PCIE slot 1*PCIE X16 slot 1*PCIE X1 slot | |
USB | 2*USB3.0 4*USB2.0 | |
Audio | 1 (Mic-in, Line-out, Line-in) | |
Product Size | 170 x 170 mm x 4L motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
