▲Supports Intel Core i7 i5 i3 LGA1200 series
processors
▲Support 4 SATA_3.0 interfaces
▲Support 4 USB3.0,6 USB2.0
▲Support DDR4 memory,up to 64GB 3200MHz ▲Support 1 Audio
▲Support 1 serial port,only support RS232 mode
▲Support 1 RJ45 Gigabit LAN interface ▲Support M.2 KEYE
▲Support VGA/HDMI display interface,and support simultaneous dual display
▲Support Win10,Win11 32 64 bit operating system
| Product Profile | ||

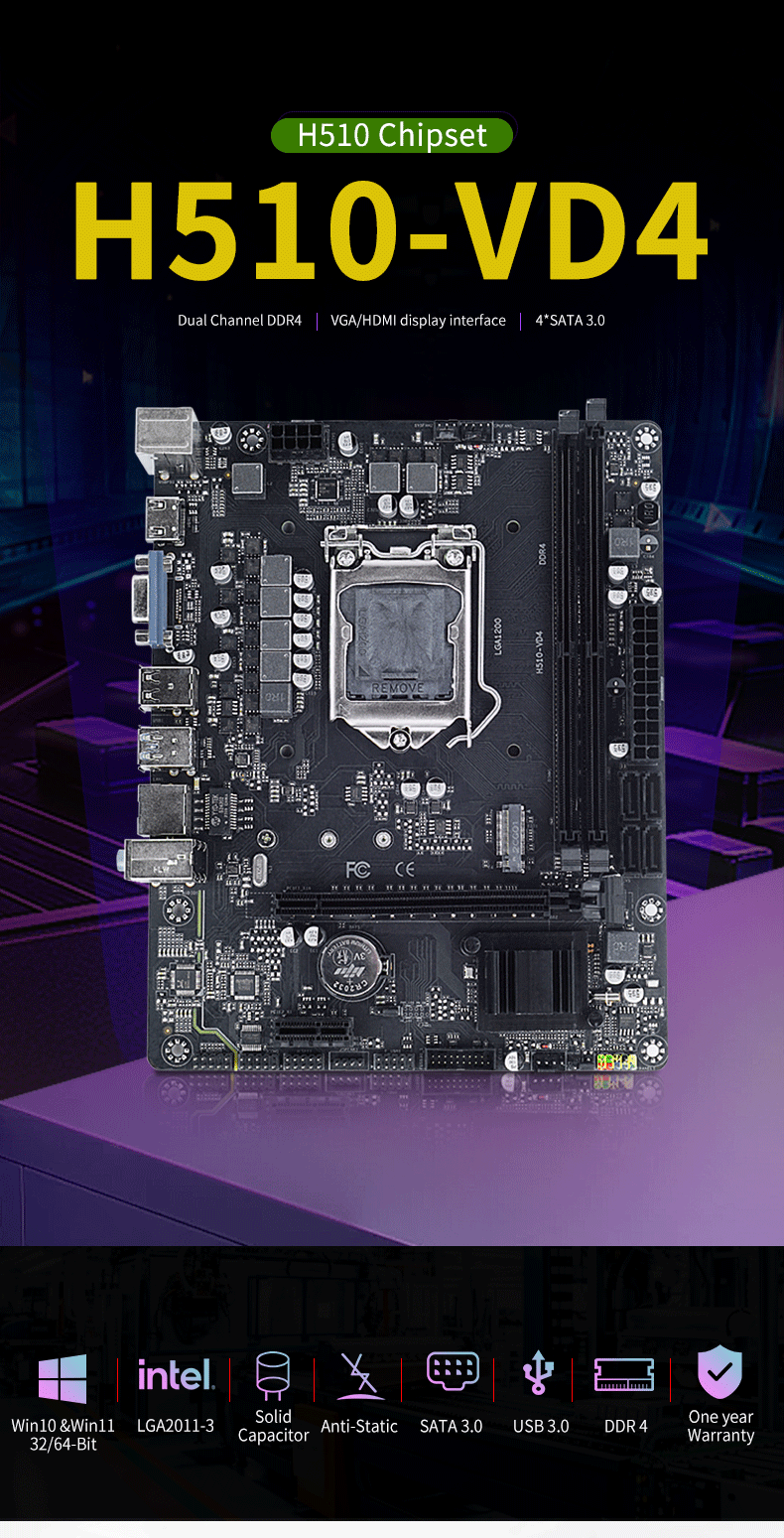

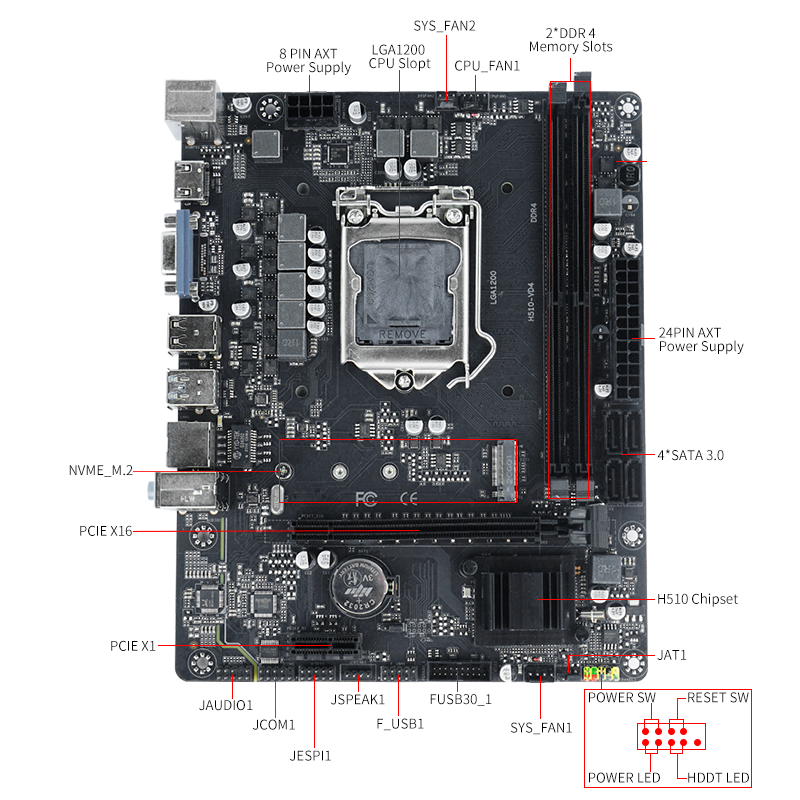

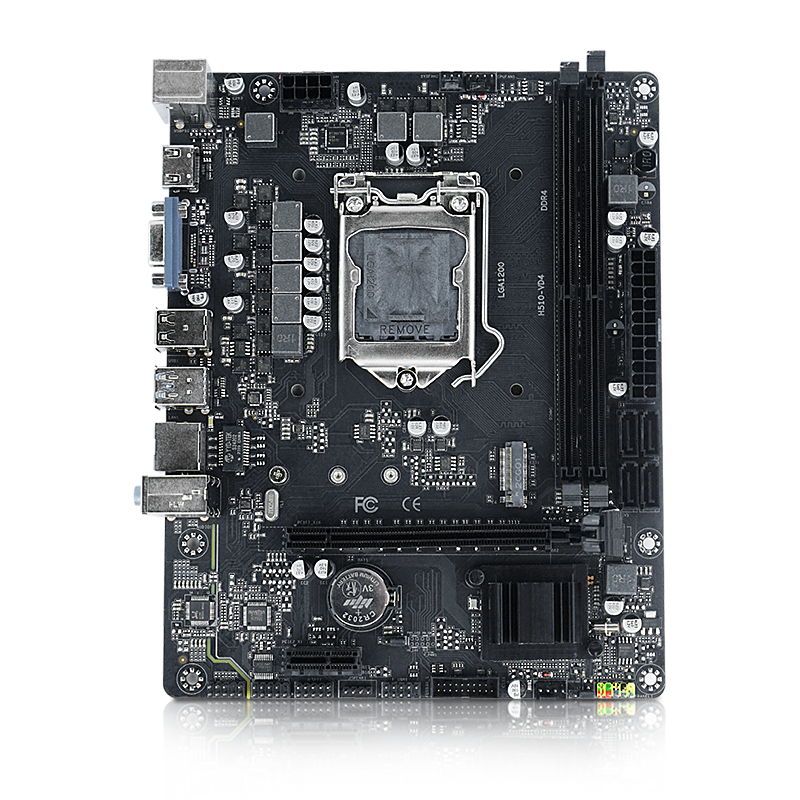

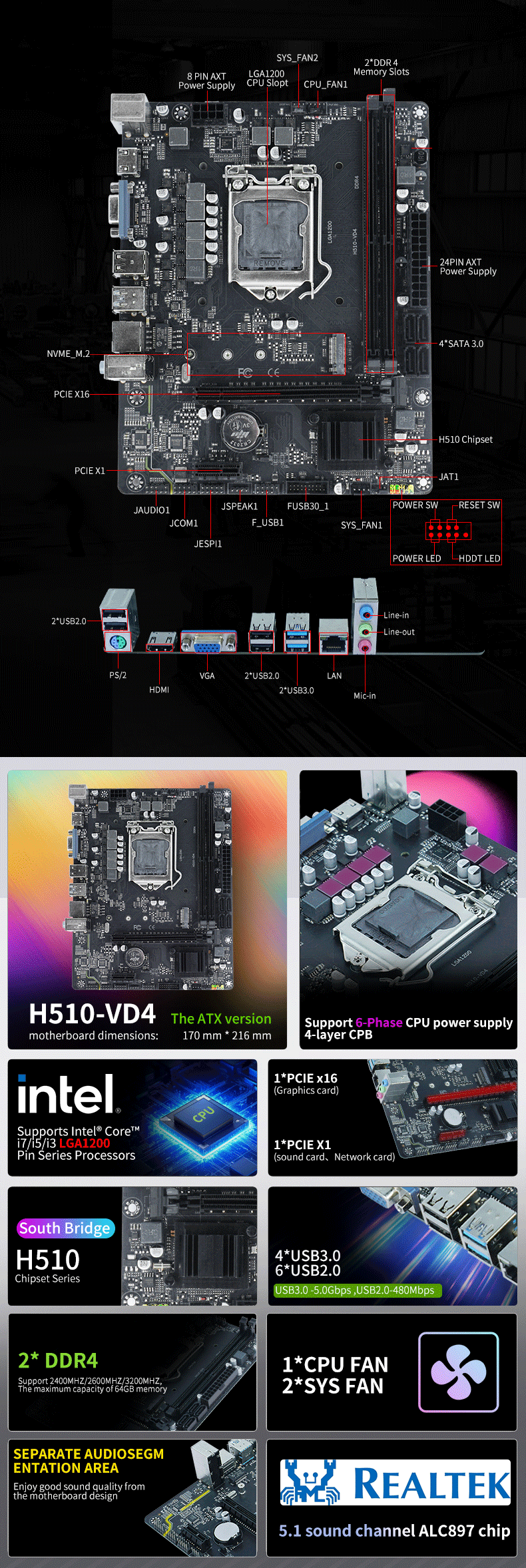

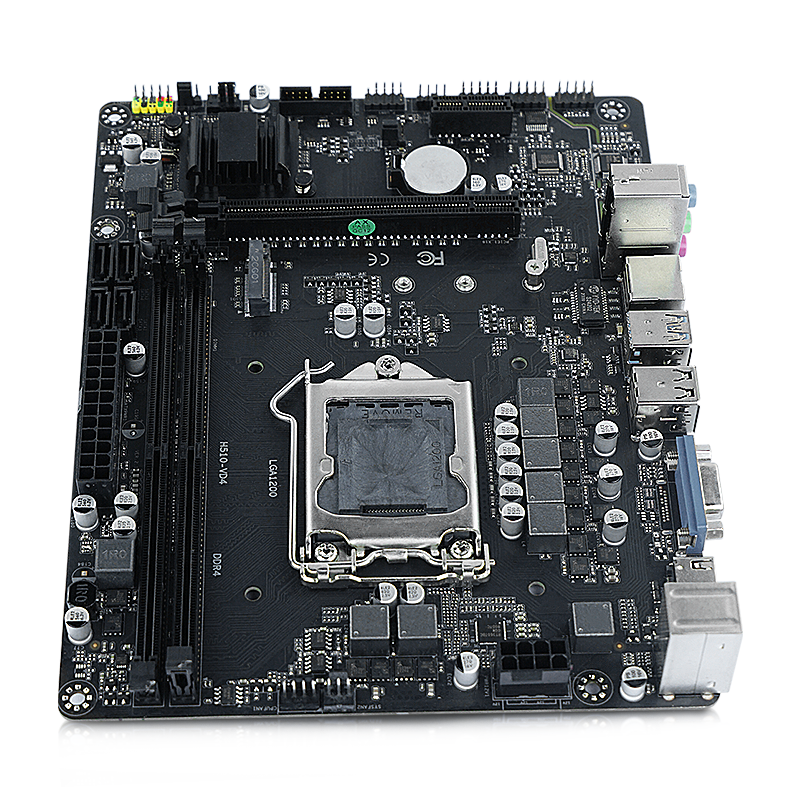

Product Name | H510 VD4 Computer Motherboard | |
| CPU | Support Intel 10th 11th generation Celeron Pentium I3 I5 I7 series processors | |
Chipset | H510 | |
Internal Memory | Dual Channel DDR4 3200MHz 2*288 PIN DDR4 64gb | |
Storage Interface | 1 full-length M.2 KEY slot supports M.2 hard drives | |
Display Interface | 1*VGA 1*HDMI | |
Network | 1 Realtek Gigabit Network Card | |
PCIE Solt | 2（1*PCIe X16,1*PCle X1) | |
USB | 2* USB 2.0,2*USB3.0 | |
Audio | 1*(Mic-in,Line-ou,Line-in) | |
Product Size | 170 mm x 216 mm | |

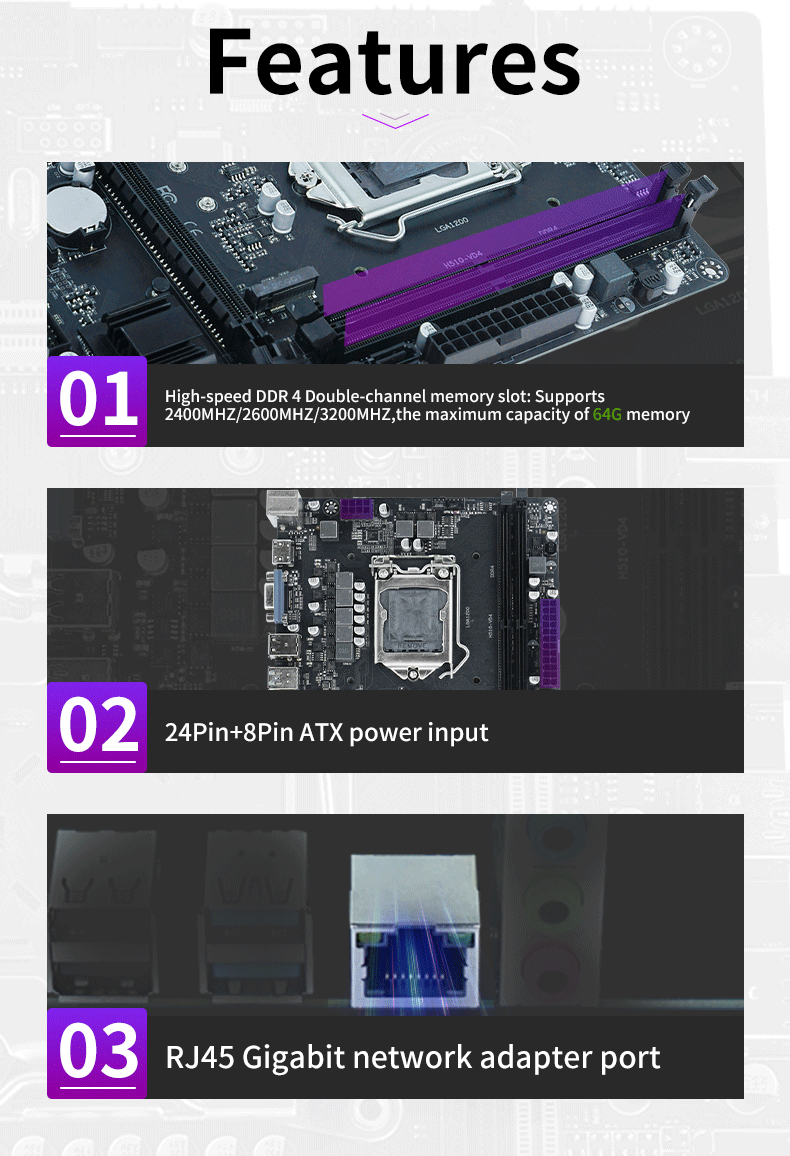

Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
