▲Support for LGA 1700 Intel Core i9 i7 i5 i3 Pentium series processors
▲Support for VGA HDMI synchronization and dual display
▲Support 1 M.2 (NVME SATA protocol)
▲The 3 SATA interfaces are supported
▲High speed DDR 4 dual channel memory slot support 2133 2400 2666 3000 3200 MHz,with a maximum capacity of 64G
▲Supports 4 USB3.0 4 USB2.0
▲Support 1 serial port
▲RJ 45 Gigabit network card interface

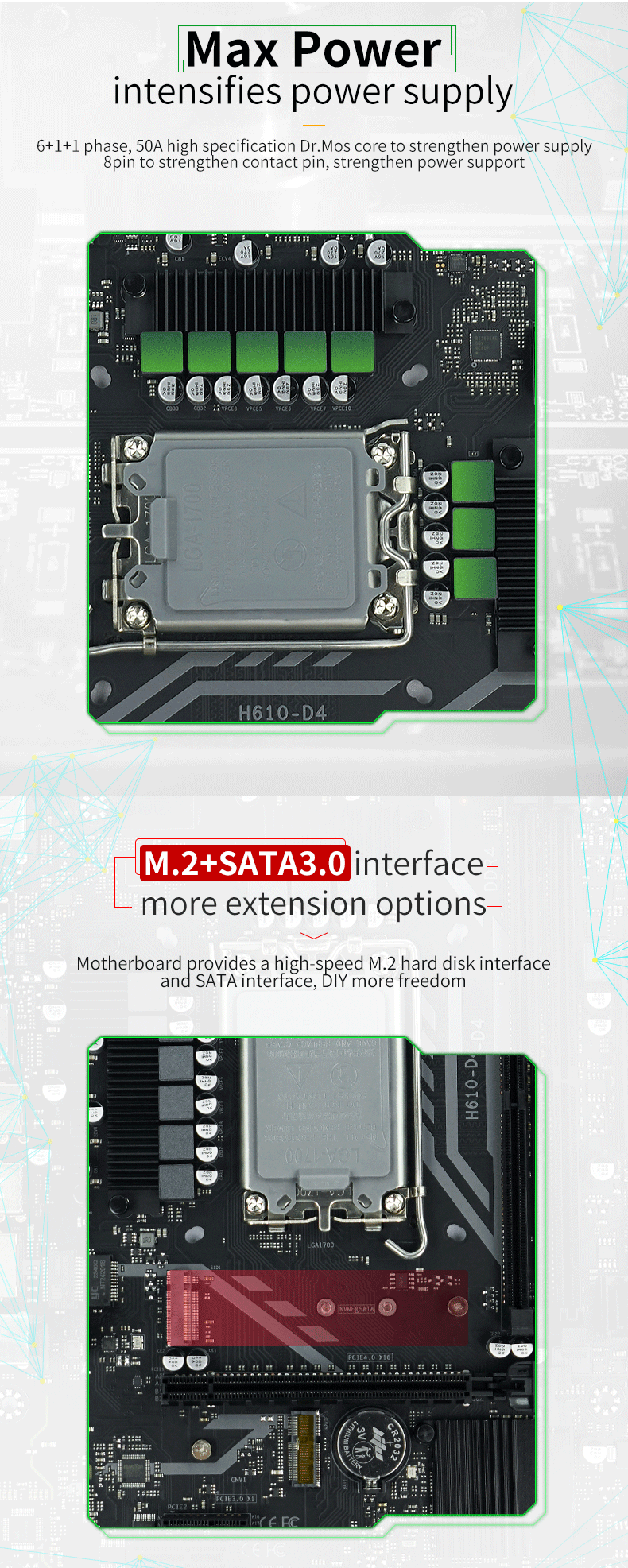

▲Support 6 + 1 + 1 phase CPU power supply,6 layer PCB
| Product Profile | ||

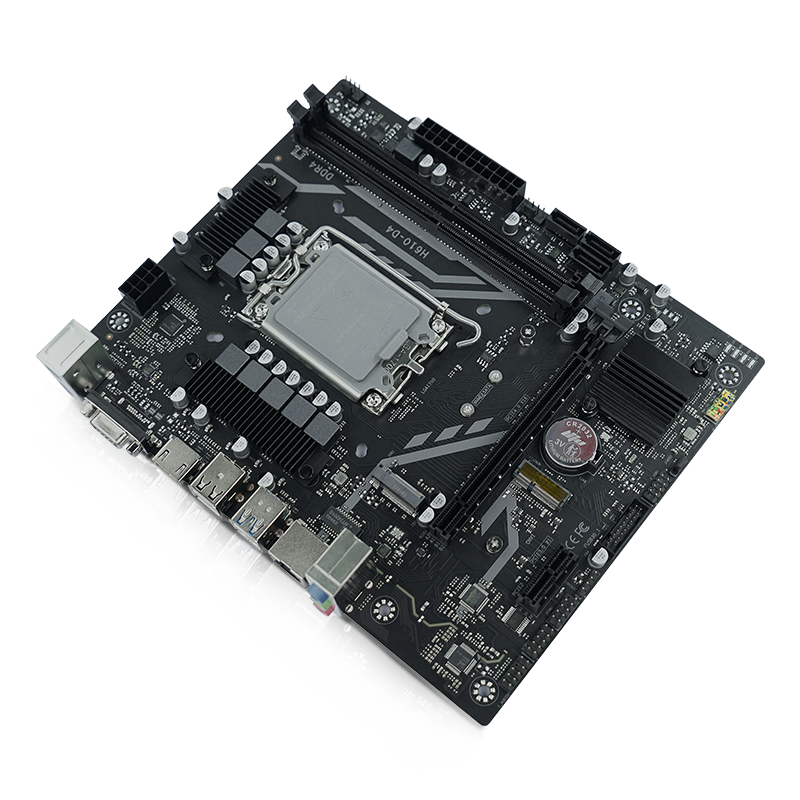

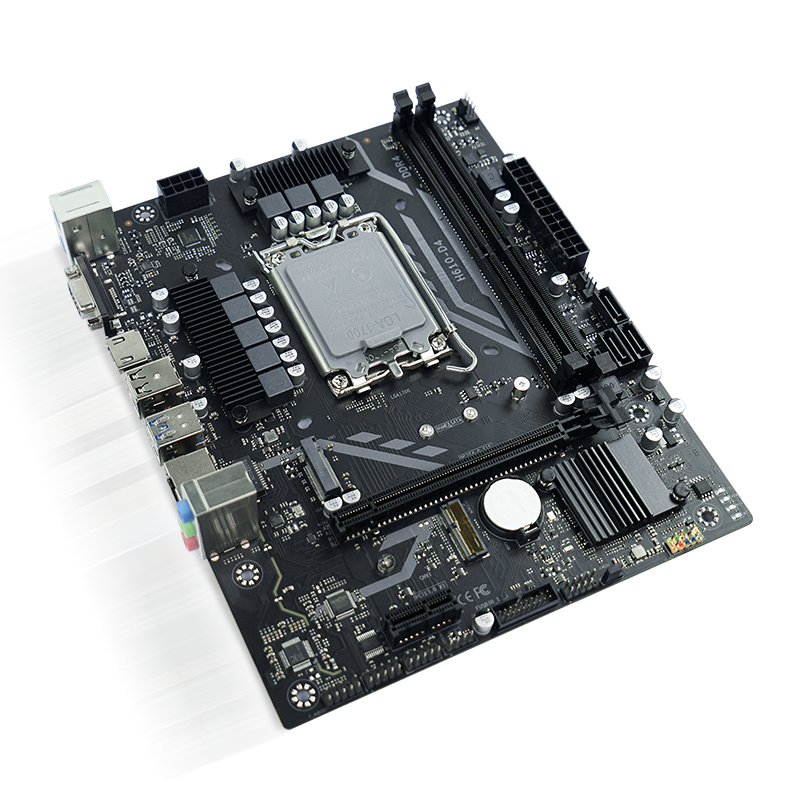

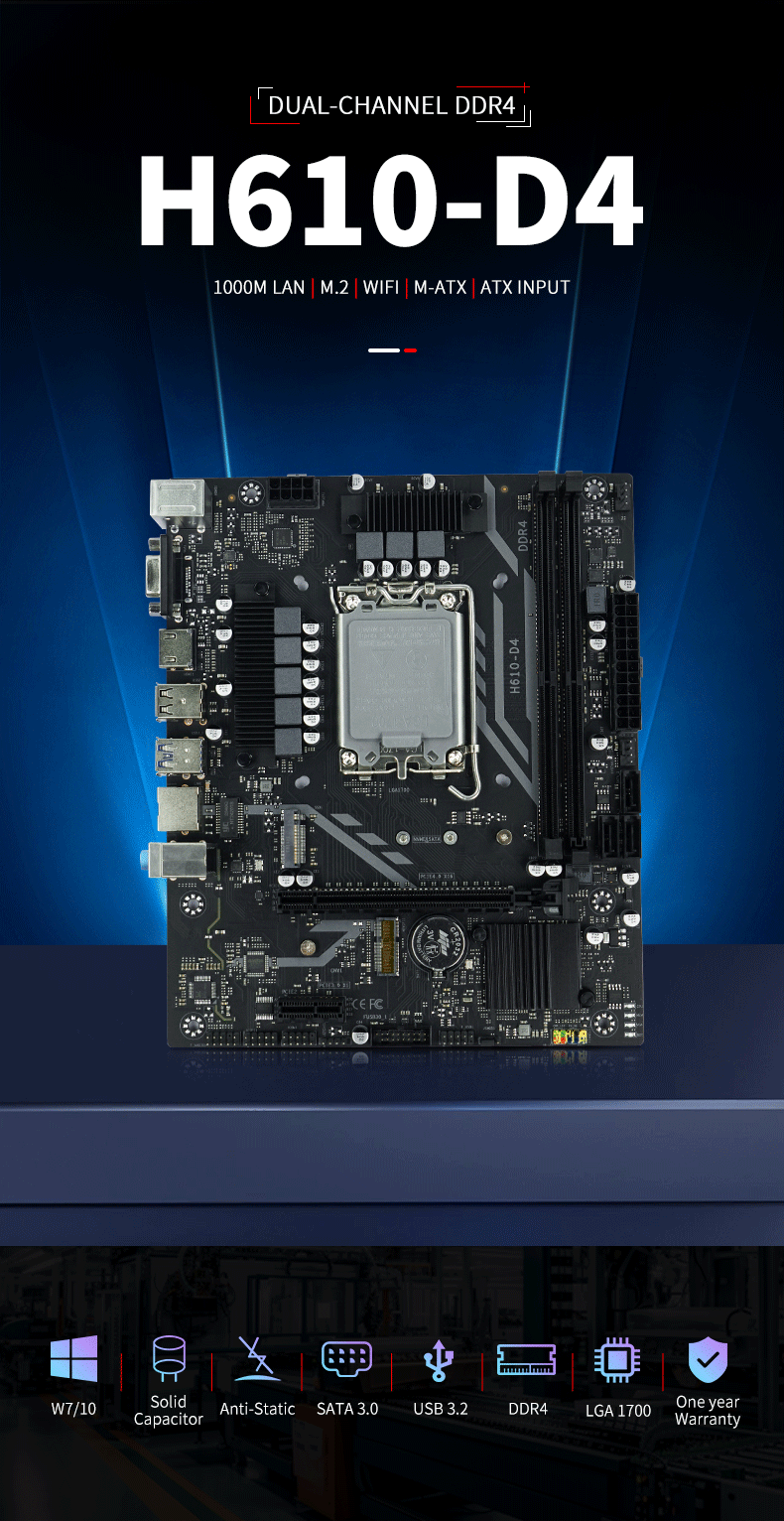

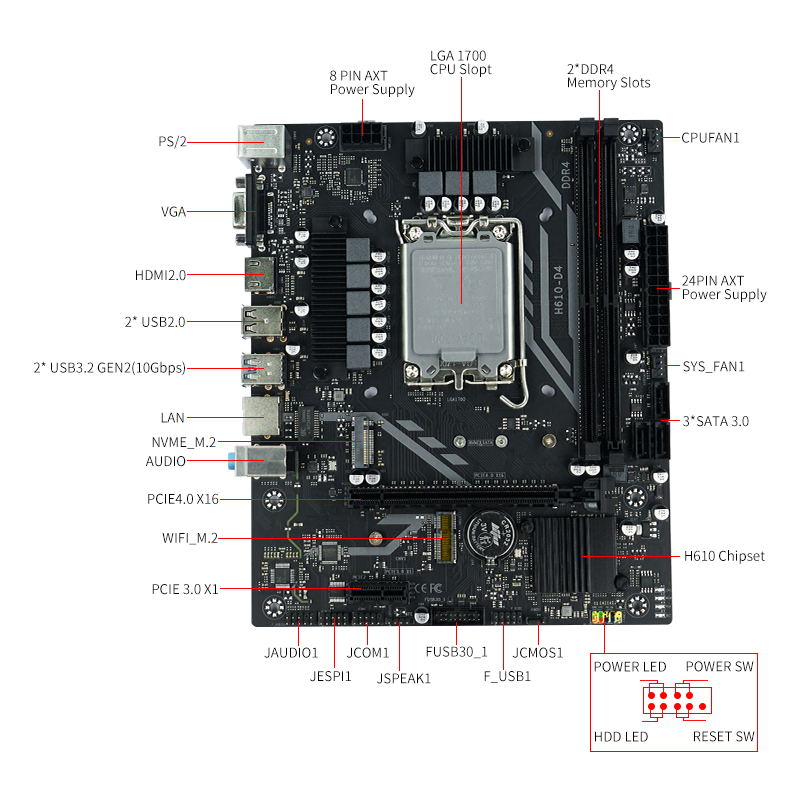

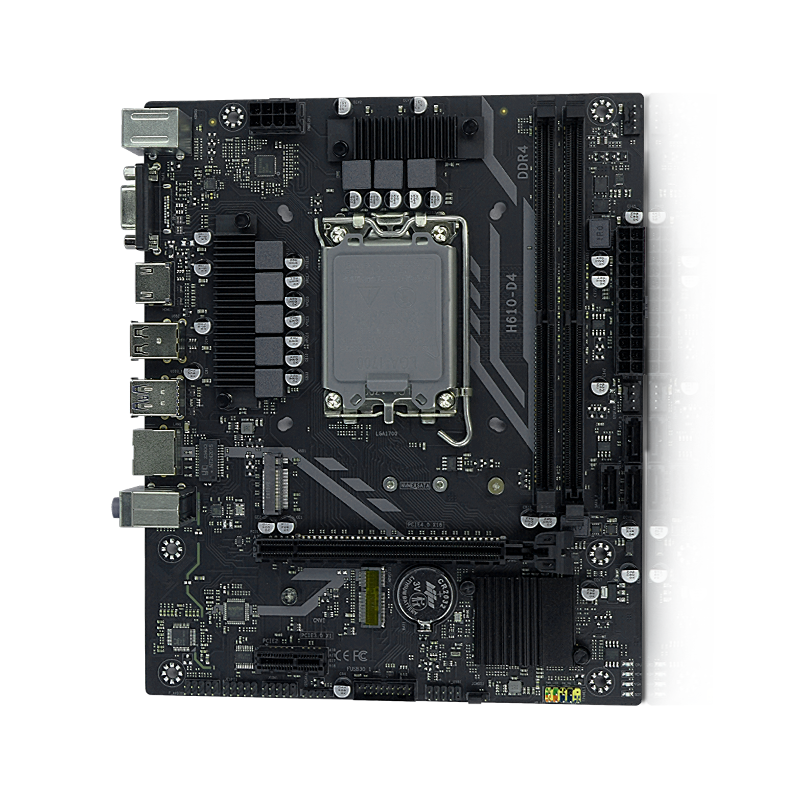

Product Name | H610 D4 Computer Motherboard | |
| CPU | Intel Core 12 13 14 th I9 I7 I5 I3 Pentium LGA 1700 pin series processor | |
Chipset | H610 | |
Internal Memory | Dual-channel DDR4 2133 2400 2666 3000 3200 MHz(MAX),2*288 PIN DDR4 64GB | |
Storage Interface | 1* (PCIe GEN3 X4/SATA3.0 protocol) | |
Display Interface | 1*VGA 1*HDMI | |
Network | 1 Realtek Gigabit Network Card | |
PCIE Solt | 2（1*PCIe X16 4.0,1*PCle X1 3.0) | |
USB | 2* USB 2.0,2*USB3.2 GEN2(10Gbps) | |
Audio | 1*(Mic-in,Line-ou,Line-in) | |
Product Size | 218 mm x 180 mm | |
.
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
