▲Supports the LGA 1700 Intel Core
i9 i7 i5 i3 Pentium series processors
▲Support VGA HDMI DP synchronous display
▲Supports 1 M.2(NVME protocol)
▲Support 4*SATA port
▲supported the DDR4 dual channel memory slot
support 2133 2400 2666 3000 3200 3600 MHZ, Max 64GB
▲Support 4*USB3.0,6*USB2.0
▲RJ45 Gigabit network adapter port

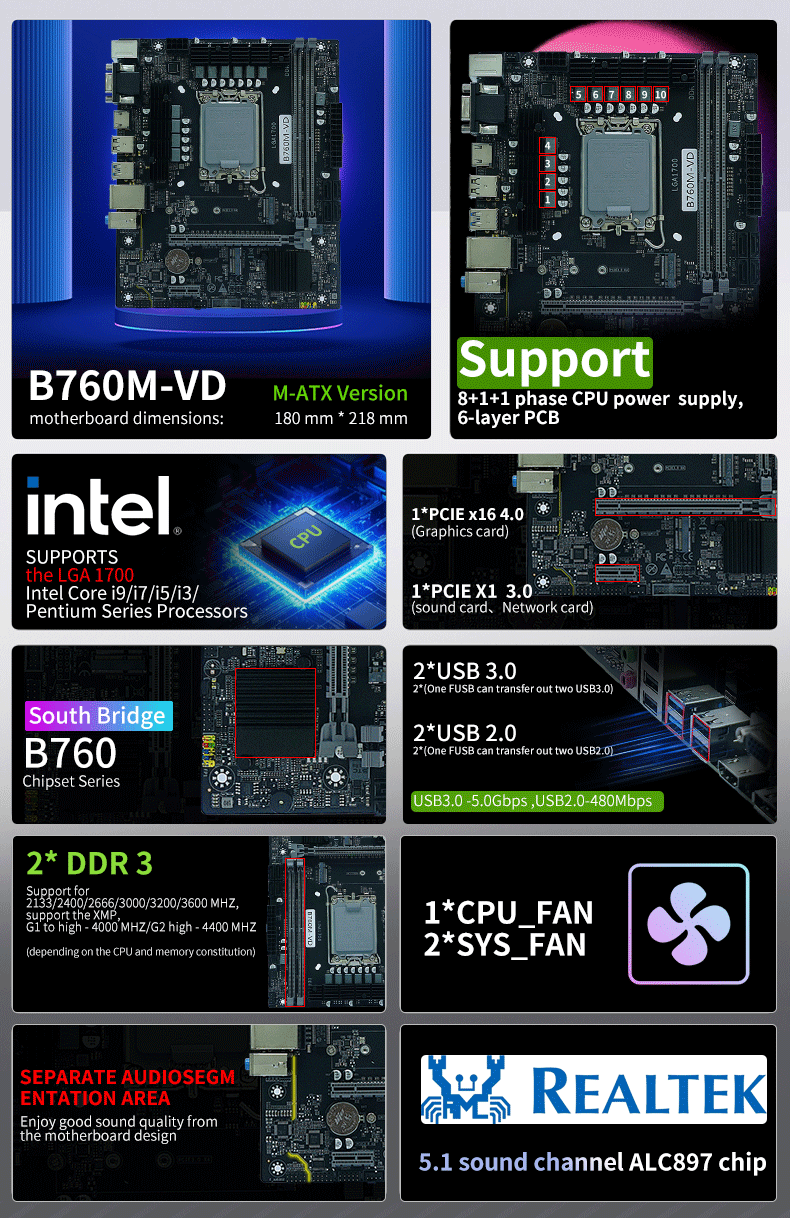

▲Support 8+1+1 phase CPU power supply,6-layer

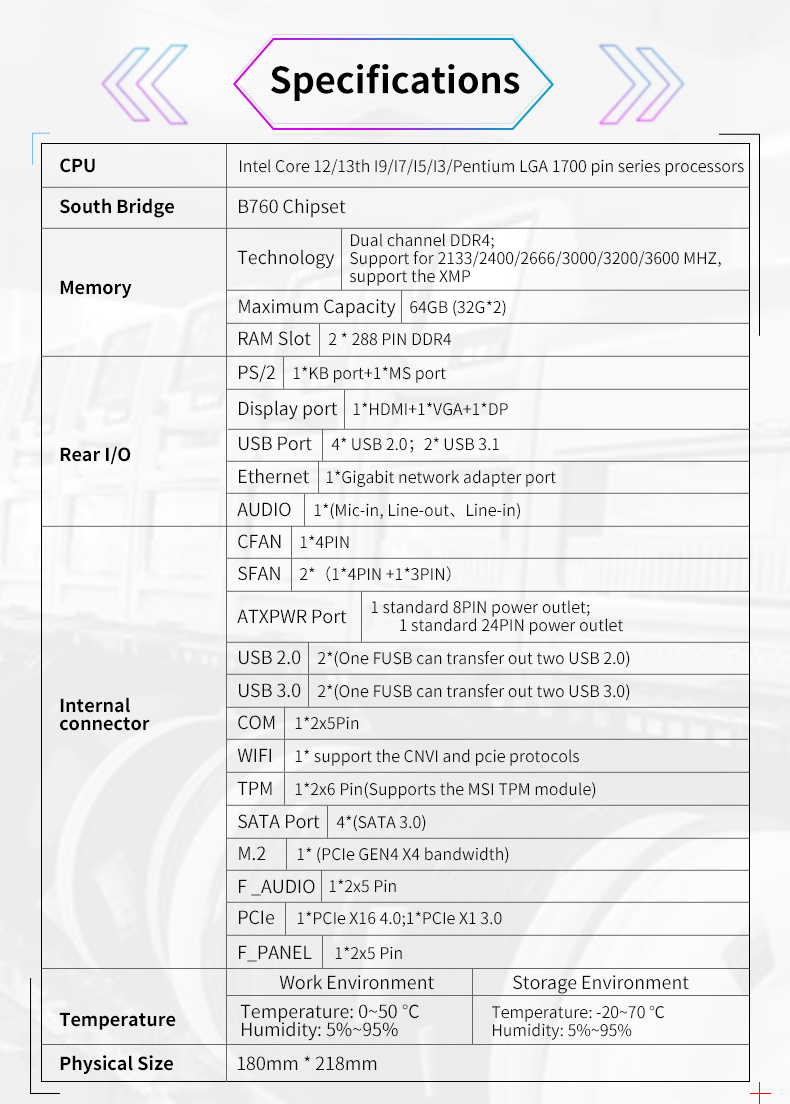

| Product Profile | ||
Product Name | B760M VD Computer Motherboard | |
| CPU | Intel Core 12 13 I9 I7 I5 I3 Pentium LGA 1700 pin series processors | |
Chipset | B760 | |
Internal Memory | Dual channel DDR4;Support 2133 2400 2666 3000 3200 3600 MHZ,2*288 PIN DDR4 64GB | |
Storage Interface | 1* (PCIe GEN4 X4 bandwidth) | |
Display Interface | 1*VGA 1*HDMI 1*DP | |
Network | 1 Realtek Gigabit Network Card | |
PCIE Solt | 1*PCIe X16 4.0;1*PCIe X1 3.0 | |
USB | 4* USB 2.0；2* USB3.1 | |
Audio | 1*(Mic-in,Line-ou,Line-in) | |
Product Size | 180 mm x 218 mm | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
