-Supports Intel Xeon E5 LGA2011-0 series processors
-Supports 4 SATA interfaces
-Supports DDR3 dual-channel memory slots
-Supports 1066/1333/1600/1866 MHz, maximum capacity 128G memory

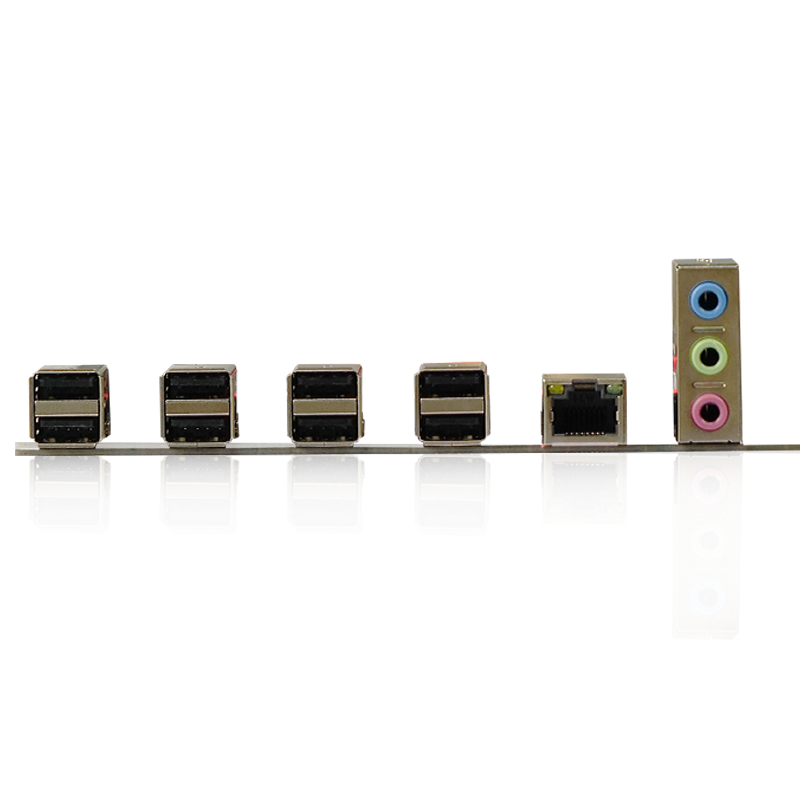

-The rear side provides 8 USB2.0 interfaces
-Supports 1 M.2 (NVME/NGFF protocol)
-Built-in pins allow for expansion of 4 USB2.0 interfaces
-Supports PCIE expansion slot X2
-Supports 1 Gigabit network card
-Supports PXE and network wake-up function
-Supports 24Pin + 8Pin ATX power input
-Supports Windows 7 Windows 10 Windows 11 operating systems

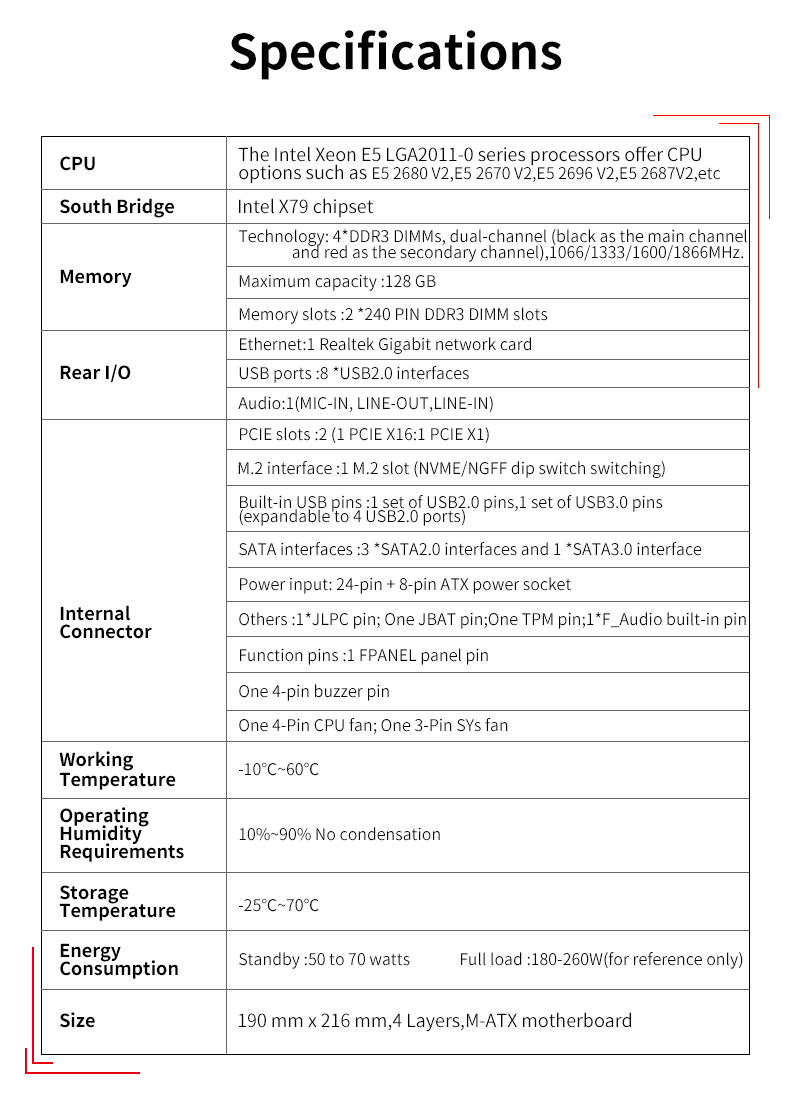

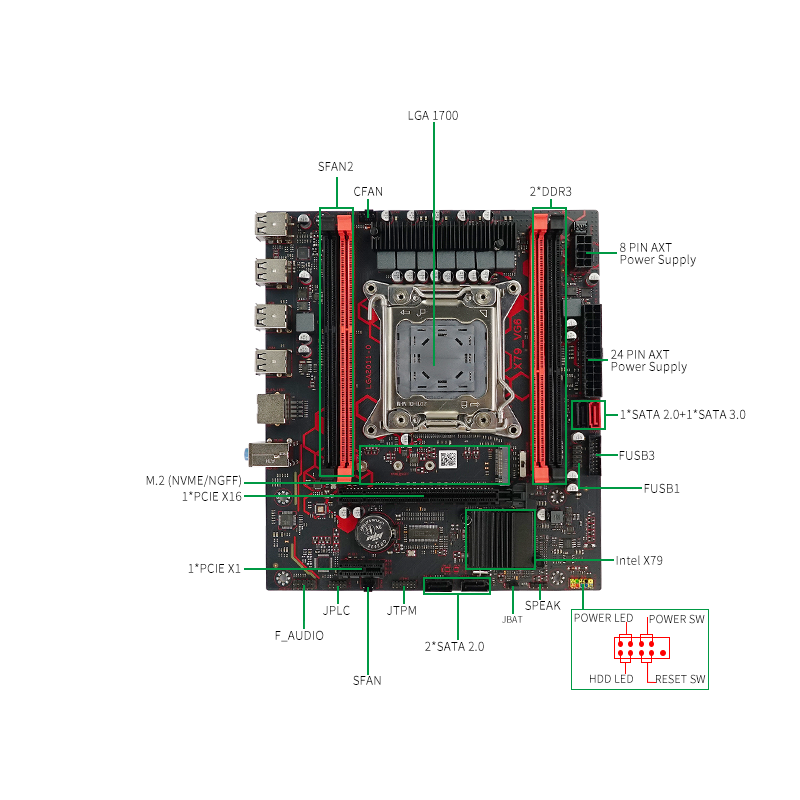

| Product Profile | ||

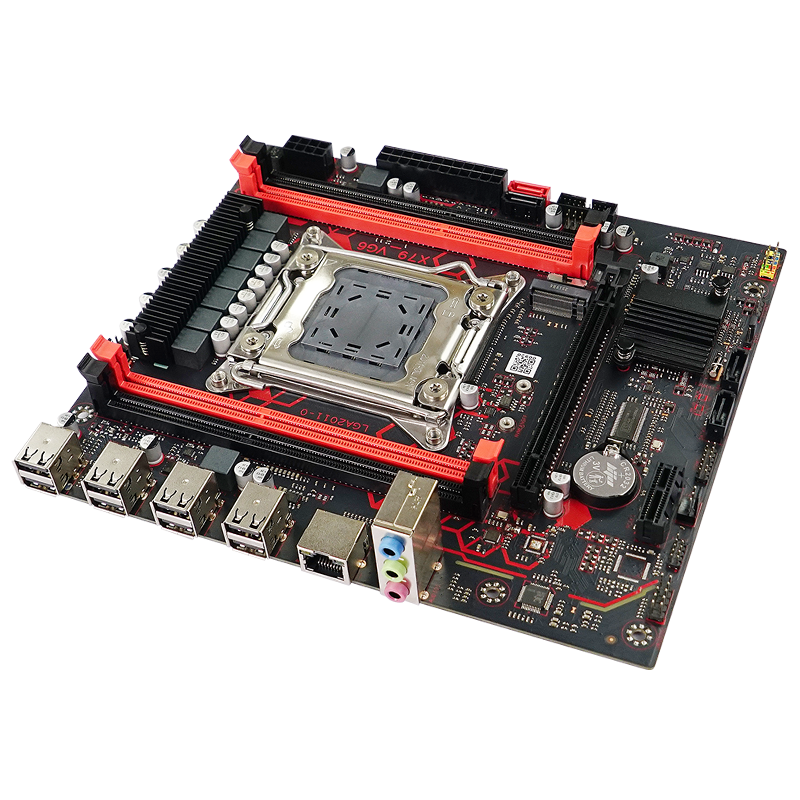

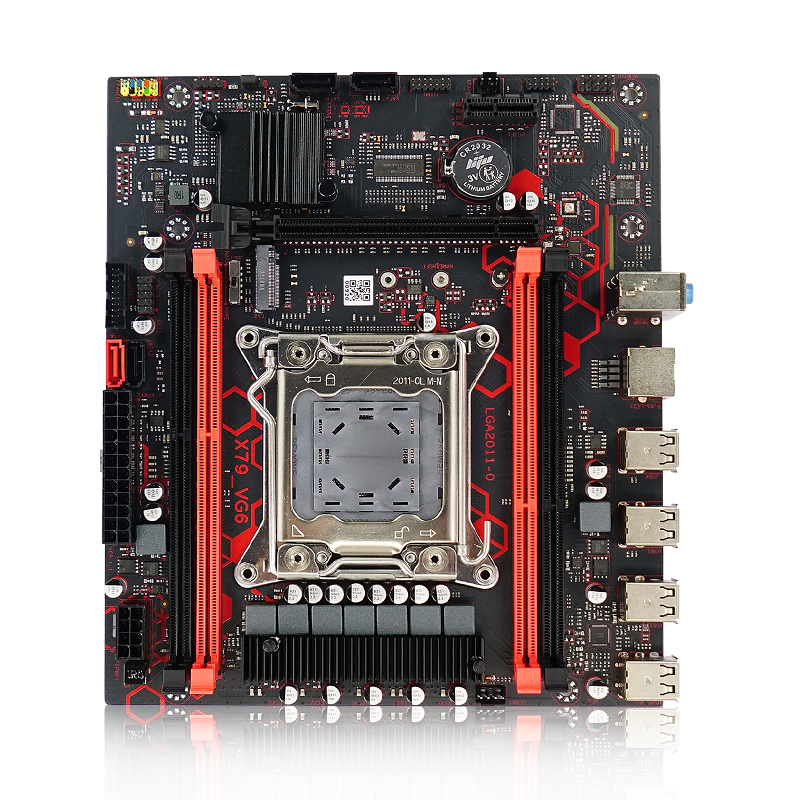

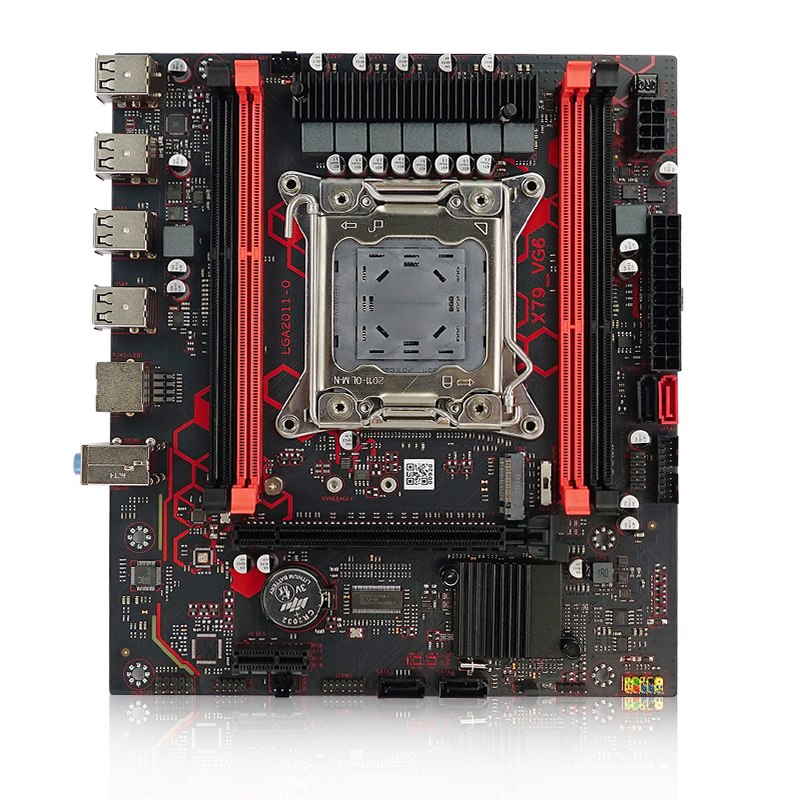

Product Name | X79 VG6 Computer Motherboard | |
| CPU | Support Intel Xeon E 5 LGA2011-0 series processors | |
Chipset | X79 | |
Internal Memory | Support DDR3 dual-channel memory slots 1066/1333/1600/1866MHz 128GB | |
Storage Interface | Support 1 M.2 (NVME/ NGFF protocol) | |
Display Interface | / | |
Network | 1 Gigabit network card | |
PCIE Solt | Supports PCIE expansion slot X2 | |
USB | 8 * USB2.0 | |
Audio | 1*Line out；1*Mic In；1*Line In；1*F_Audio Built-in | |
Product Size | 190*216mm*4L M-ATX motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
