-Supports Intel LGA2011-0 series processors
-Supports DDR3 dual-channel memory slots
-Supports 1066/1333/1600/1866 MHz, 64GB
-Supports 4 SATA interface 8 USB 2.0 ports at the rear
-Supports 1 M.2 (NVME/NGFF protocol) 4 USB 2.0 ports can be expanded through internal pins
Supports 2 PCIE expansion slots
-Supports 1 gigabit network card with PXE and network wake-up functions
-Supports 24Pin + 8Pin ATX power input
-Supports Windows 7 Windows 10 Windows 11 operating systems

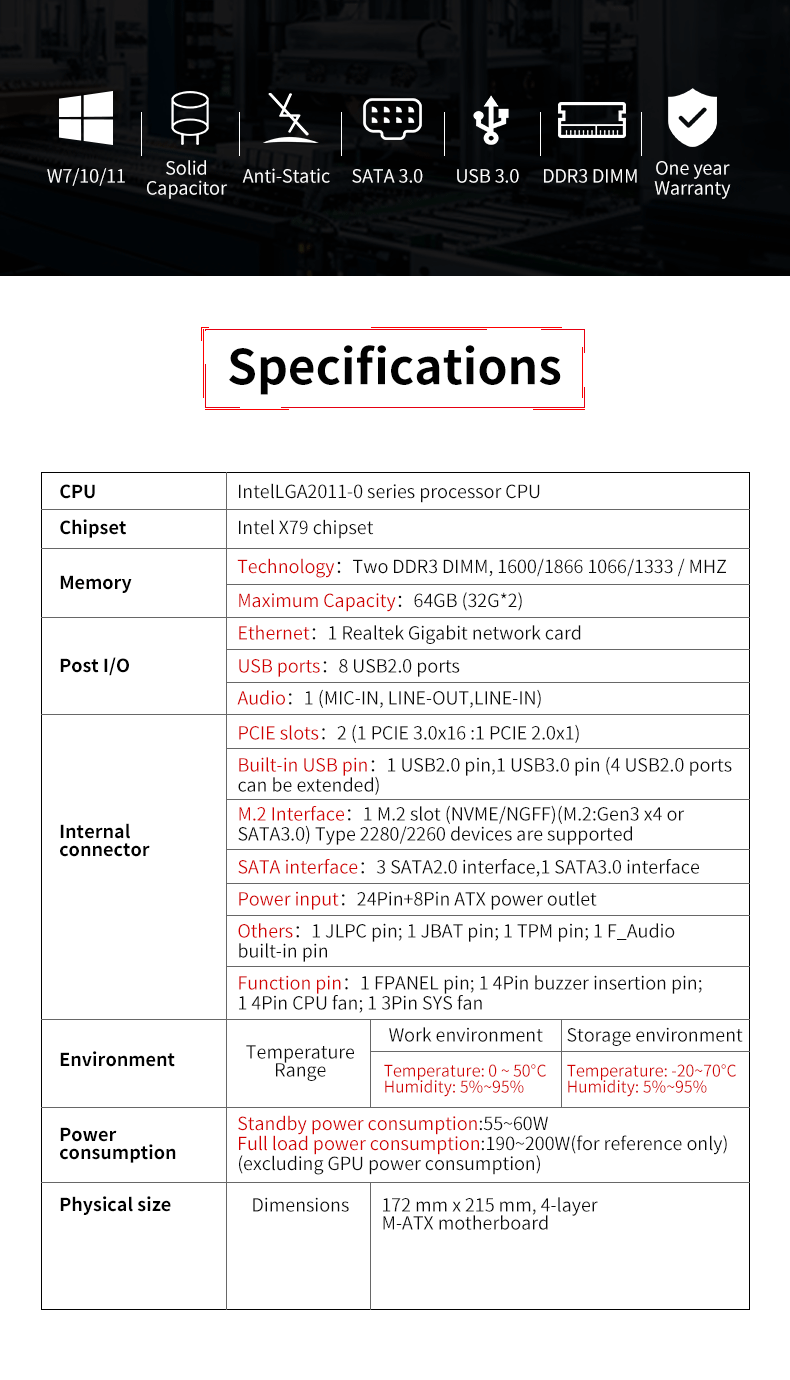

| Product Profile | ||
Product Name | X79 VG5 Computer Motherboard | |
| CPU | Intel LGA2011-0 series processor CPU | |
Chipset | X79 | |
Internal Memory | 2 DDR 3 DIMM, 1066/1333/1600/1866 MHz, maximum support 64G (32G*2) | |
Storage Interface | 1 M.2 slot (NVME/NGFF) (M.2: Gen3 x4 or SATA3.0) | |
Display Interface | / | |
Network | 1 Gigabit network card | |
PCIE Solt | 2 (1 PCIE 3.0×16; 1 PCIE 2.0×1) | |

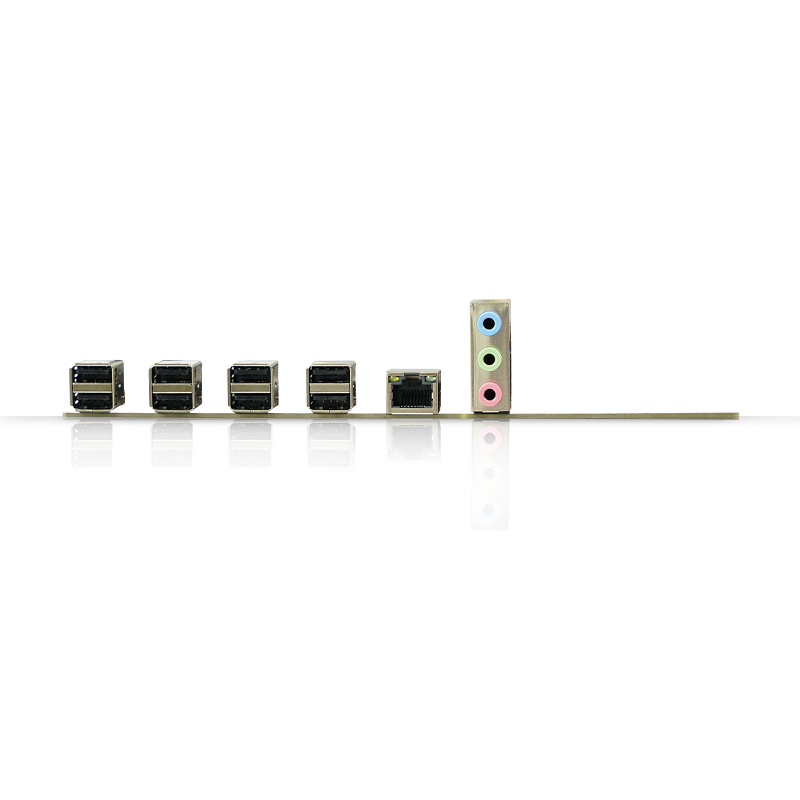

USB | 8 * USB2.0 | |
Audio | 1*Line out；1*Mic In；1*Line In；1*F_Audio Built-in | |
Product Size | 172*215mm*4L M-ATX motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
