◆Support LGA 1155 Intel series processors
◆Support dual-channel DDR3 DIMM memory
◆3× SATA
◆1x M.2 2280/2260/2240 solt

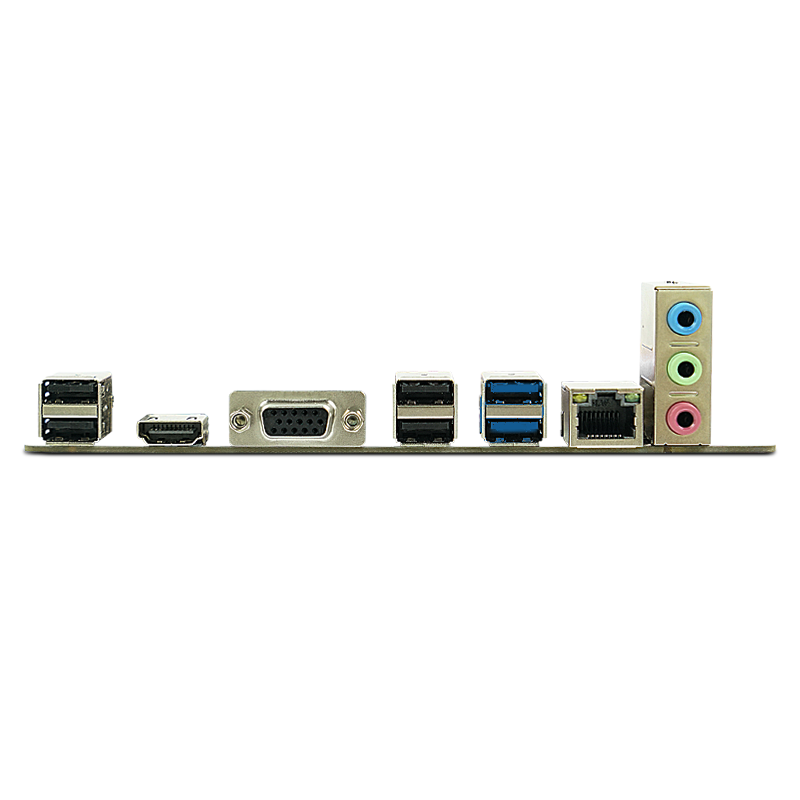

◆The rear interface 6xUSB2.0
◆Built-in pins can extend by 4 USB2.0
◆1 x 100 million abit network card support PXE and network wake up function
◆1 x PCIE *8 solt
◆Supports 24 Pin + 4Pin ATX power
◆Windows 7 Windows 10

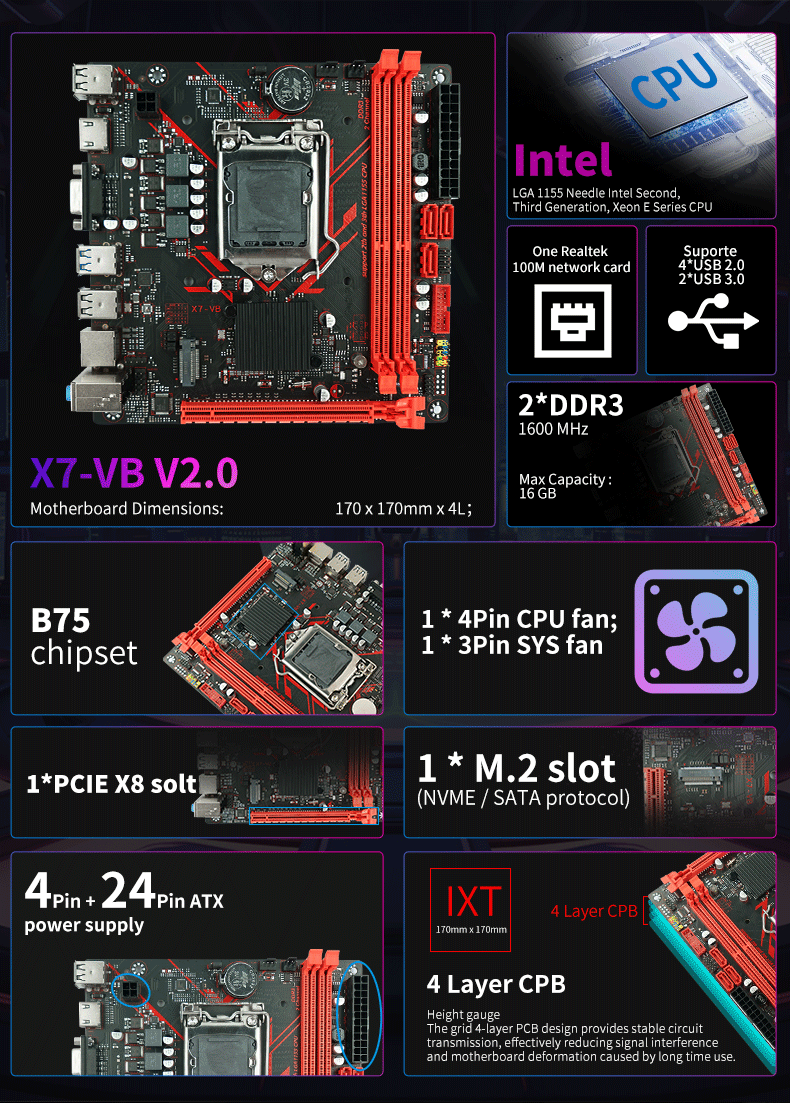

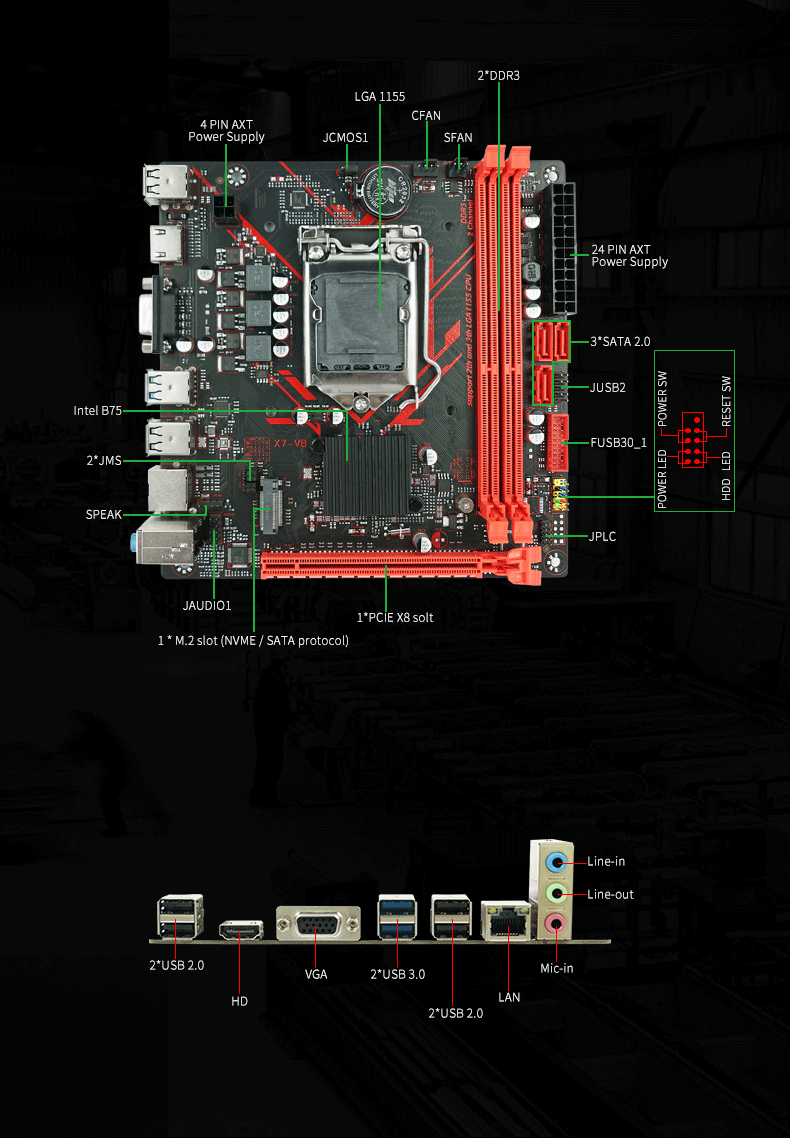

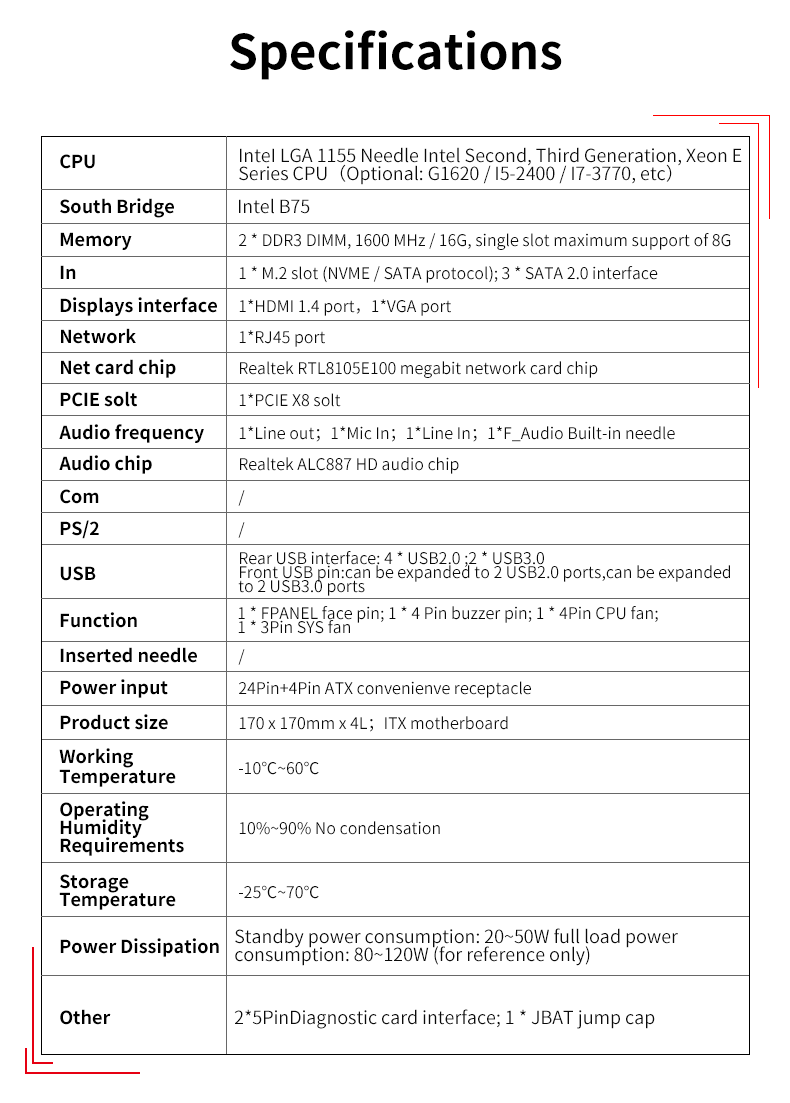

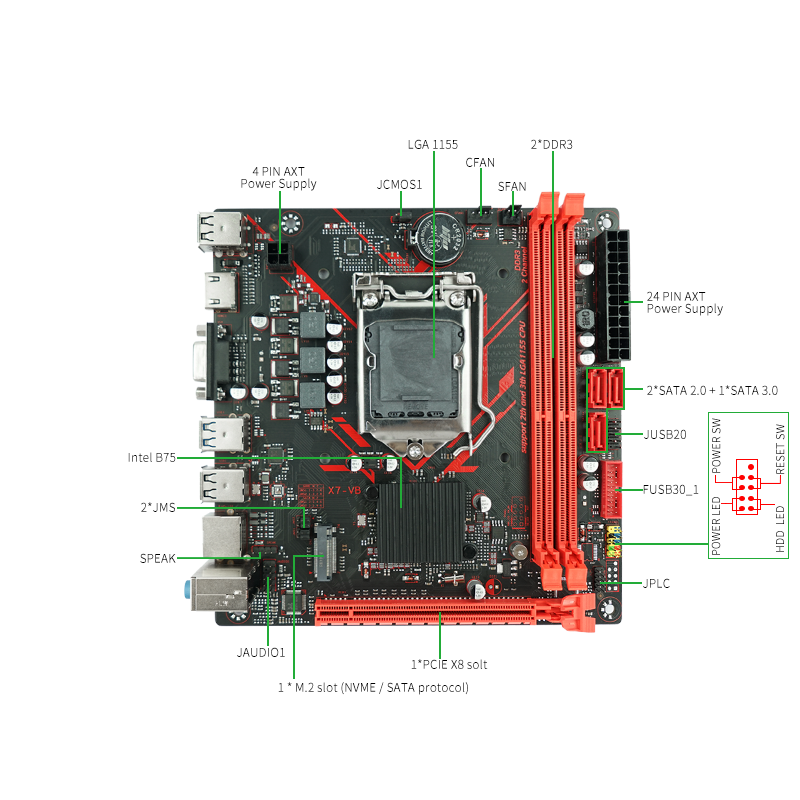

| Product Profile | ||

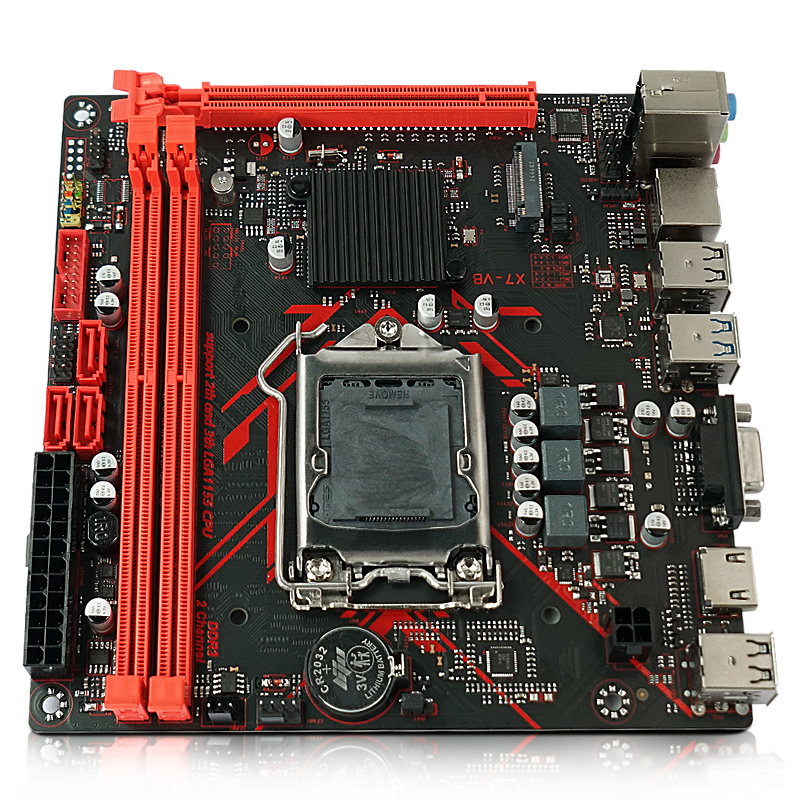

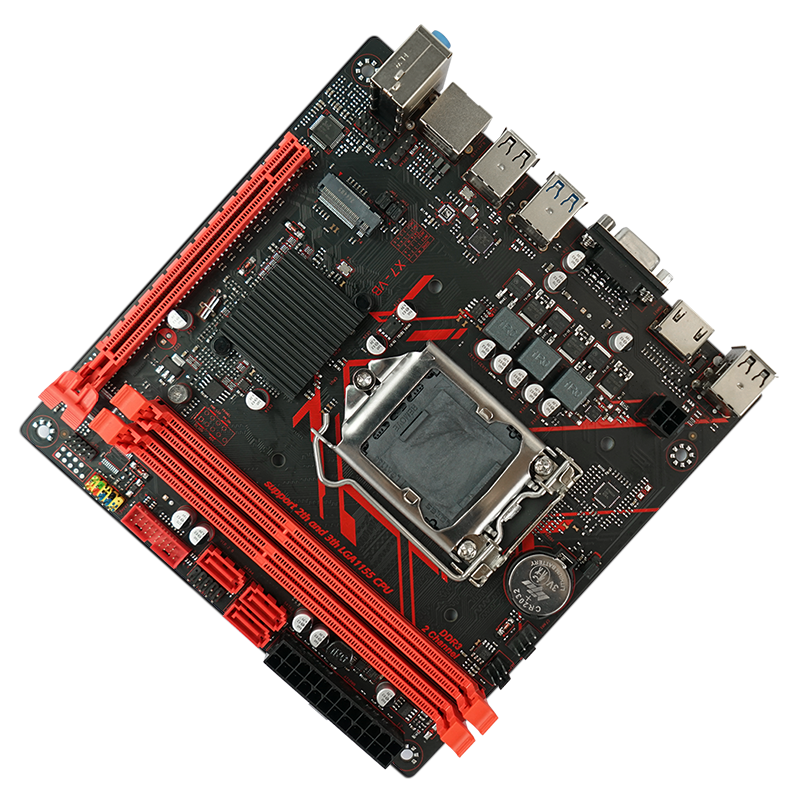

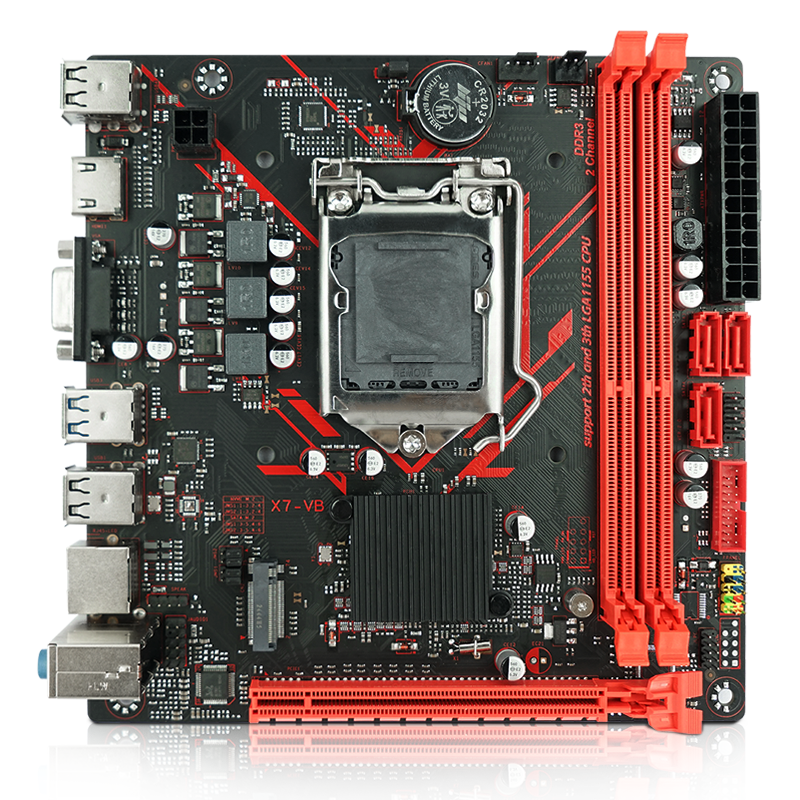

Product Name | X7 VB Computer Motherboard | |
| CPU | InteI LGA 1155,Intel Second,Third Generation,Xeon E Series CPU | |
Chipset | B75 | |
Internal Memory | 2 * DDR3 DIMM 1600 MHz / 16G, single slot maximum support of 8G | |
Storage Interface | 1 * M.2 slot (NVME SATA protocol); 3 * SATA 2.0 interface | |
Display Interface | 1*HDMI 1.4 port 1*VGA port | |
Network | 1*RJ45 | |
PCIE Solt | 1*PCIE X8 solt | |
USB | 6 * USB2.0 Front USB pin: 4 extended USB2.0 ports | |
Audio | 1*Line out；1*Mic In；1*Line In；1*F_Audio Built-in | |
Product Size | 170*170mm*4L ITX motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
