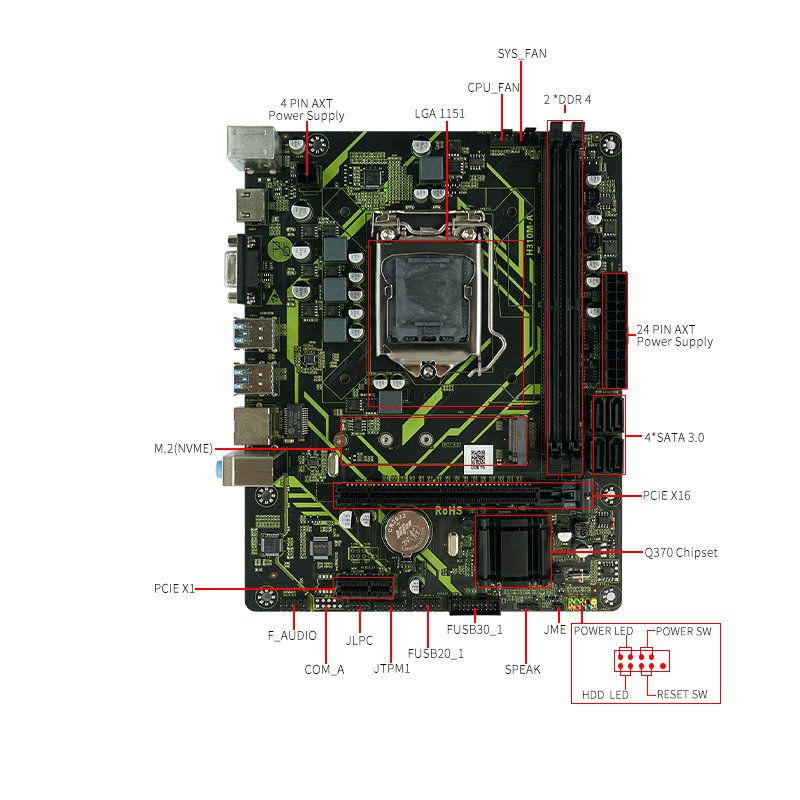

-Supports processors with INTEL 8/9th I3/I5/I7/I9 Pentium Celeron LGA1151 pins
-Supports dual-channel DDR4 memory
-1 M.2 (NVME mode)
-Support 4x SATA 3

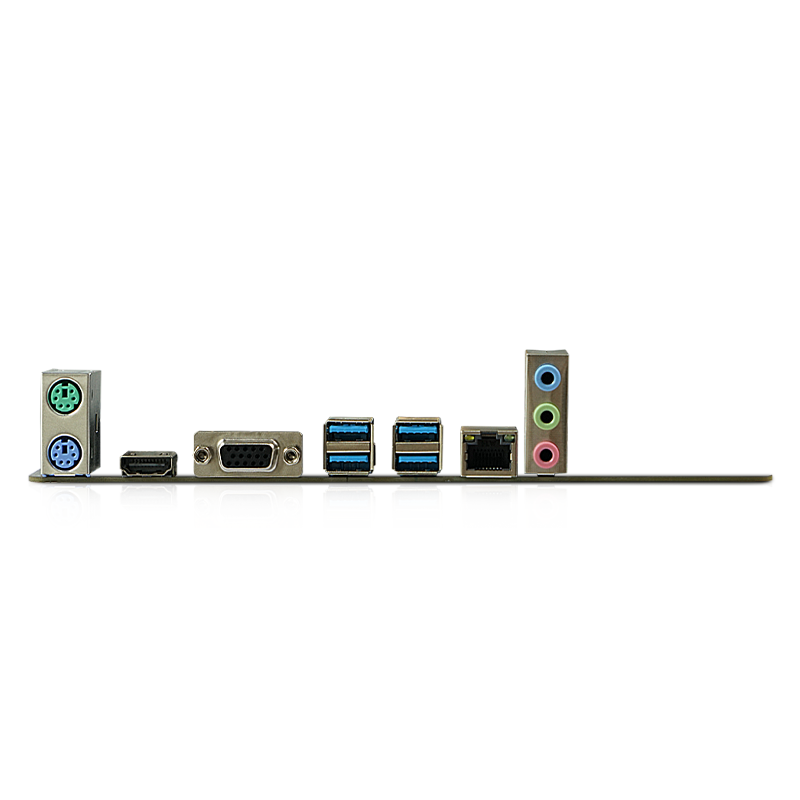

-The rear IO provides 4 USB3.0
-Built-in pins can be expanded to 2 USB3.0 and 2 USB2.0 ports
- 1 x HDMI，1 x VGA
- 1 x TPM 2.0 Insert the pin
-1 PS2 keyboard and mouse
- 1 x Gigabit network card supports PXE and network wake-up function
- 1 x PCIE X16 slot 1 x PCIE X1 slot
-Support Windows7 Windows10 Windows11 (TPM module is required)

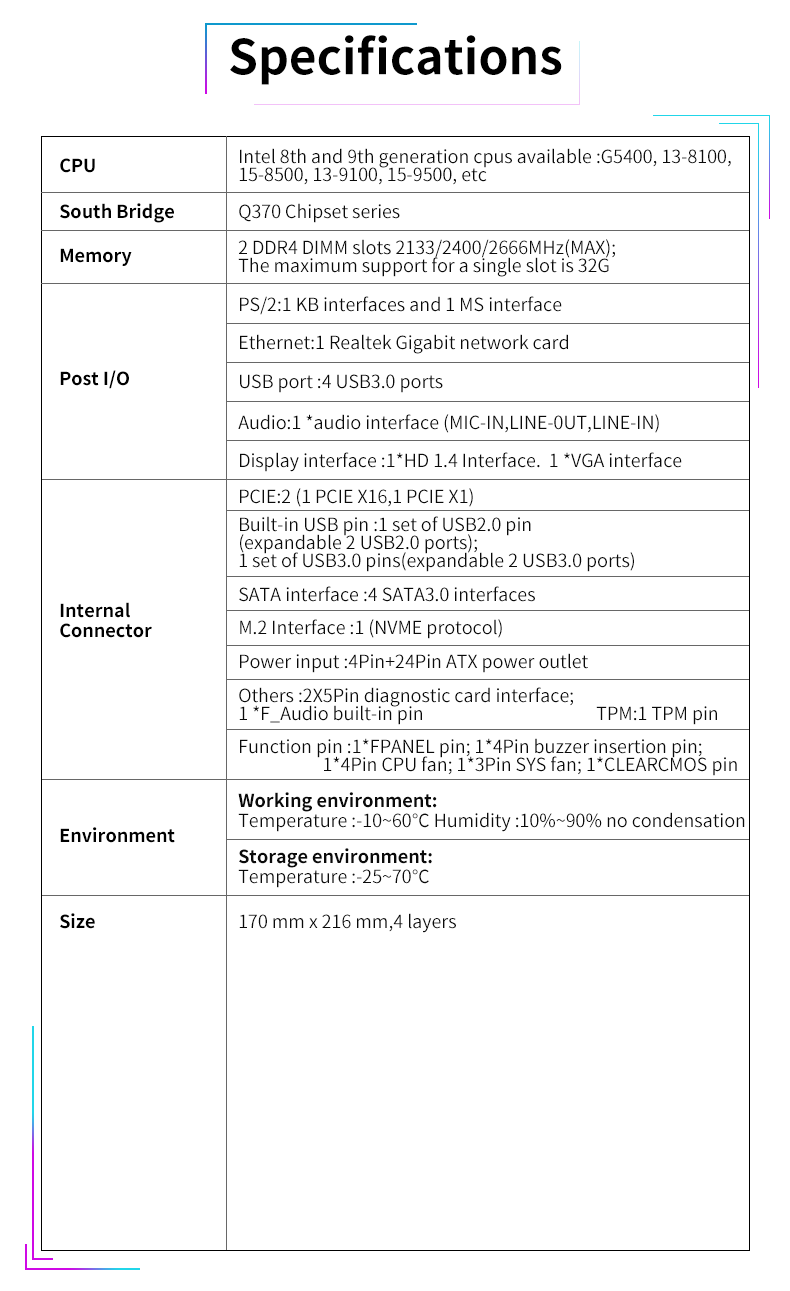

| Product Profile | ||

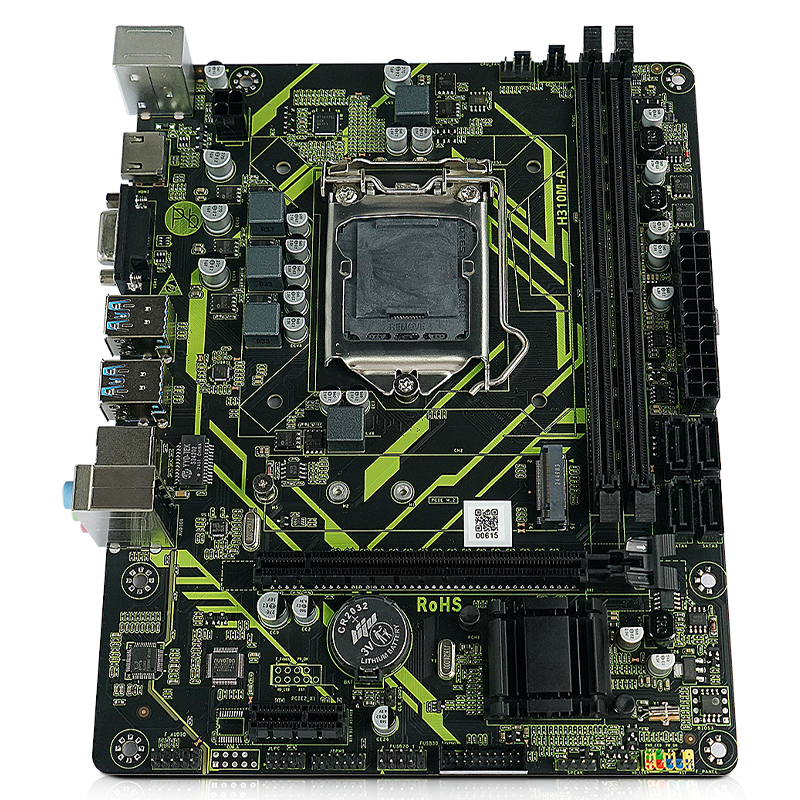

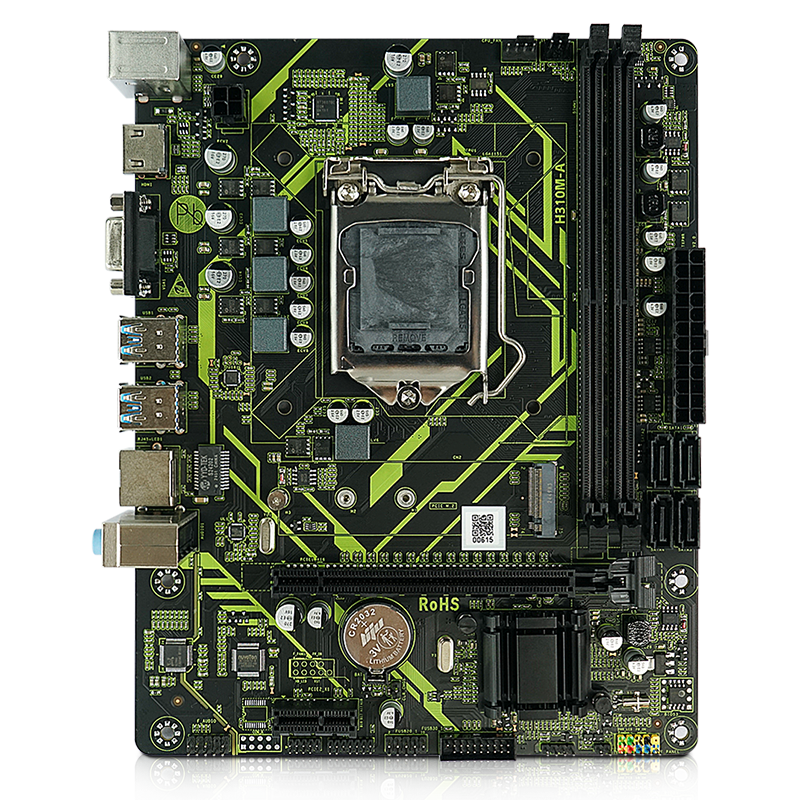

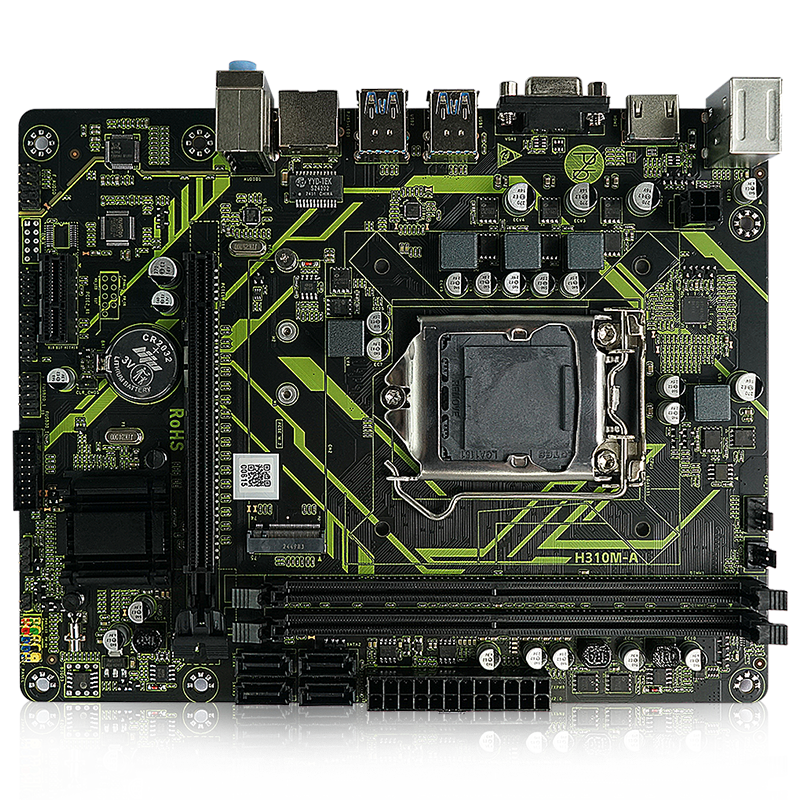

Product Name | H310M-A Computer Motherboard | |
| CPU | Intel 8th and 9th generation CPU | |
Chipset | Q370 | |
Internal Memory | 2*DDR4 DIMM supports 2133/2400/2666MHz (MAX) single slot maximum support 32G | |
Storage Interface | 1.M.2 slot (NVME protocol); 4*SATA 3 interface | |
Display Interface | 1*HDMI 1*VGA | |
Network | Realtek RTL8111H Gigabit network card chip | |
PCIE Solt | 1*PCIE X16 3.0 solt；1*PCIE X1 3.0solt | |
USB | 4*USB3.0 | |
Audio | 1 (Mic-in, Line-out, Line-in) | |
Product Size | 170 x 216 MM x 4L motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
