-Supports Intel Xeon E5 LGA2011-3 processors
-Supports 4-channel DDR3 DIMM memory
-6 x SATA sockets
- 1x M.2 slot (only NVME supported) 1x M.2 slot (NVME NGFF jump switch)

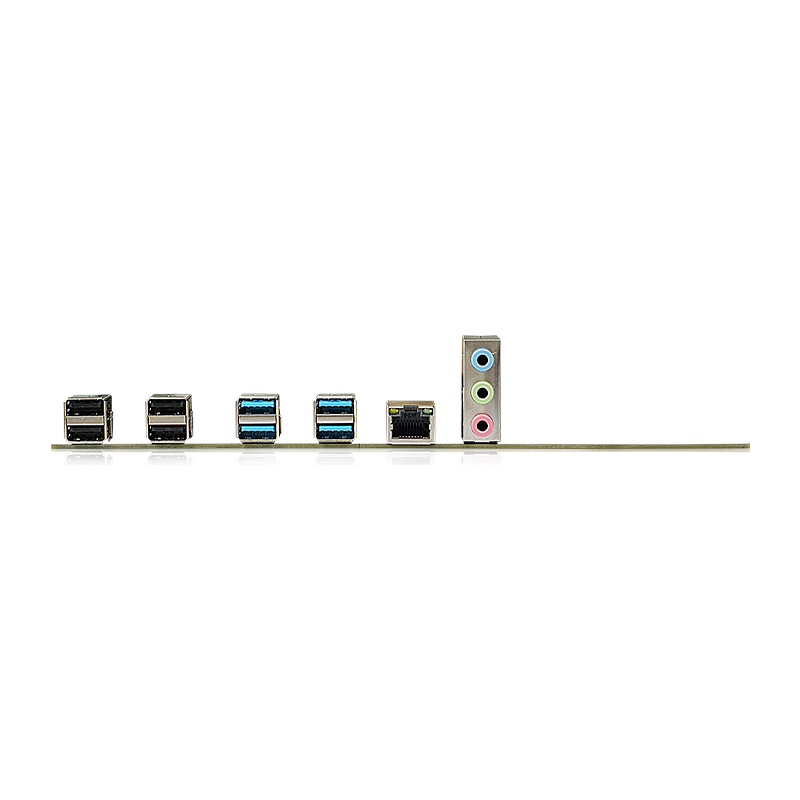

-The rear IO provides 4xUSB2.0 4xUSB3.0
-The built-in pin can be expanded to 2 x USB2.0 and 2xUSB3.0 ports
- 1 x M.2 WIFI
- 1 x TPM
- 1 x Gigabit network card support PXE and network wake-up function
-5.1 channel ALC897 chip
-1 x PCIE X1 1 x PCIE X4 1 x PCIE X16 slots
-Supports 24Pin +8Pin ATX power input
-Support Windows7 Windows10 Windows11

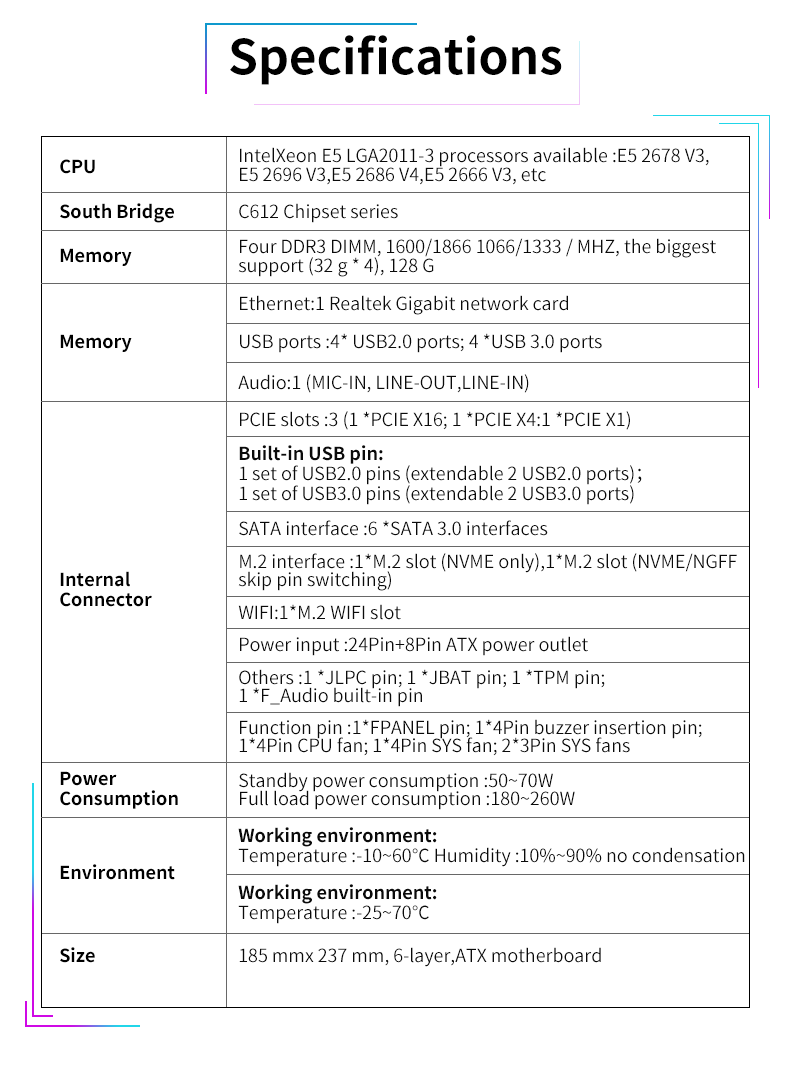

| Product Profile | ||
Product Name | X99 XD3 Computer Motherboard | |
| CPU | Intel Xeon E5 LGA2011-3 processor | |
Chipset | C612 | |
Internal Memory | 4*DDR3 DIMM 1066 1333 1600 1866MHZ single slot maximum support 32G | |
Storage Interface | 1 * M.2 slot (only supports NVME) 1 * M.2 slot (NVME/NGFF jump switch) 6 *SATA 3.0 | |
Display Interface | / | |
Network | Realtek RTL8111H Gigabit network card chip | |
PCIE Solt | 1PCIE X16 slot 1PCIE X4 slot 1PCIE X1 slot | |
USB | 4*USB2.0 4*USB3.0 | |
Audio | 1 (Mic-in, Line-out, Line-in) | |
Product Size | 237.13 x 185 MM x 6L motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
