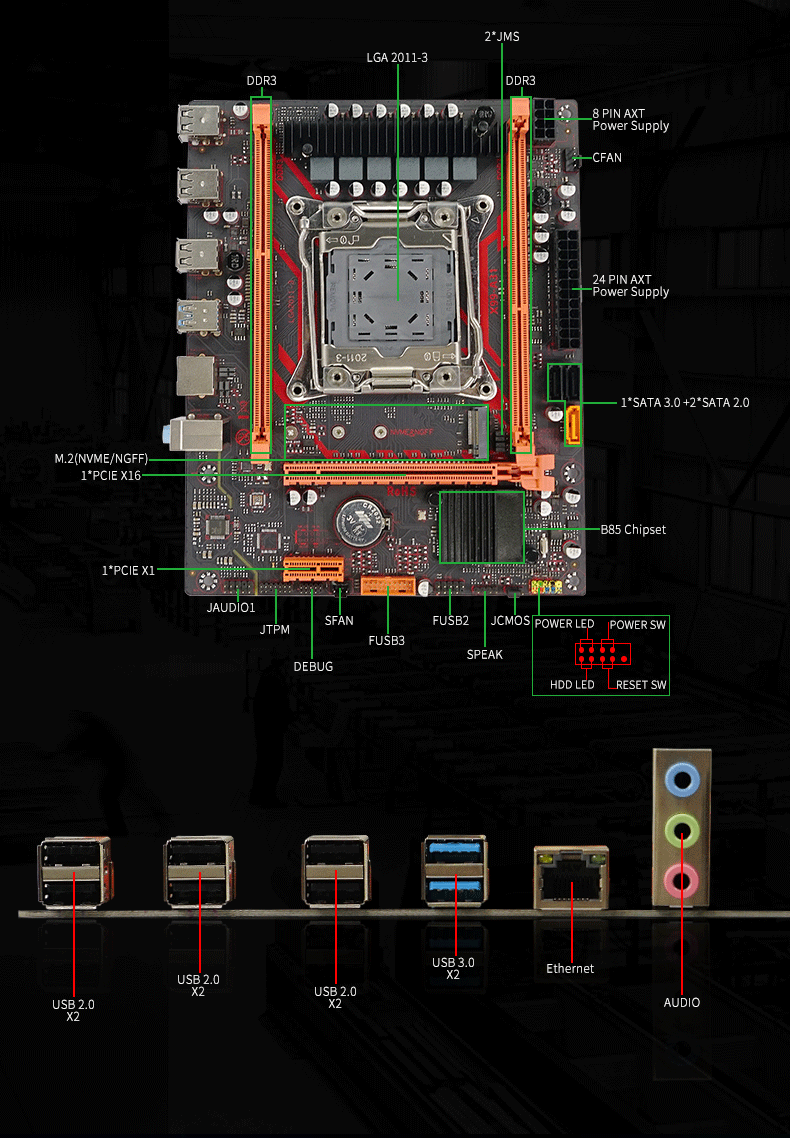

-Supports Intel processors in LGA 2011-3 series
-Supports dual-channel DDR3 DIMM memory
-3 x SATA ports
-1 x M.2 2280/2260/2240 slots (support NVME/NGFF mode)
-The rear port provides 6 x USB2.0 and 2 x USB3.0
-The front pin can be expanded to 2 USB2.0 and 2 USB3.0
-1 x Gigabit network card, support PXE and network wake up function
-1 x PCIE X16 slot, 1 x PCIE X1 slot
-Supports 24Pin+8Pin ATX power input
-Windows 7 Windows 10 Windows11

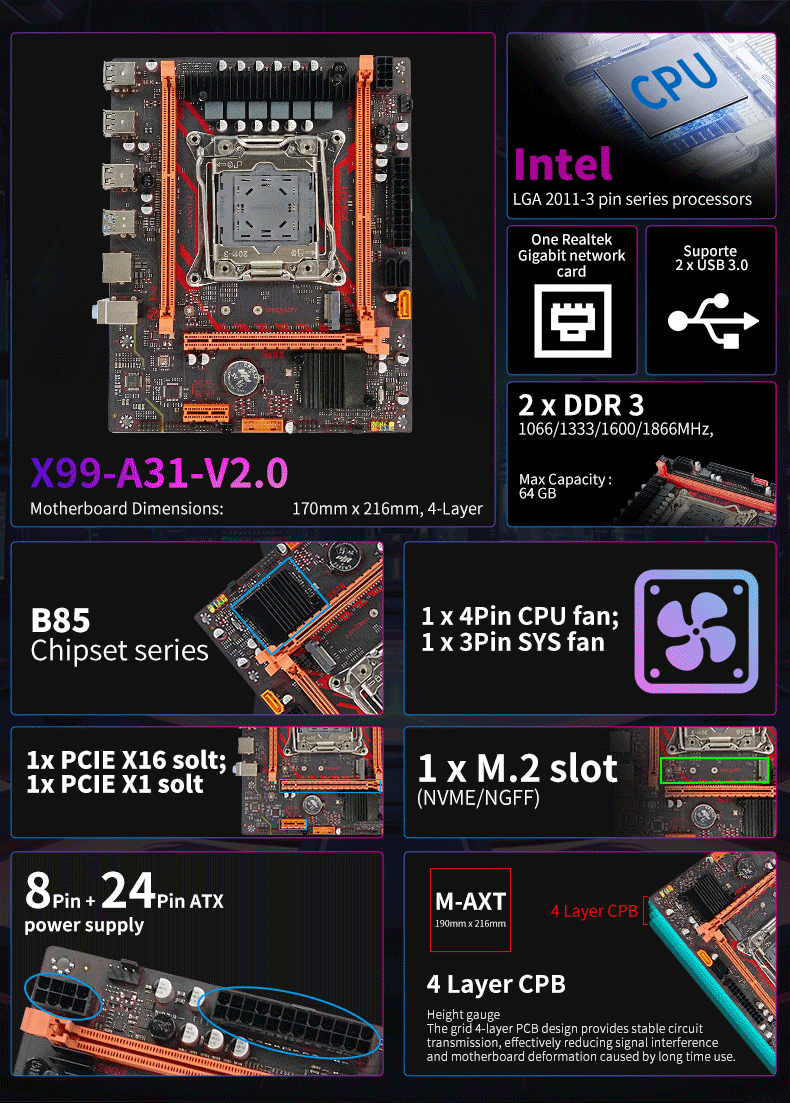

| Product Profile | ||

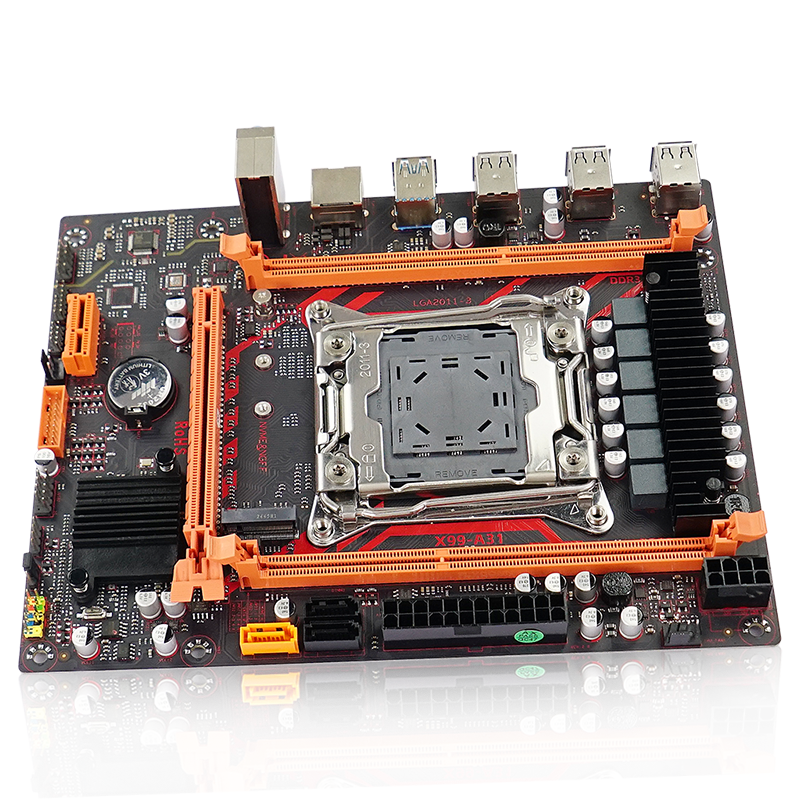

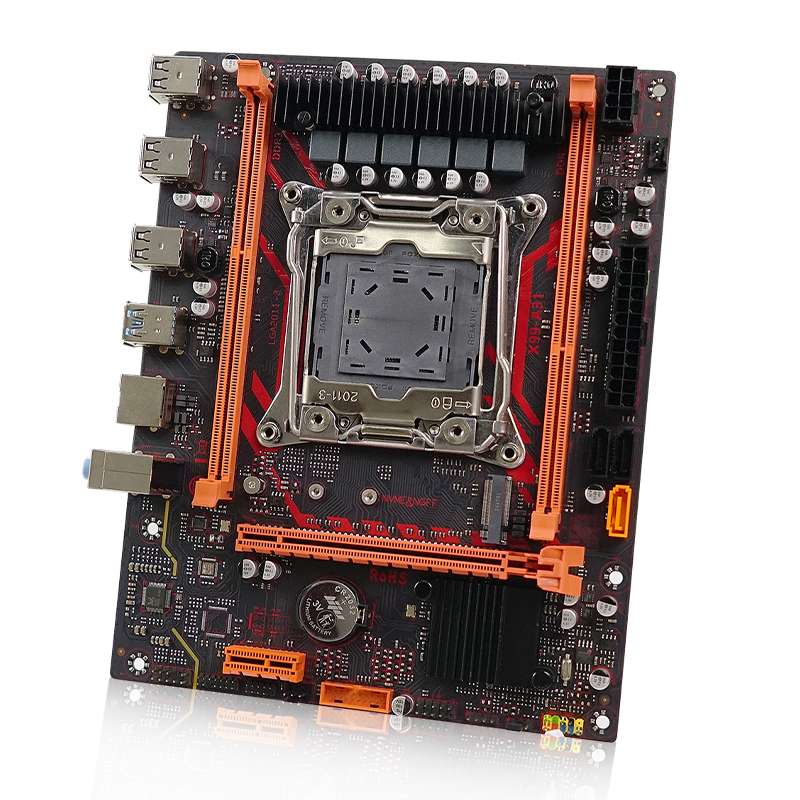

Product Name | X99 A31 Computer Motherboard | |
| CPU | Support Intel LGA2011-3 series processors | |
Chipset | B85 | |
Internal Memory | 2*DDR3 DIMM 1866MHz 64GB | |
Storage Interface | 1 *M.2 slot (NVME and SATA protocols); 2 *SATA2.0 ports, 1 *SATA3.0 ports | |
Display Interface | / | |
Network | 1RJ45 interface | |
PCIE Solt | 1 *PCIE X16 slot; 1 *PCIE X1 slot | |
USB | 6*USB2.0,2*USB3.0 | |
Audio | 1*Line out；1*Mic In；1*Line In；1*F_Audio Built-in | |
Product Size | 170*216mm*4L M-ATX motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
