▲Support Dula Xeon E5 LGA2011-3 pin series processors
▲Supports 10 SATA ports (6Gb/s)
▲Support for 2 M.2 interfaces (SATA&NVME protocol)
▲DDR4 four-channel memory slots: support DDR4 2133 MHZ,
2400 MHZ, and 2666MHz, with a maximum capacity of 256GB
▲Supports six USB3.0 and eight USB2.0 devices
▲Supports four expanded PCI-E interfaces ▲Supports two Realtek Gigabit network adapters
▲Supports 6 baseboards and 8+8 phase CPU power supply
▲Support WIN7/Win10 32-bit / 64-bit operating system

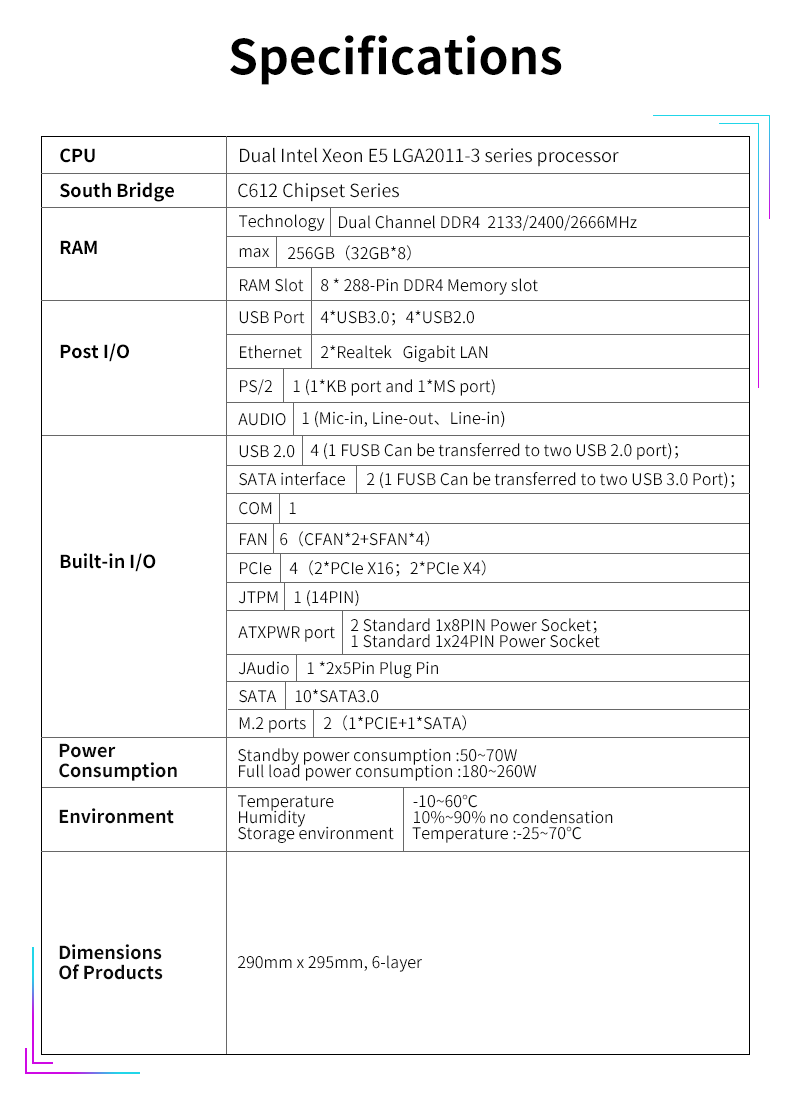

| Product Profile | ||

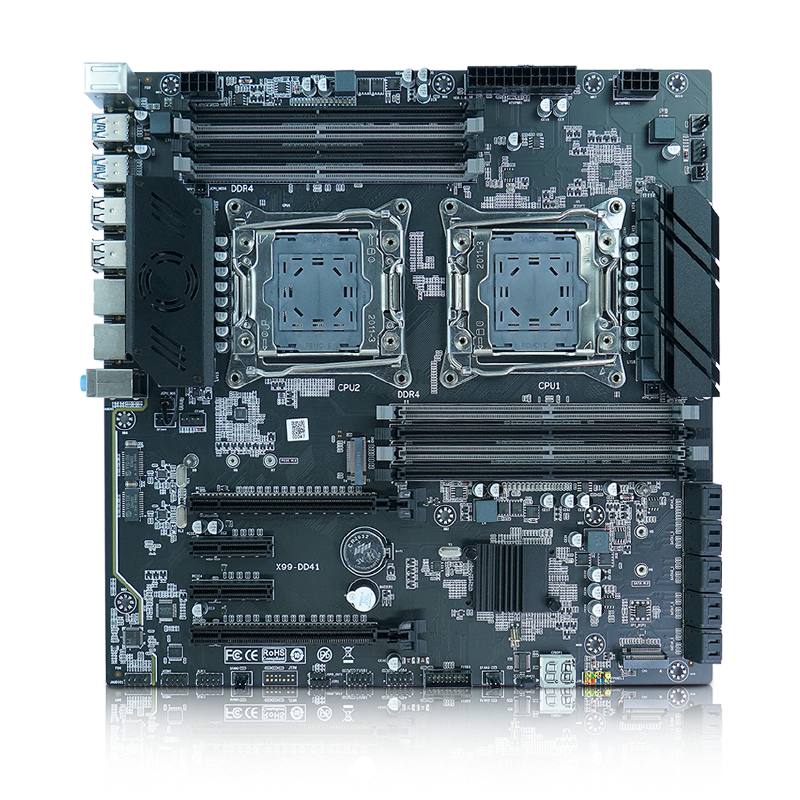

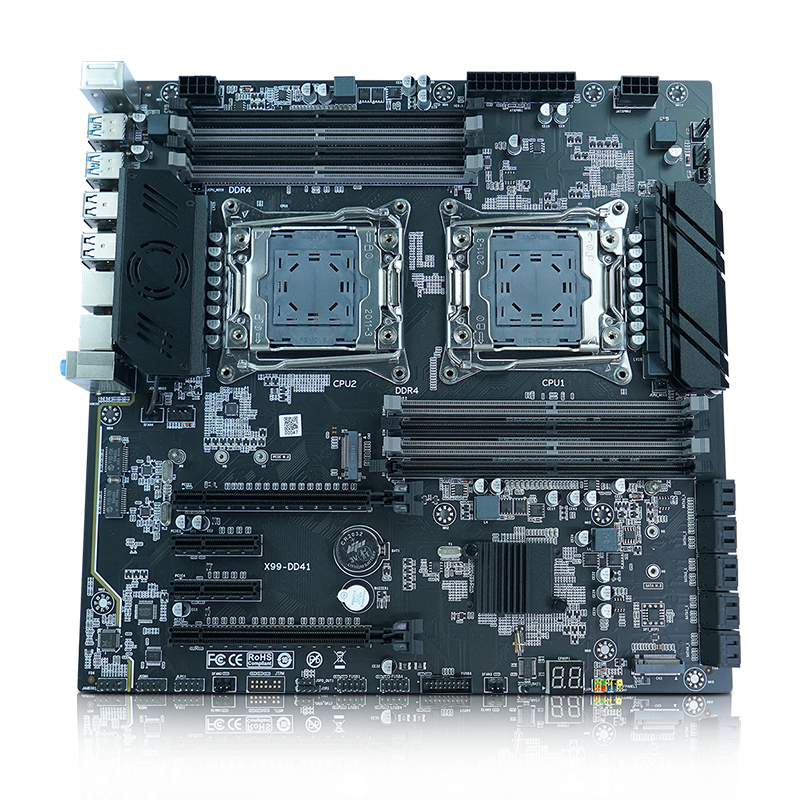

Product Name | X99 DD41 Computer Motherboard | |
| CPU | Intel Xeon E5 LGA2011-3 processor | |
Chipset | C612 | |
Internal Memory | Dual Channel DDR4 2133/2400/2666MHz 8 * 288-Pin 256GB | |
Storage Interface | 2（1*PCIE+1*SATA） | |
Display Interface | / | |
Network | 1*RJ45 interface | |
PCIE Solt | 2个（1*PCIE+1*SATA） | |

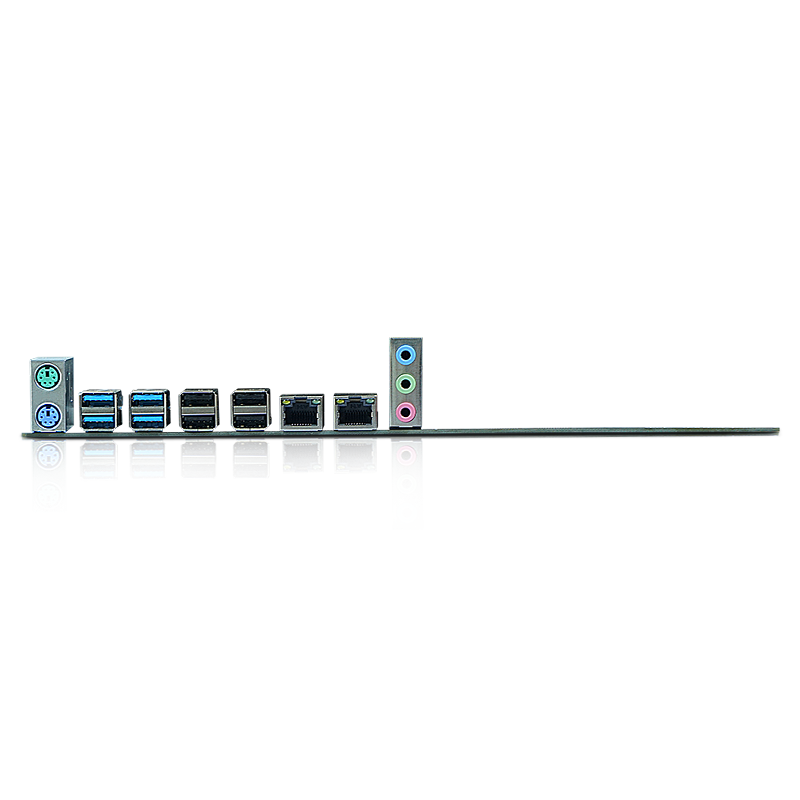

USB | 4*USB3.0 4*USB2.0 | |
Audio | 1 (Mic-in, Line-out、Line-in) | |
Product Size | 290*295mm ATX motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
