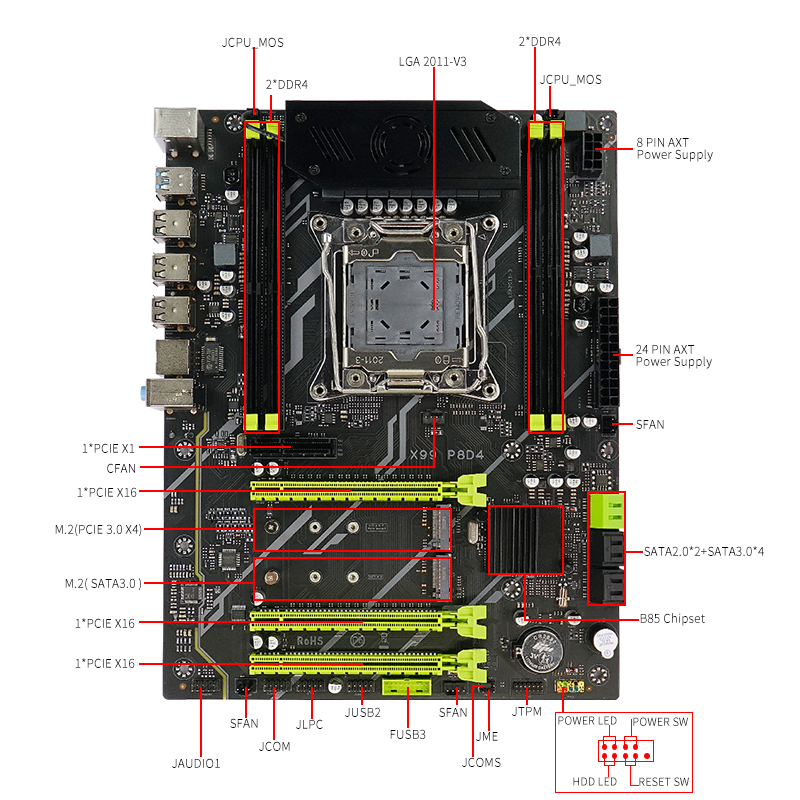

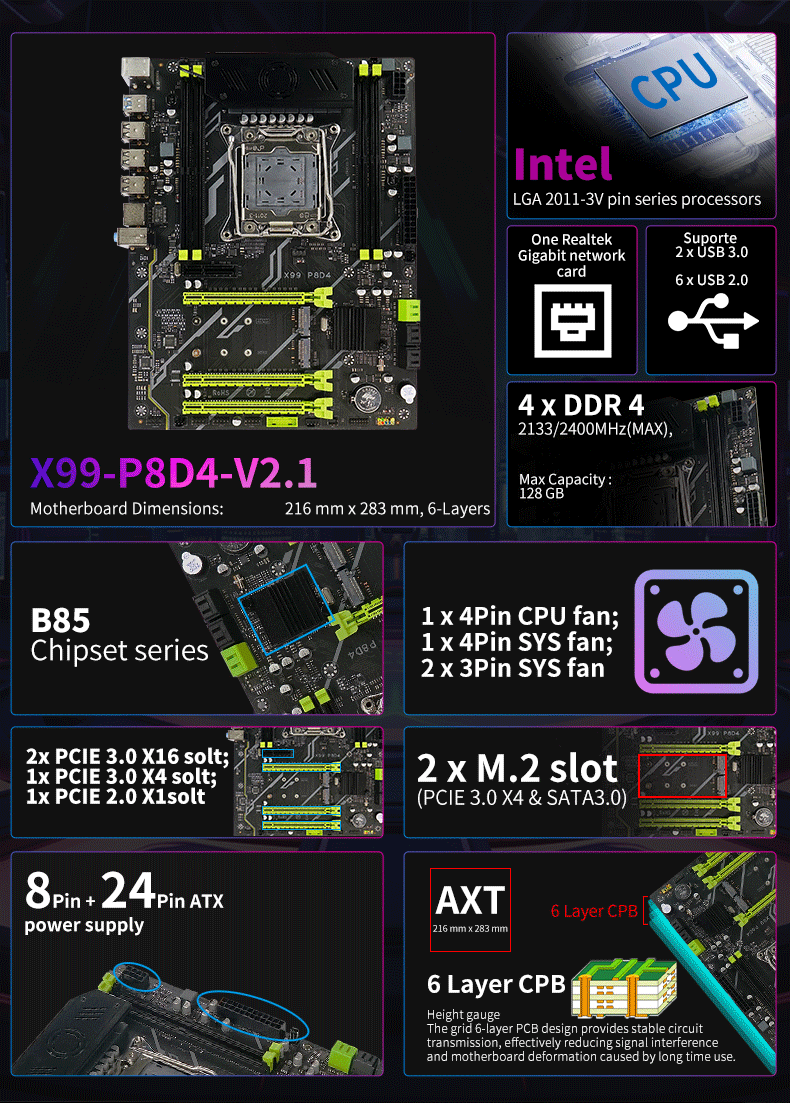

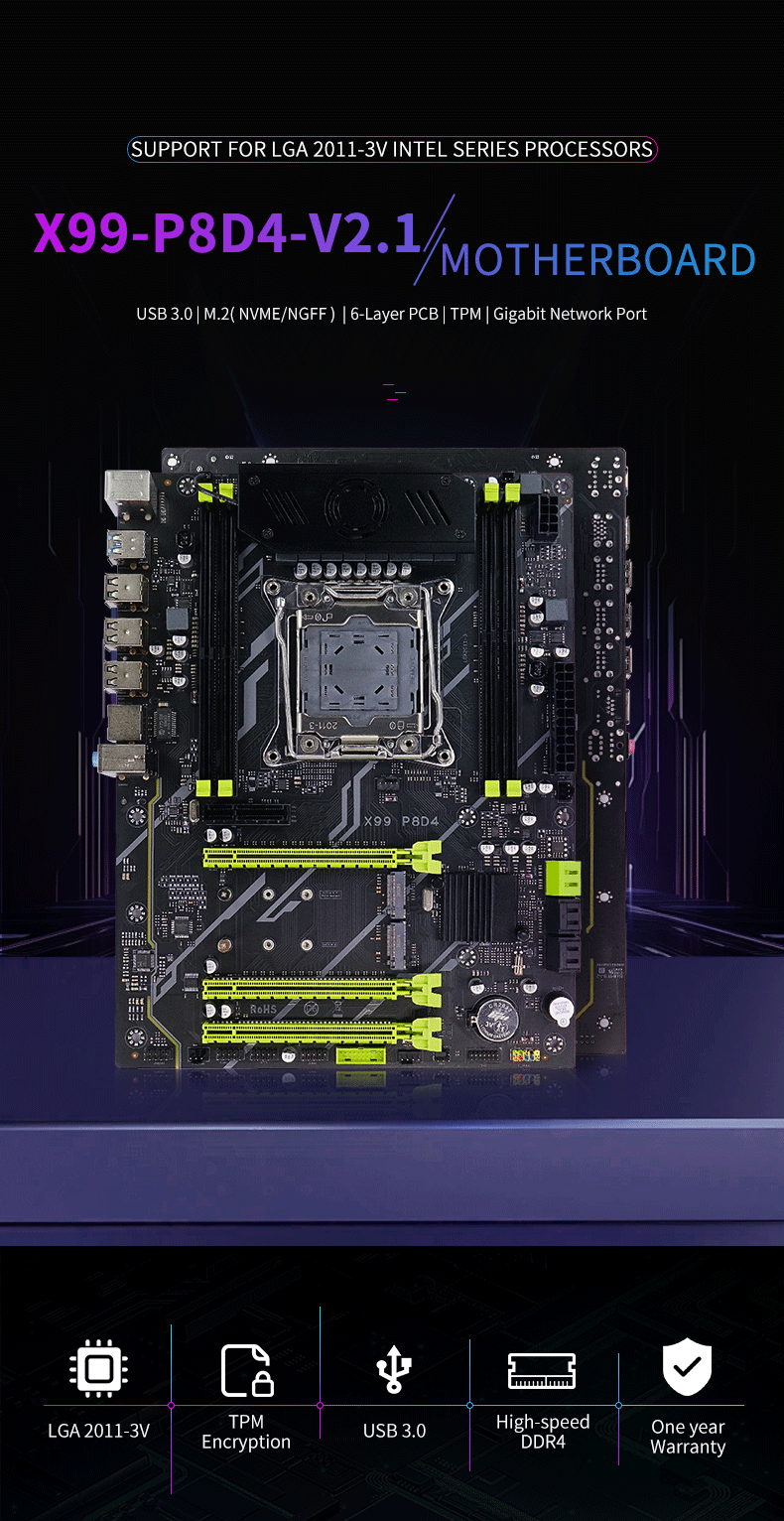

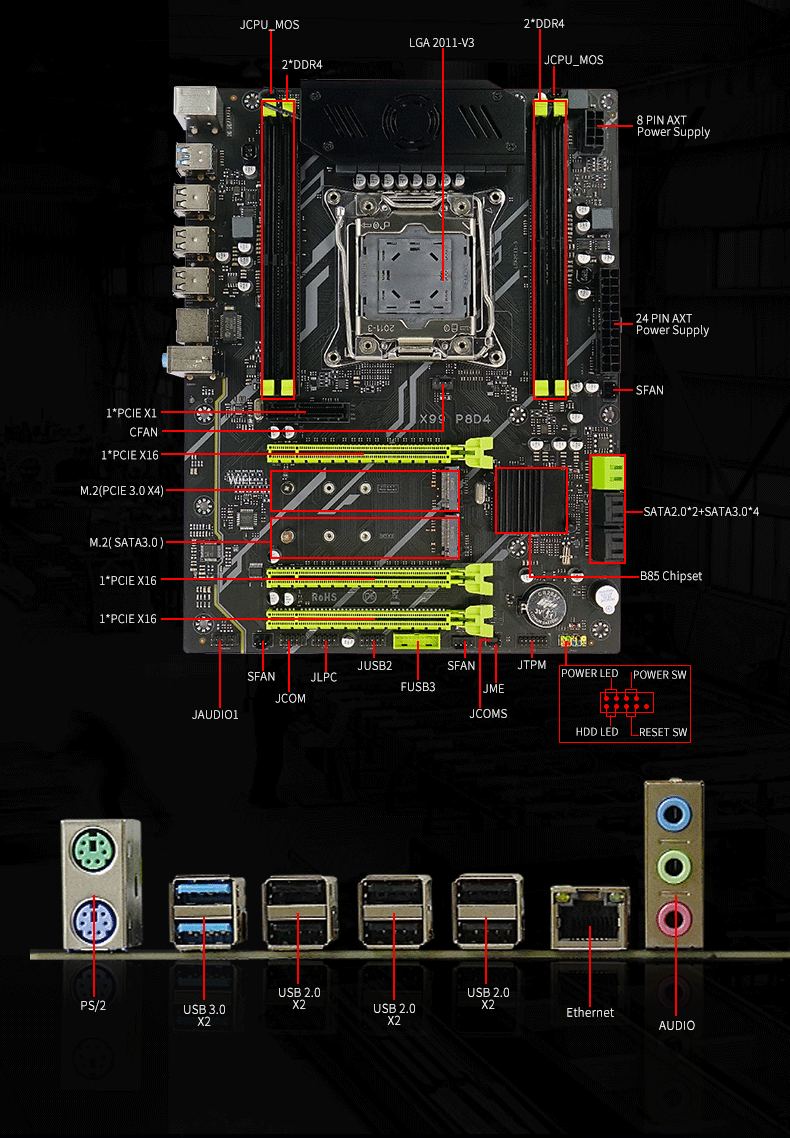

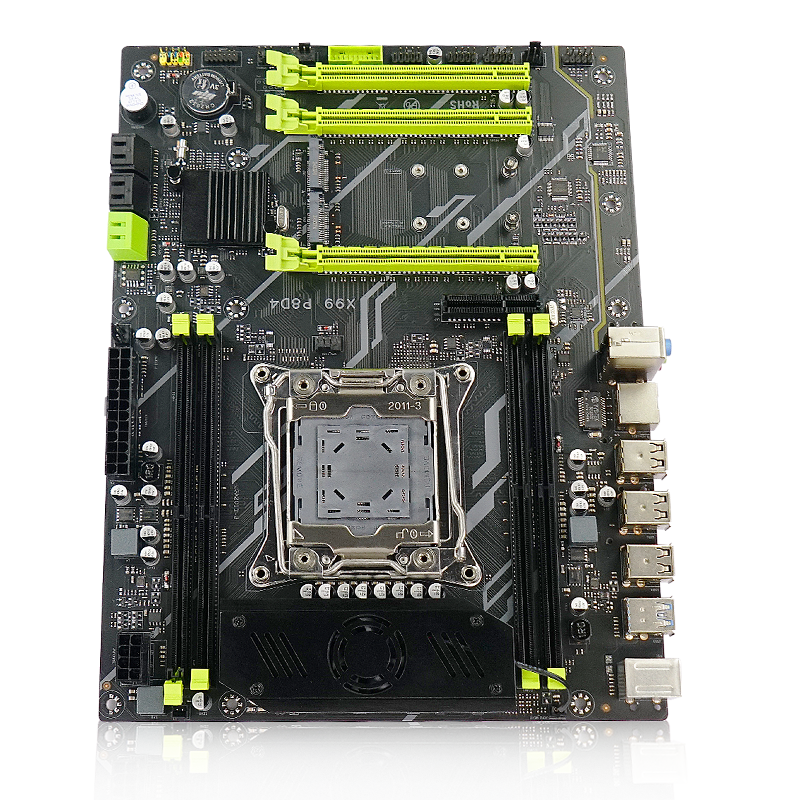

-Support Intel Xeon E5 LGA2011-V3 pin processors
-Supports 4-channel DDR4*4 memory
-2 M.2 (NVME protocol *1 + SATA protocol *1)
-Supports 6* SATA ports

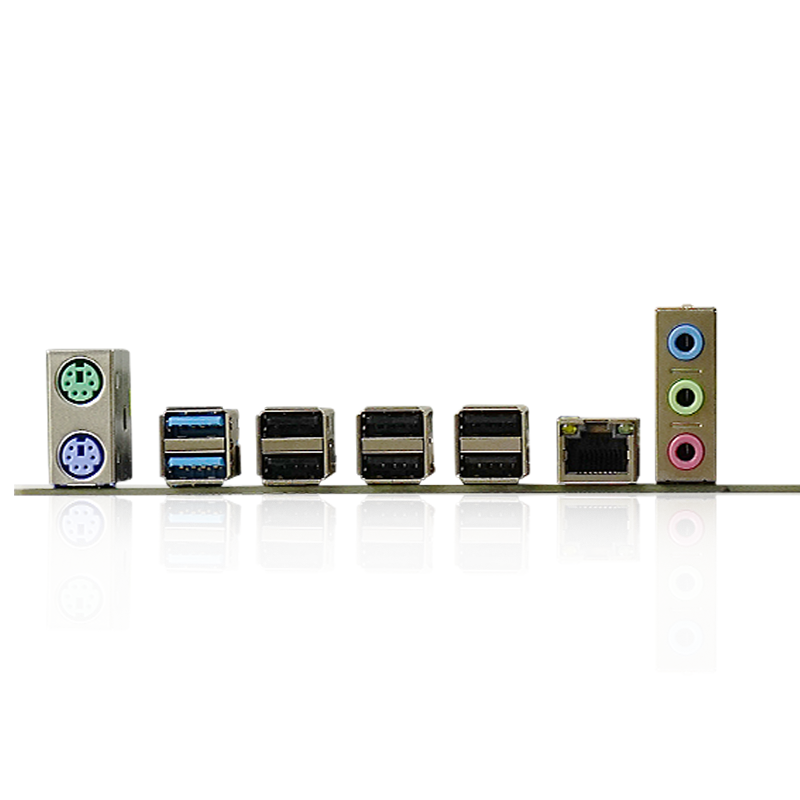

-The rear IO provides 2 USB3.0 and 6 USB2.0 ports
-Built-in plug-in can expand 2 USB3.0, 2 USB2.0 ports
-1 x Gigabit network card, support PXE and network wake up function
-6 layer PCB base plate, 8 phase power supply
-3 * PCIE X16 slots, 1 * PCIE X4 slots
-1*CFAN+3*SFAN
-Support Windows7 Windows10 Windows11
| Product Profile | ||
Product Name | X99 P8D4 Computer Motherboard | |
| CPU | Intel Xeon E5 LGA2011-V3 processor | |
Chipset | H81 | |
Internal Memory | 4*DDR4 four-channel DIMM, 2133/2400MHz (MAX), maximum support 128G (32G*4) | |
Storage Interface | 2*M.2 slots (CN2: PCIE 3.0 X4, CN3: SATA3.0); 6*SATA ports (SATA3.0*4 + SATA2.0*2) | |
Display Interface | / | |
Network | 1*RJ45 interface | |
PCIE Solt | PCIE1/3: PCIE X16 3.0 slots (from the CPU) PCIE4: PCIE X4 3.0 slots (from CPU) PCIE2: PCIE X1 2.0 full-length slot (from PCH) | |
USB | 2*USB3.0 6*USB2.0 | |
Audio | Realtek ALC897 HD audio chip | |
Product Size | 283*216mm*6L ATX motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
