▲Support Xeon E5 LGA2011-3 series processors
▲Support 4 SATA interfaces
▲Support 2133MHZ/2400MHZ/2666MHZ, maximum capacity
128G memory
▲Support 5.1 channel ALC662 chip
▲Support 1 com
▲ 4 USB3.0, 6 USB2.0
▲ Support 3 PCIE interfaces: 1 x X16, 2 x X1 PCIE
▲ RJ45 Gigabit network card interface
▲Support 6-phase power supply
▲Support Win7 Win10 32/64-bit operating systems

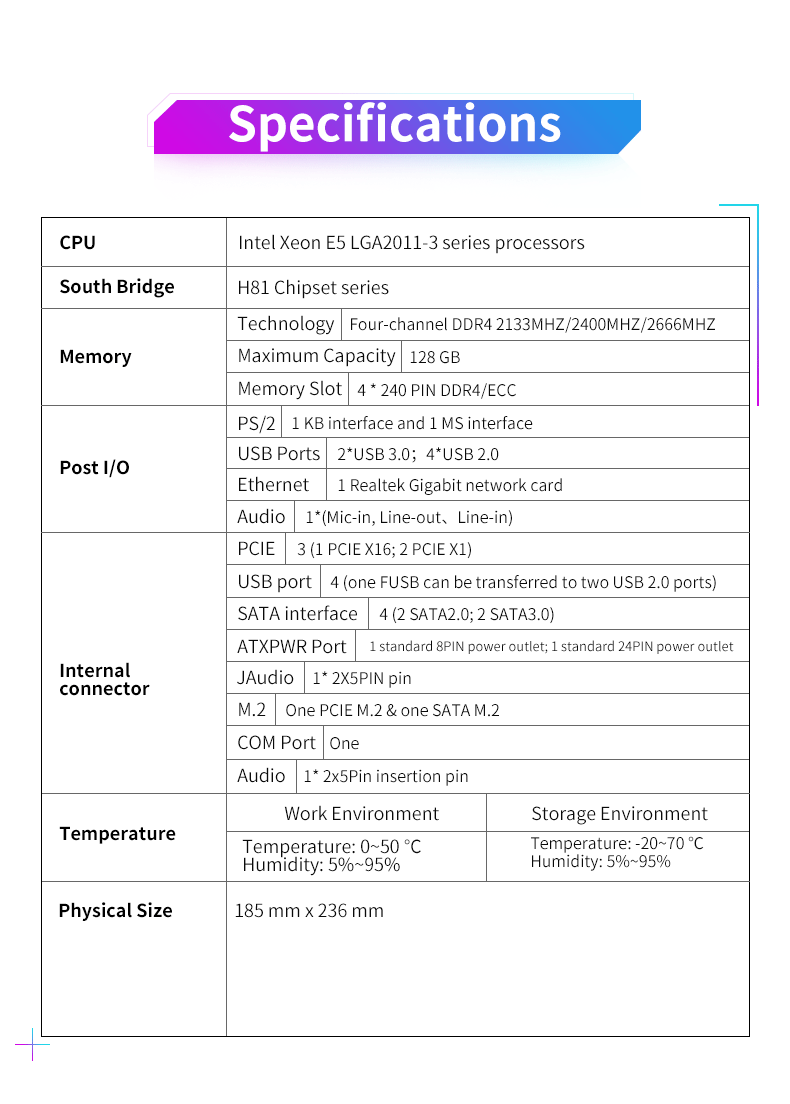

| Product Profile | ||
Product Name | X99 V205 Computer Motherboard | |
| CPU | Intel Xeon E5 LGA2011-3 processor | |
Chipset | H81 | |
Internal Memory | Four-channel DDR4 2133MHZ/2400MHZ/2666MHZ 4 * 240 PIN DDR4/ECC 128GB | |
Storage Interface | 1*PCIe M.2 1个SATA M.2 | |
Display Interface | / | |
Network | 1 Realtek Gigabit network card | |
PCIE Solt | 3*（1 PCIe x16、2 PCIe x1） | |
USB | 2*USB3.0；4*USB2.0 | |
Audio | 1*(Mic-in, Line-out、Line-in) | |
Product Size | 185*236mm ATX motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
