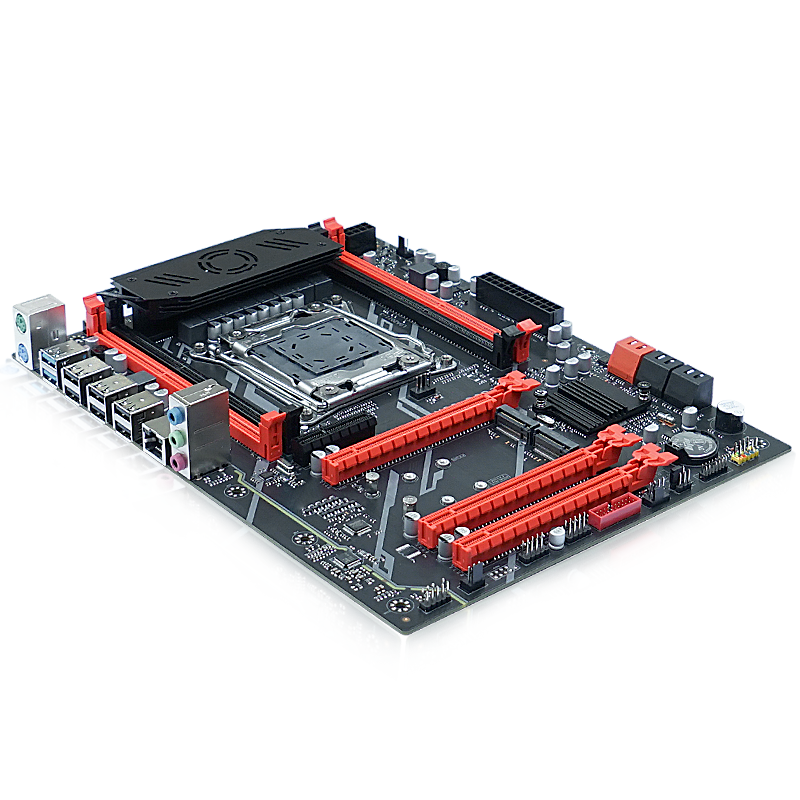

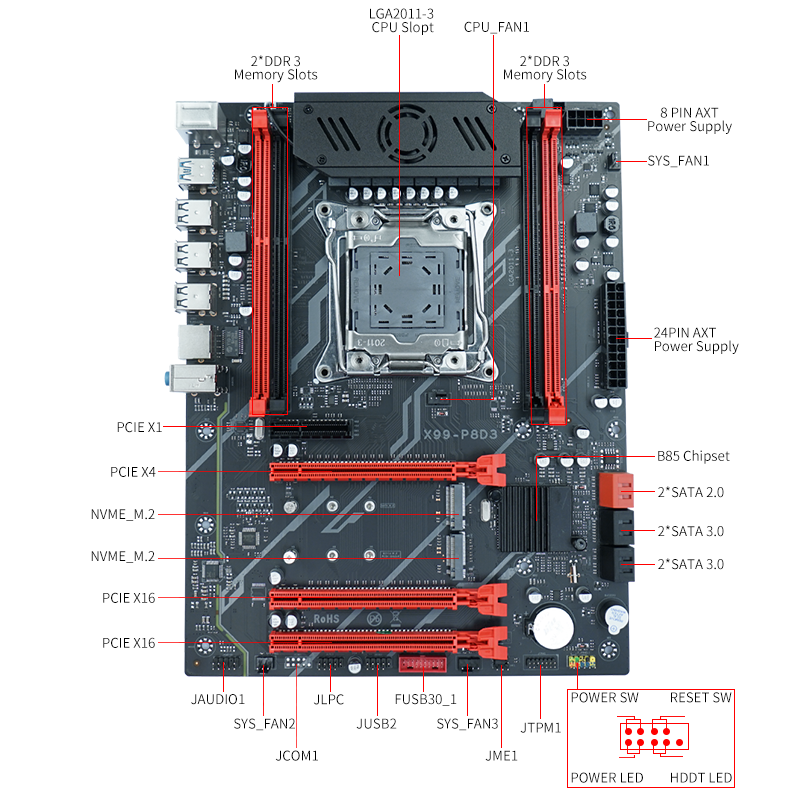

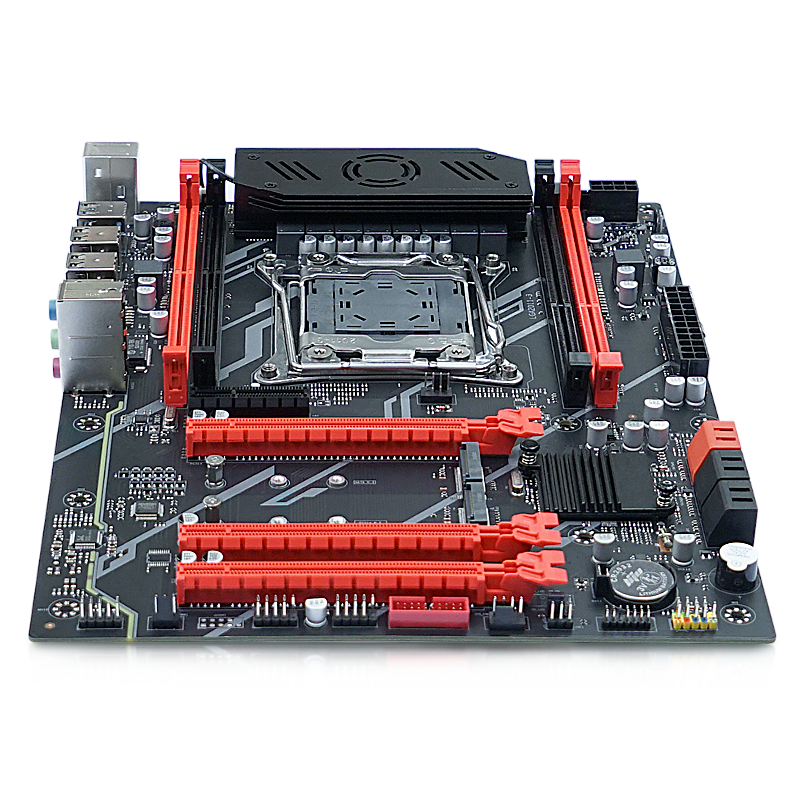

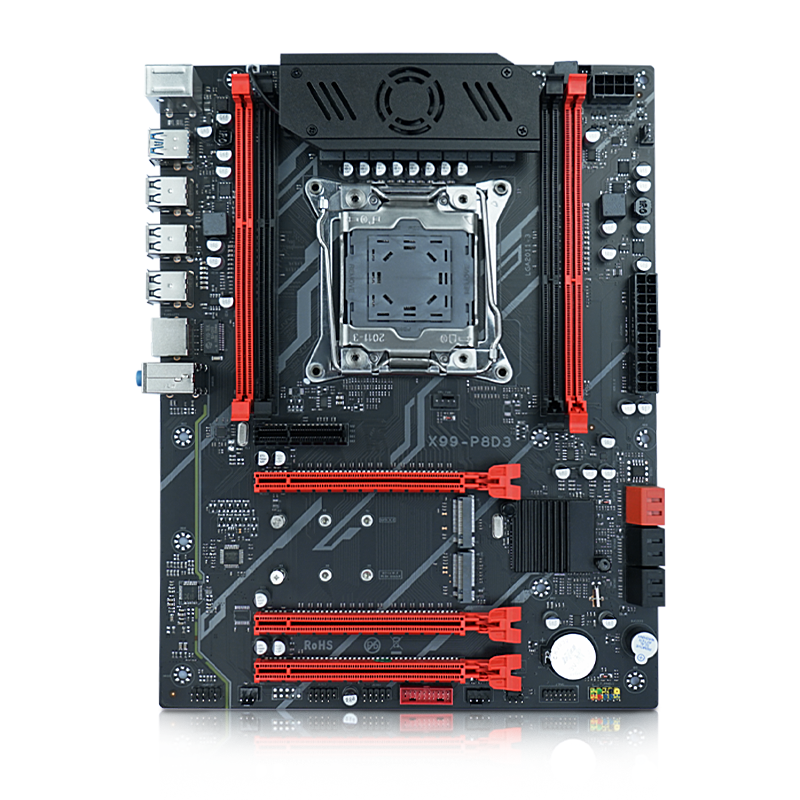

- Support Intel Xeon E5 LGA2011-3 pin processor
- Support quad-channel DDR3 memory
- 2 M.2 (NVME protocol*1 + SATA protocol*1)
- Support 6* SATA3.0 interface

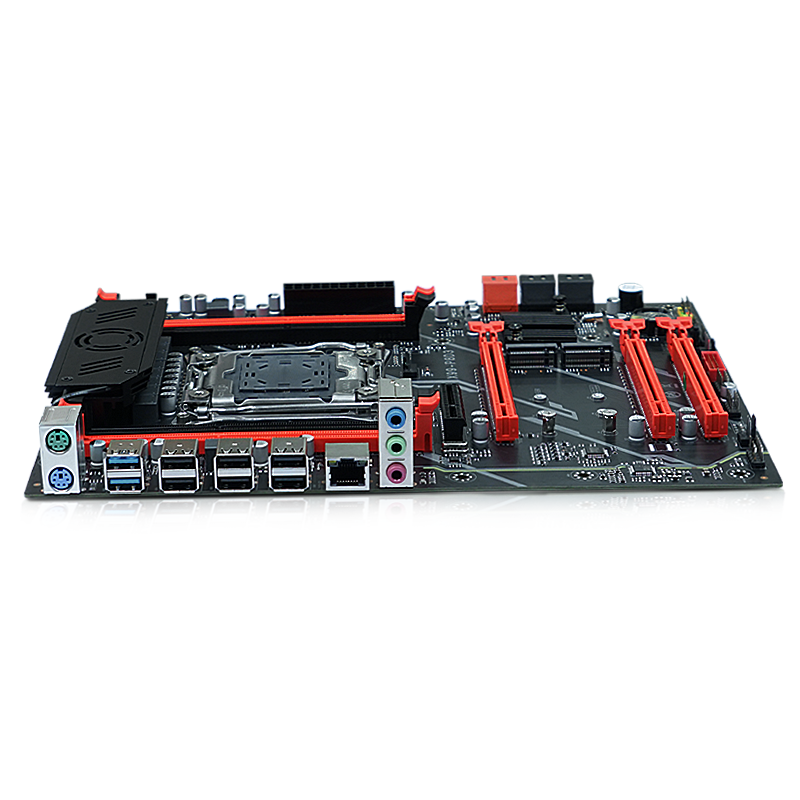

- Rear IO provides 2 USB3.0, 6 USB2.0 interfaces
- Built-in pins can expand 2 USB3.0, 2 USB2.0
interfaces
- 1 x Gigabit network card, supports PXE and
network wake-up function
- 6-layer PCB baseboard, 8-phase power supply
- 3* full-length PCIE slot, 1 * PCIE X4 slot
- 1*CPU_FAN + 3*SYS_FAN + 2*CPU_MOS(FAN)
- Support Windows7 Windows10 Windows11
| Product Profile | ||
Product Name | X99 P8D3 Computer Motherboard | |
| CPU | Intel Xeon E5 LGA2011-3 processor | |
Chipset | Q87 | |
Internal Memory | 4*DDR 3 quad-channel DIMM, 1333/1600/1866 MHz ; Maximum support 128G ( 32G*4) | |
Storage Interface | 2*M.2 slots (CN2: PCIE 3.0 X4, CN3: SATA3.0); 6*SATA 3.0 interfaces | |
Display Interface | / | |
Network | 1*RJ45 + LED interface | |
PCIE Solt | PCIE1/3 : PCIE X16 3.0 Slot (from CPU) ; PCIE4: PCIE X 4 3.0 Slots (from CPU) PCIE2: PCIE X1 2.0 full-length slot (from PCH) | |
USB | 2*USB3.0 6*USB2.0 | |
Audio | RTL8111H Gigabit LAN chip | |
Product Size | 215.77*282.93mm*6L ATX motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
