-Support Intel LGA2011-3 processor
-Supports 4-channel DDR3 DIMM memory
-6 x SATA; 4 x sSATA ports
-2x M.2 slots

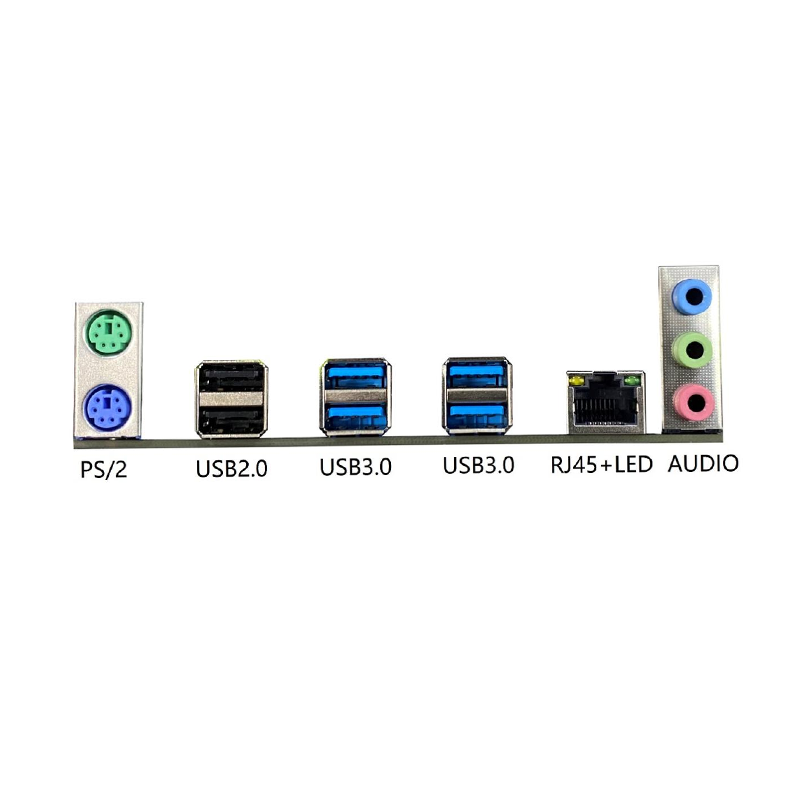

-The rear IO provides 6xUSB
-Built-in pins can expand up to 6 USB ports
-1 x Gigabit network card, support PXE and network wake up function
-3 x PCIe slots
-Supports 24Pin+8Pin +8Pin ATX power input
-Windows 7 Windows 10 ubuntu

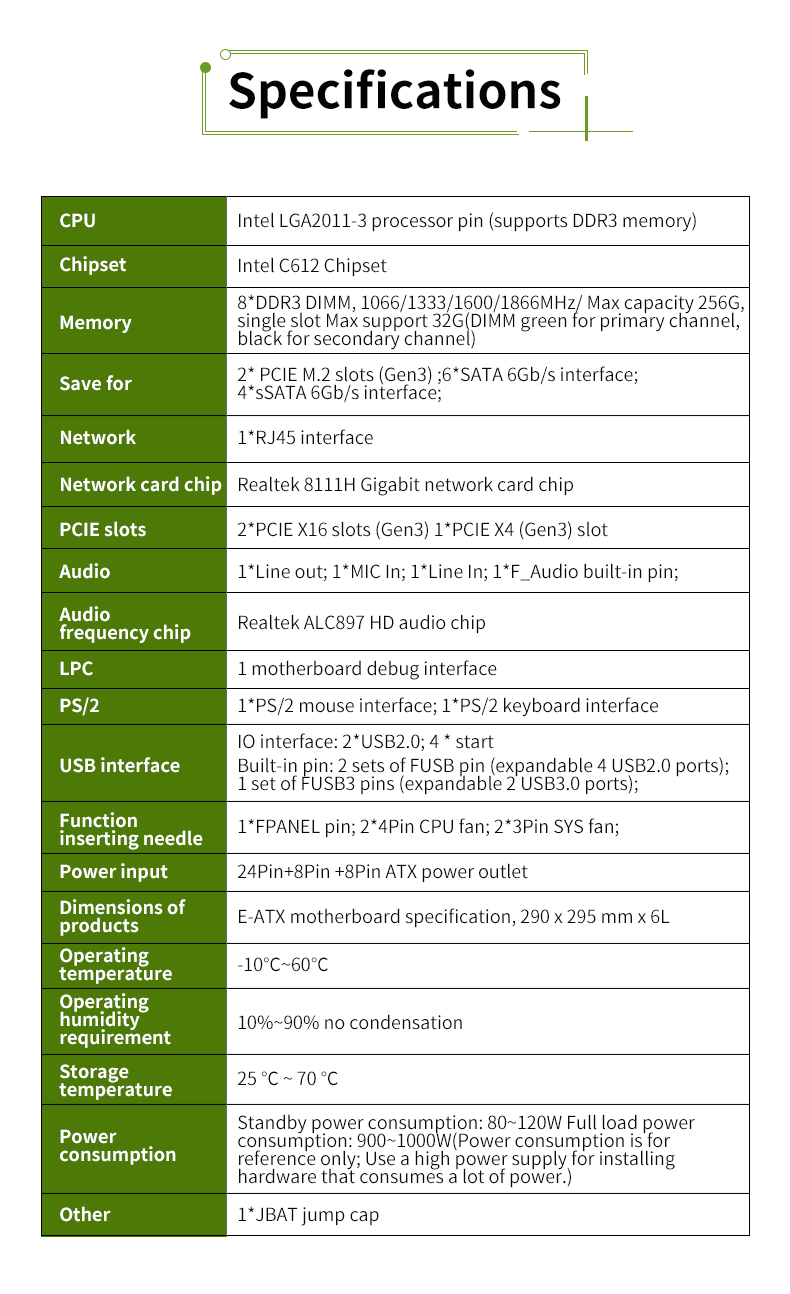

| Product Profile | ||

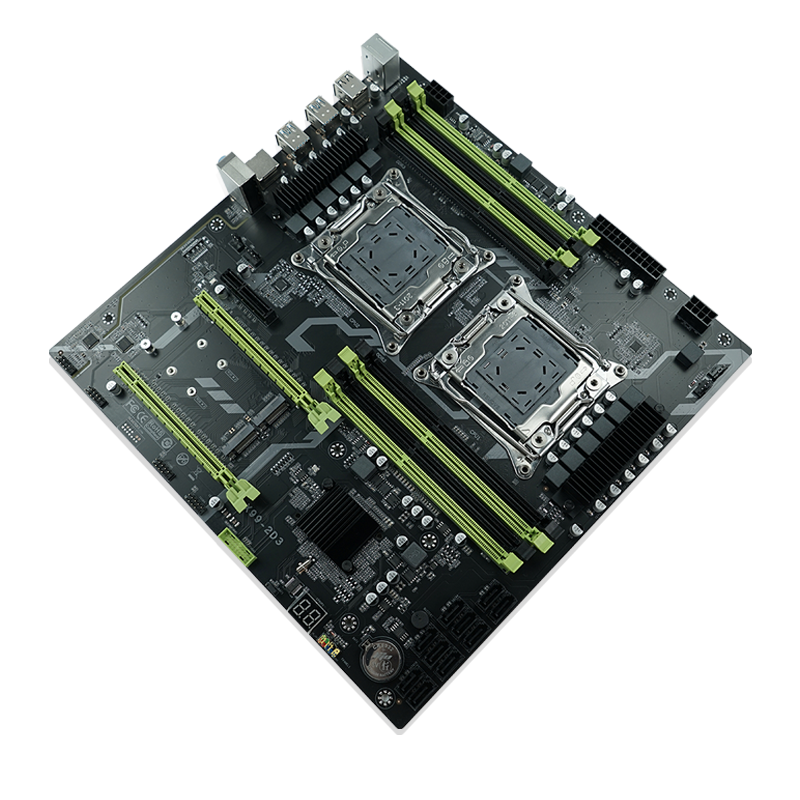

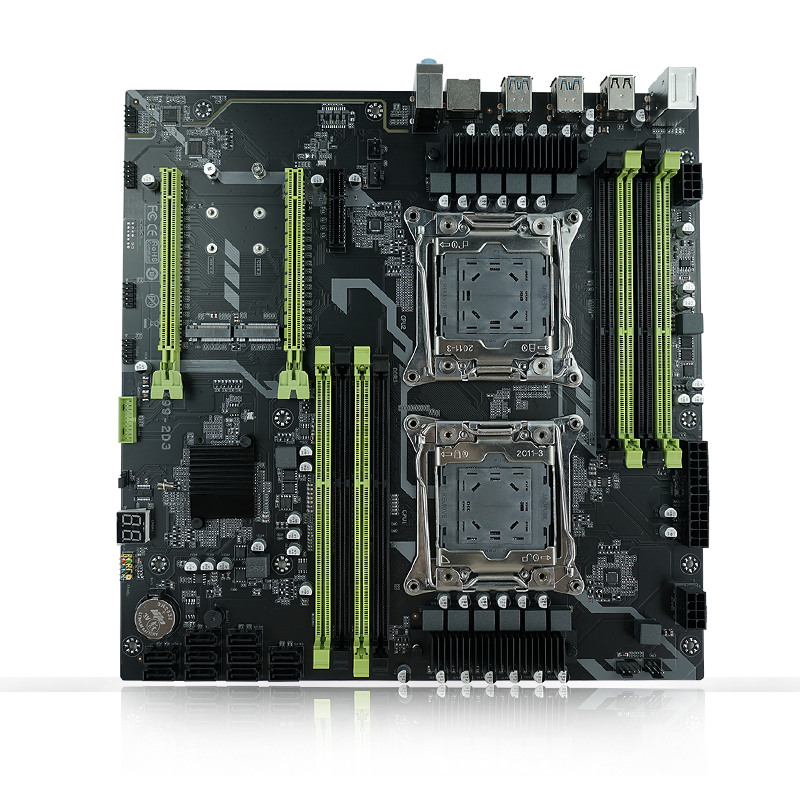

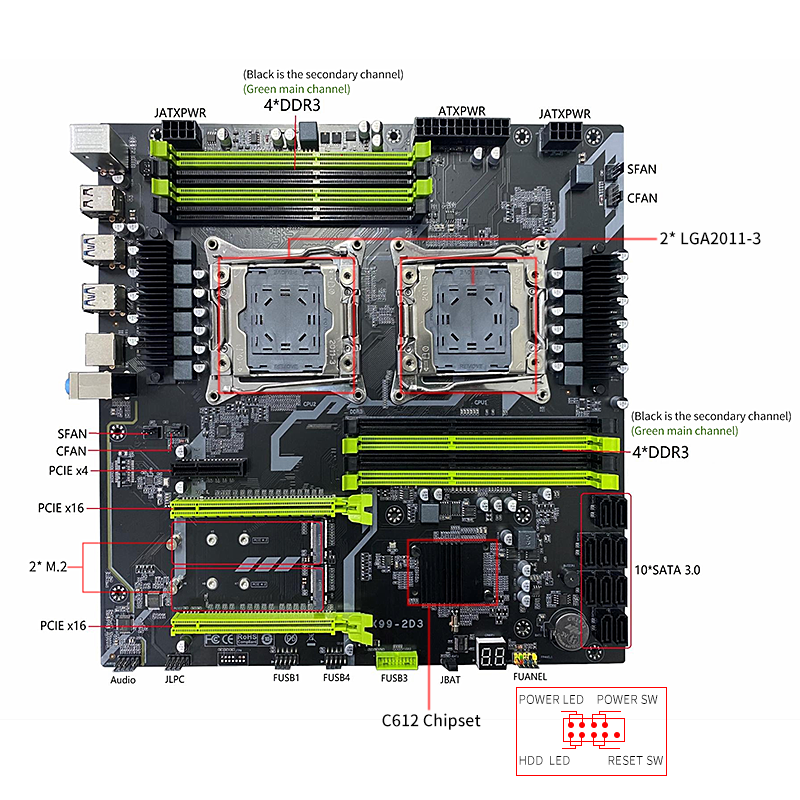

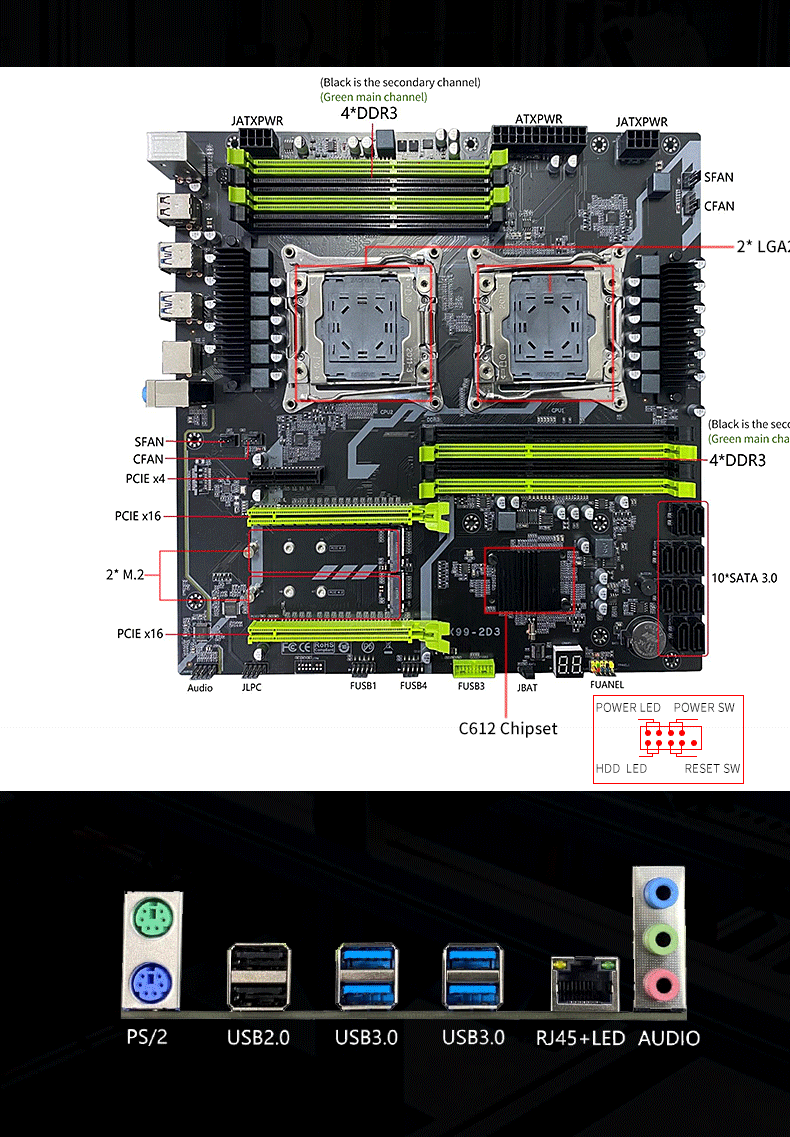

Product Name | X99 2D3 Computer Motherboard | |
| CPU | Support Intel LGA2011-3 series processors | |
Chipset | C612 | |
Internal Memory | 8*DDR3 DIMM, 1066/1333/1600/1866MHz, maximum capacity 256G single slot maximum support 32G | |
Storage Interface | 2 * PCIE M.2 slots (Gen3); 6 * SATA 6Gb/s ports; 4 * SATA 6Gb/s ports; | |
Display Interface | / | |
Network | 1RJ45 interface | |
PCIE Solt | 2 *PCIE X16 slots (Gen3); 1 *PCIE X4 (Gen3) slots | |
USB | 2*USB2.0; 4*USB3.0 | |
Audio | 1*Line out; 1*MIC In; 1*Line in; 1*F_Audio built-in pin; | |
Product Size | 290*295mm*6L E-ATX motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
