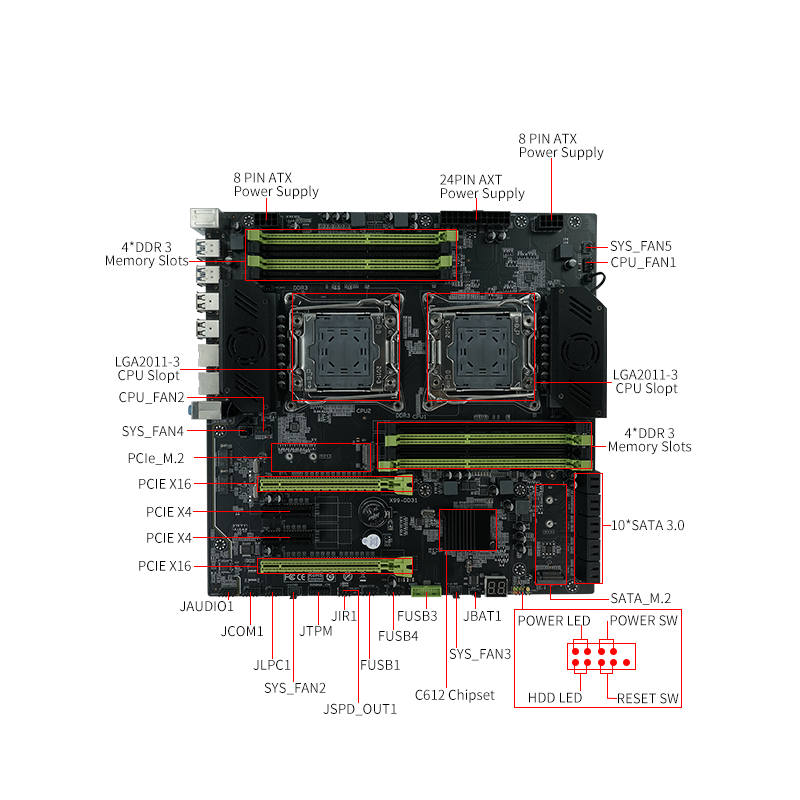

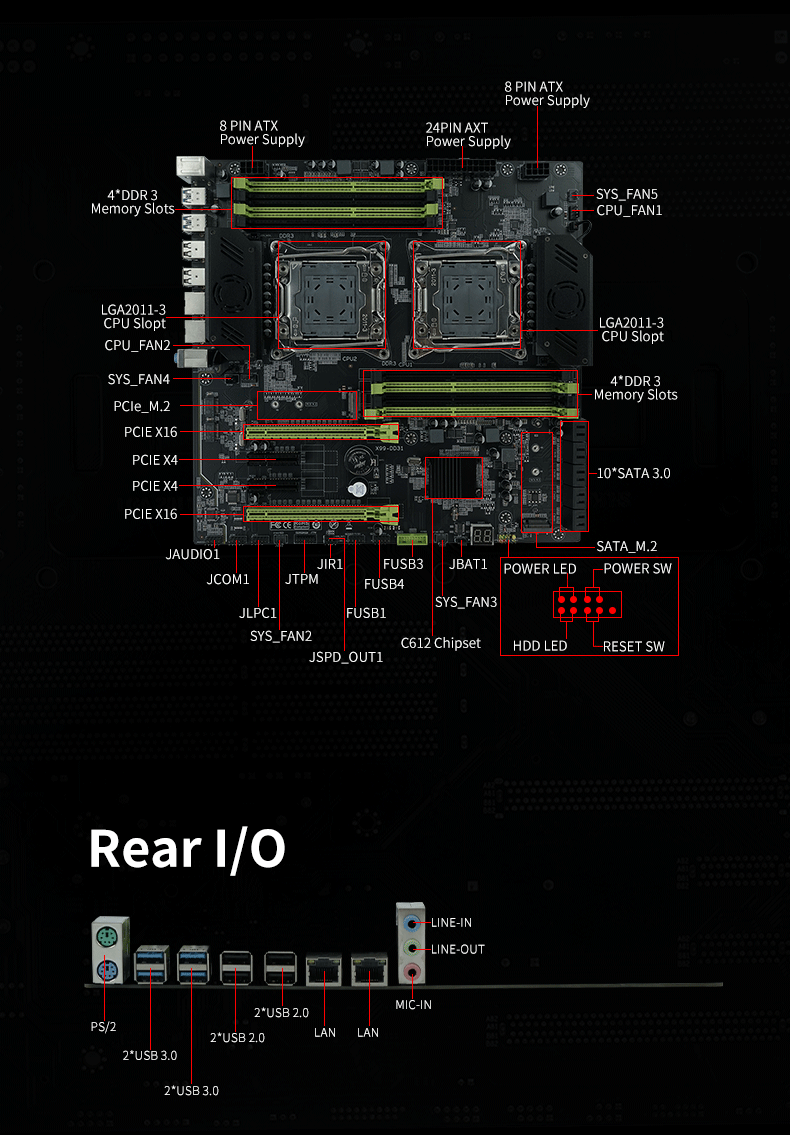

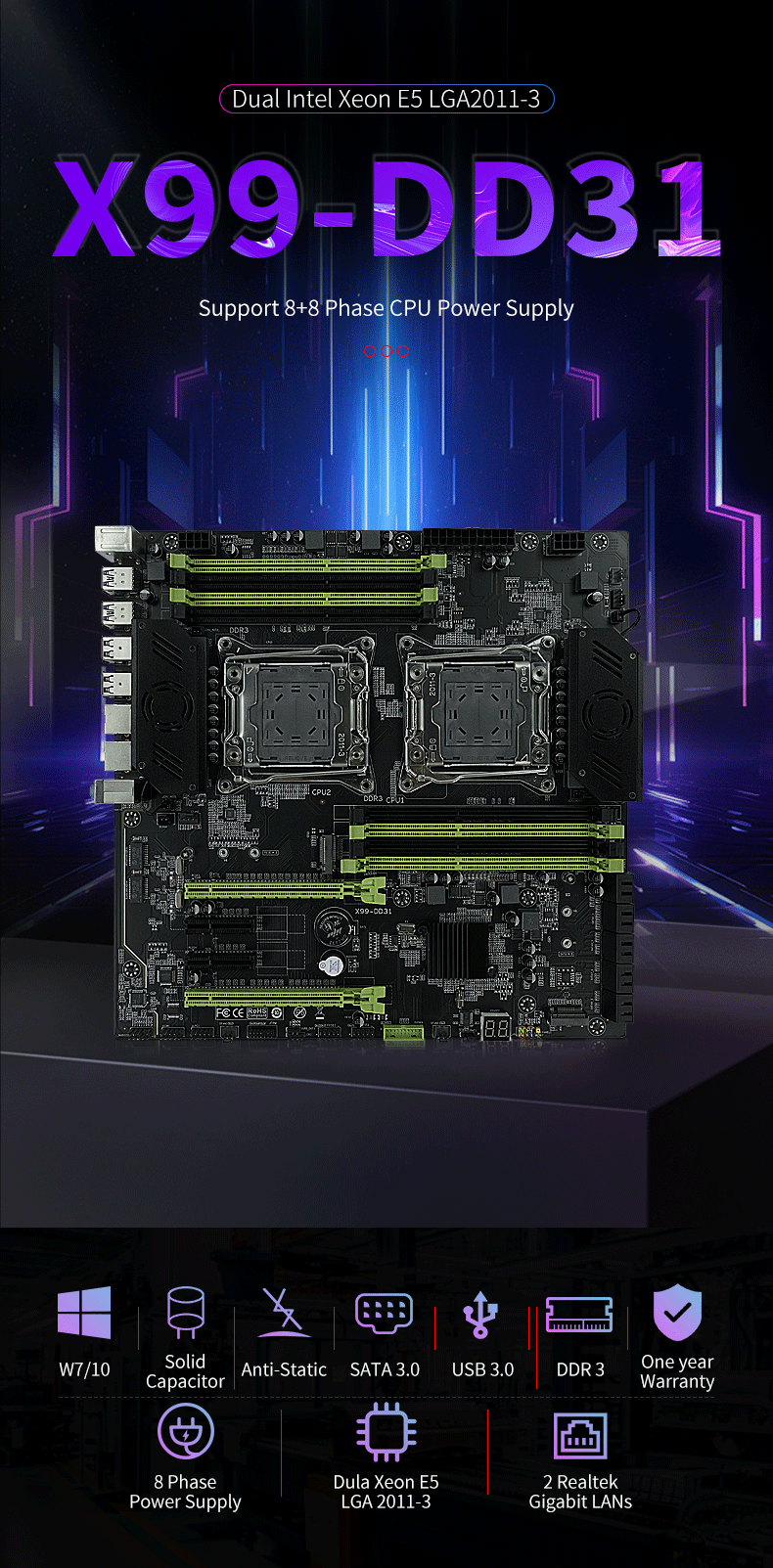

▲Support Dula Xeon E5 LGA2011-3 series processors
▲Support 10 SATA interfaces (6Gb/s)
▲Support 2 M.2 ports (SATA & NVME )
▲Support high-speed DDR3 dual-channel memory slot:
▲support DDR3 1066/1333/1600MHz, maximum capacity 256GB
▲Support 6 USB3.0, 8 USB2.0
▲Support 4 PCI-E expansion interfaces ▲Support 2 Realtek Gigabit LANs
▲Support 8+8 phase CPU power supply
▲Support WIN7/Win10 32/64 bit operating system

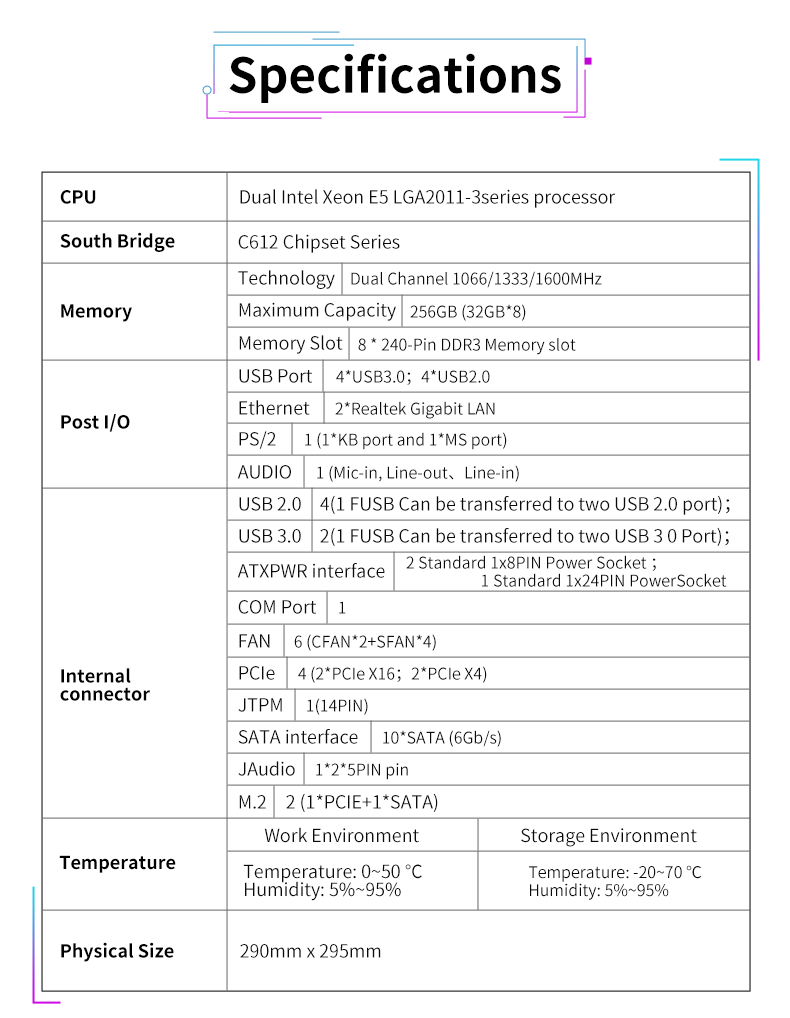

| Product Profile | ||

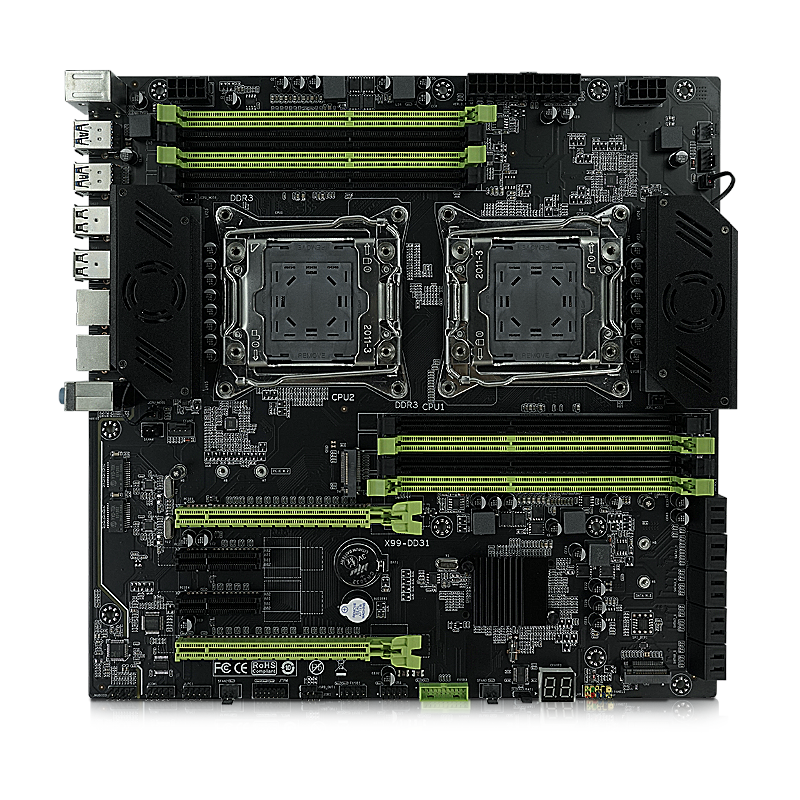

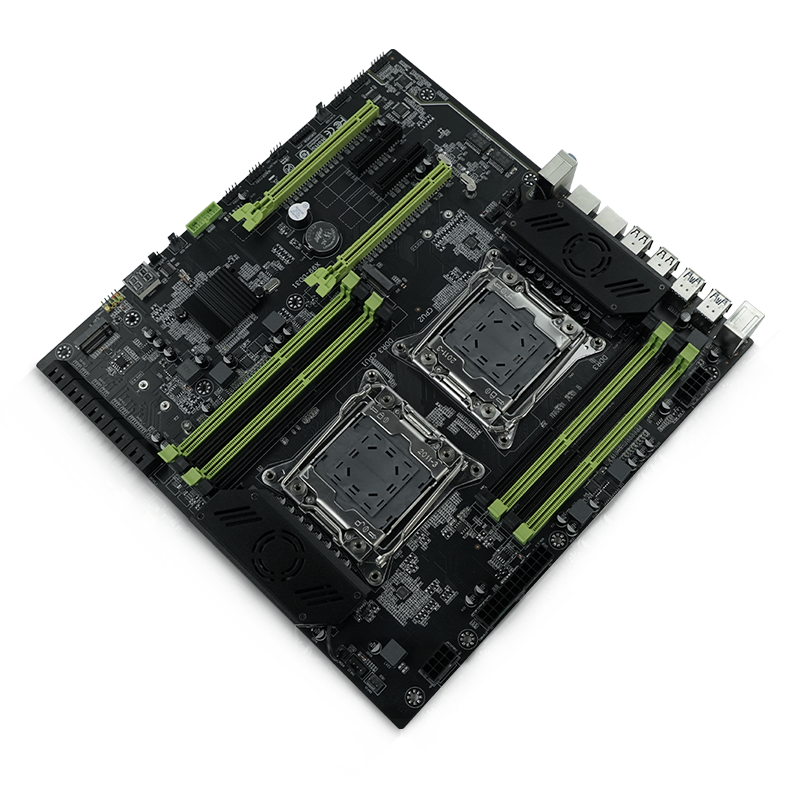

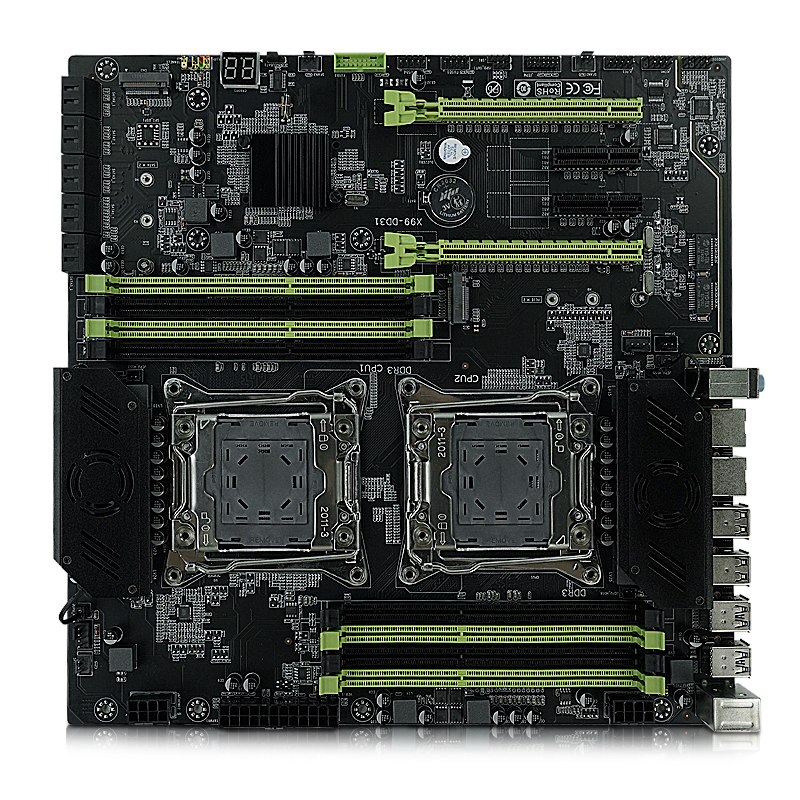

Product Name | X99 DD31 Computer Motherboard | |
| CPU | Support Intel LGA2011-3 series processors | |
Chipset | C612 | |
Internal Memory | Dual Channel 1066/1333/1600MHz 8 * 240-Pin DDR3 Memory slot 256GB（32GB*8） | |
Storage Interface | 2（1*PCIE+1*SATA）10*SATA6Gb/s | |
Display Interface | / | |
Network | 1RJ45 interface | |
PCIE Solt | 4（2*PCIe X16；2*PCIe X4） | |

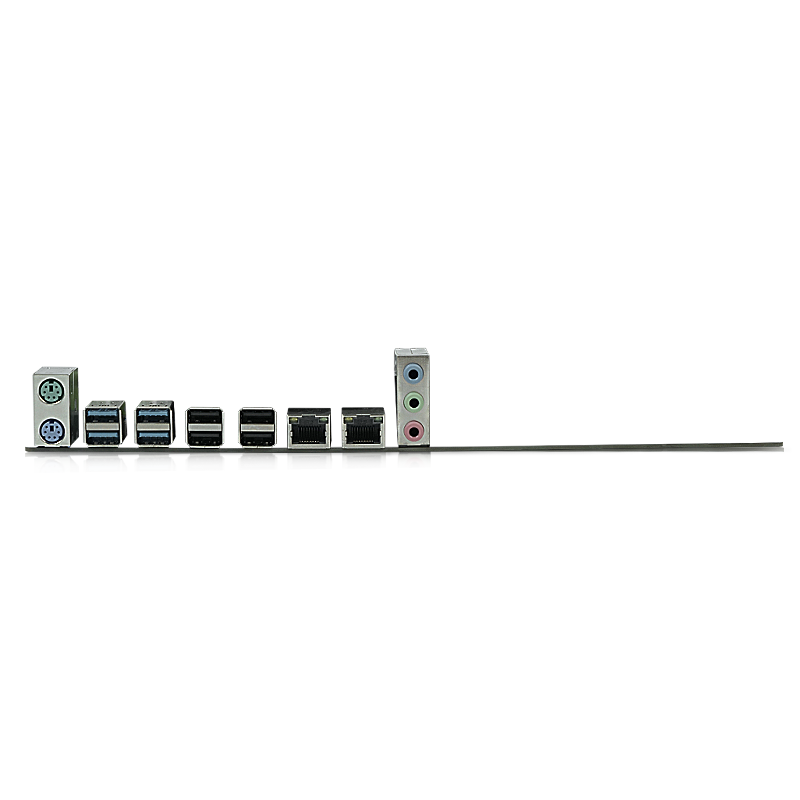

USB | 4*USB3.0；4*USB2.0 | |
Audio | 1 (Mic-in, Line-out、Line-in) | |
Product Size | 290*295mm ATX motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
