- A processor that supports dual Intel Xeon E5
LGA2011-V3 pins
- Support for a single CPU dual-channel DDR 4
memory
- 2 M.2 (NVME protocol)
- Supports the 10 * SATA interface

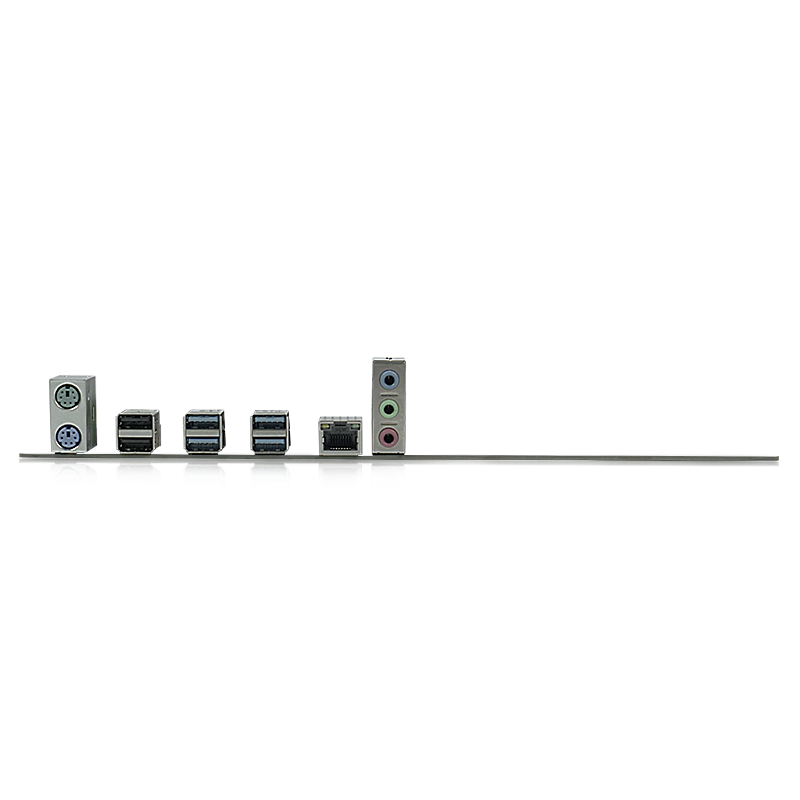

- The rear IO provides 4 USB3.0 and 2 USB2.0
interfaces
- Built-in pins extends 2 USB3.0 and 4 USB2.0 ports
- 1 x gigabit network card, support for PXE and
network wake-up function
- 6 layer PCB floor, 6 phase power supply
- 2 * PCIE X16 slot, 1 * PCIE X4 slot
- 2 * CFAN + 2 * SFAN, 1 * digital display DEBUG
- Support Windows7 Windows10 Windows11
| Product Profile | ||

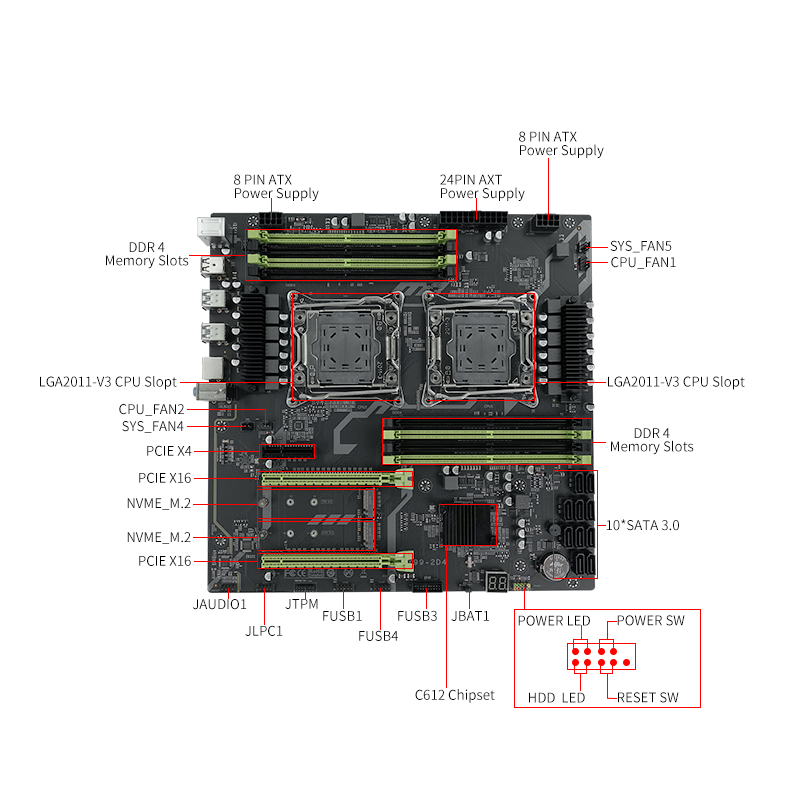

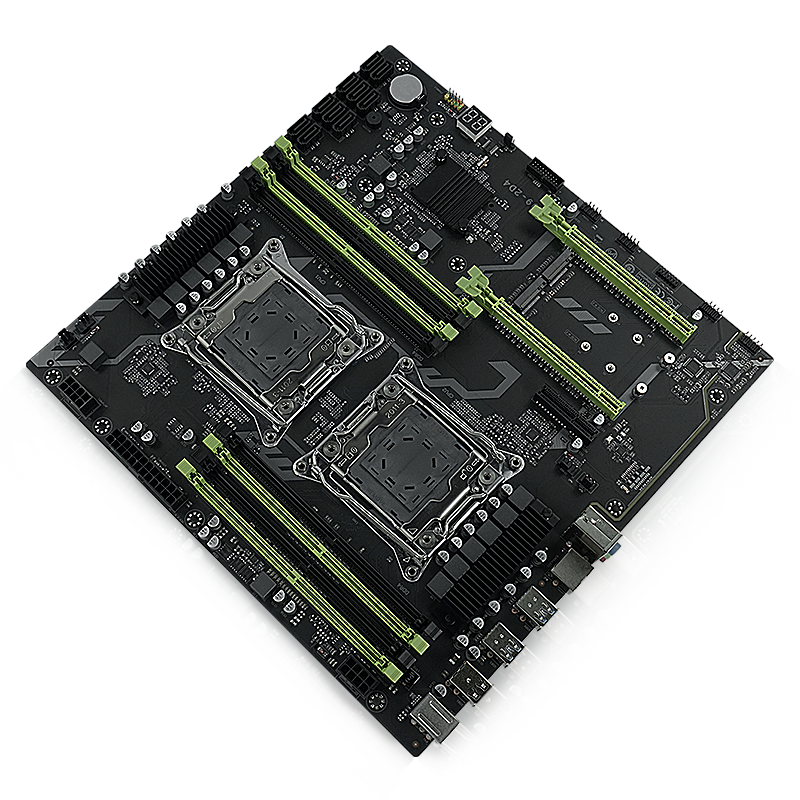

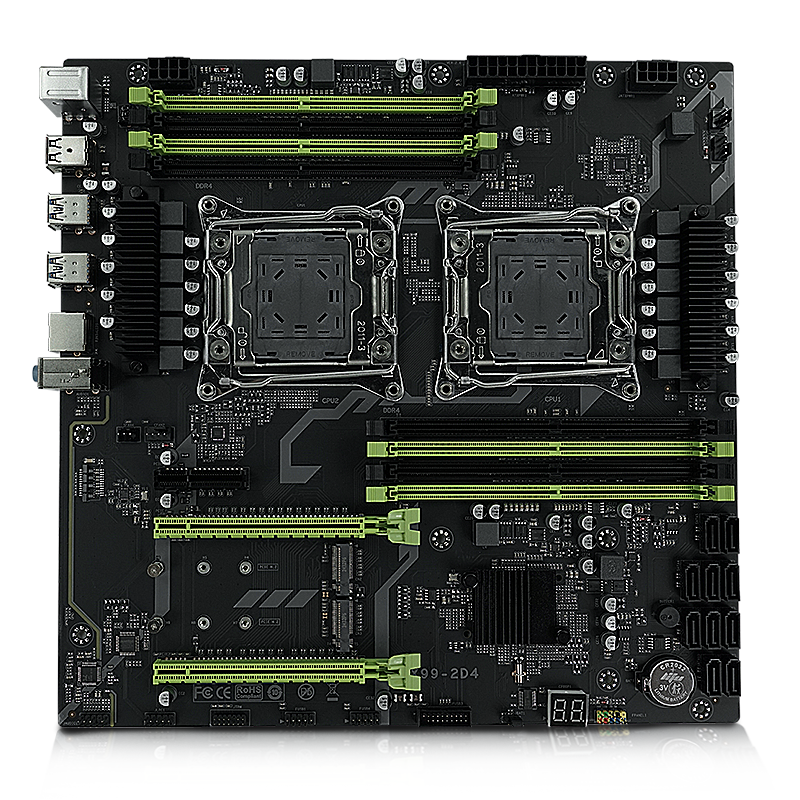

Product Name | X99 2D4 Computer Motherboard | |
| CPU | Dual-way Intel Xeon E5 LGA2011-V3 pin CPU (both CPU models) | |
Chipset | C612 | |
Internal Memory | 8 * DDR4 DIMM, 2133 / 2400 MHz (MAX), maximum support of 256G (32G * 8) green groove as the main channel | |
Storage Interface | 2*M.2 slot (NVME agreement)；10*SATA port (SATA3.0) | |
Display Interface | / | |
Network | 1RJ45 interface | |
PCIE Solt | 2*PCIE X16 3.0 solt（from CPU1） 1*PCIE X4 3.0 solt （from CPU2） | |
USB | 4 * USB3.0,2 * USB2.0 | |
Audio | 1*Line out，1*MIC In，1*Line in；1*F_Audio Built-in needle | |
Product Size | 290*295mm*6L ATX motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
