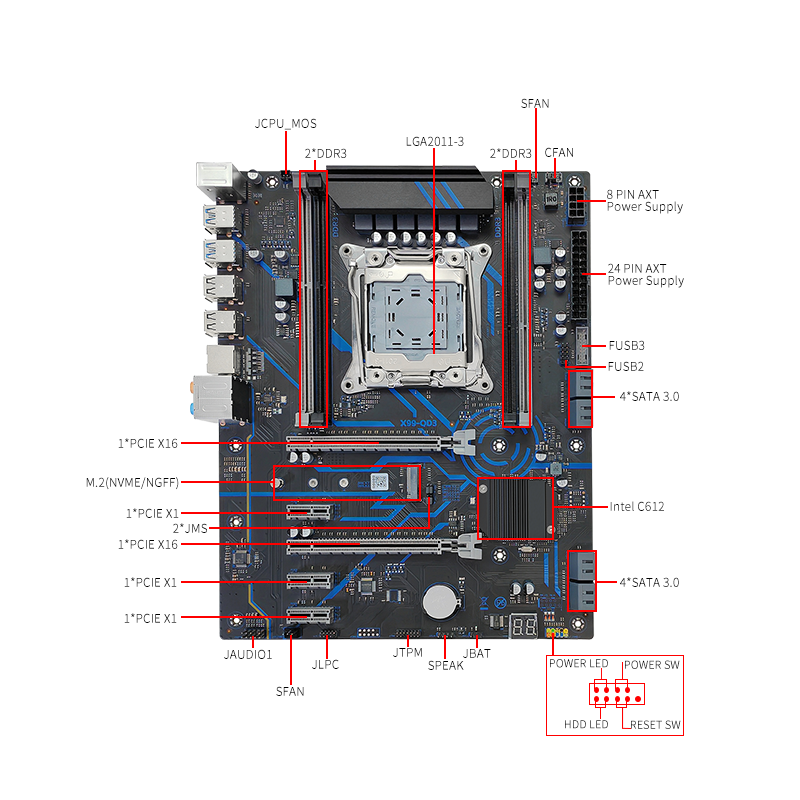

-Supports Intel processors in LGA 2011-3 series
-Supports dual-channel DDR3 DIMM memory
-8 x SATA ports
-1 x M.2 2280/2260/2242 slots (support NVME/SATA mode)

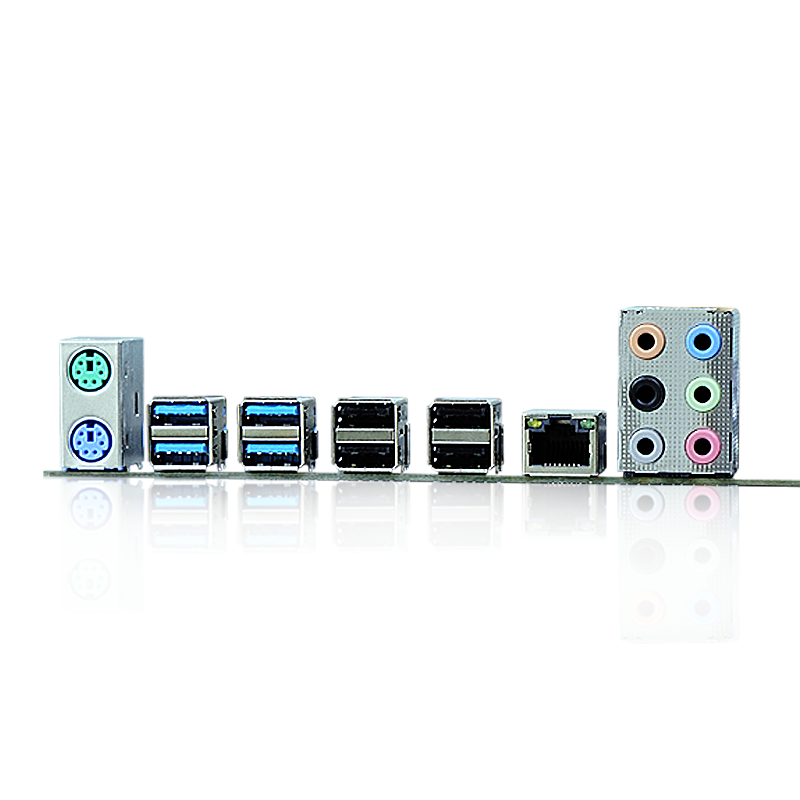

-The rear port provides 4xUSB2.0/4xUSB3.0
-Built-in pins can be expanded to 2 USB2.0/2 USB3.0
-1 x PS2 keyboard and mouse
-1 x Gigabit network card, support PXE and network wake up function
-2 x PCIE X16 slots, 3 x PCIE X1 slots
-Supports 24Pin+8Pin ATX power input
-Windows 7 Windows 10 Windows11

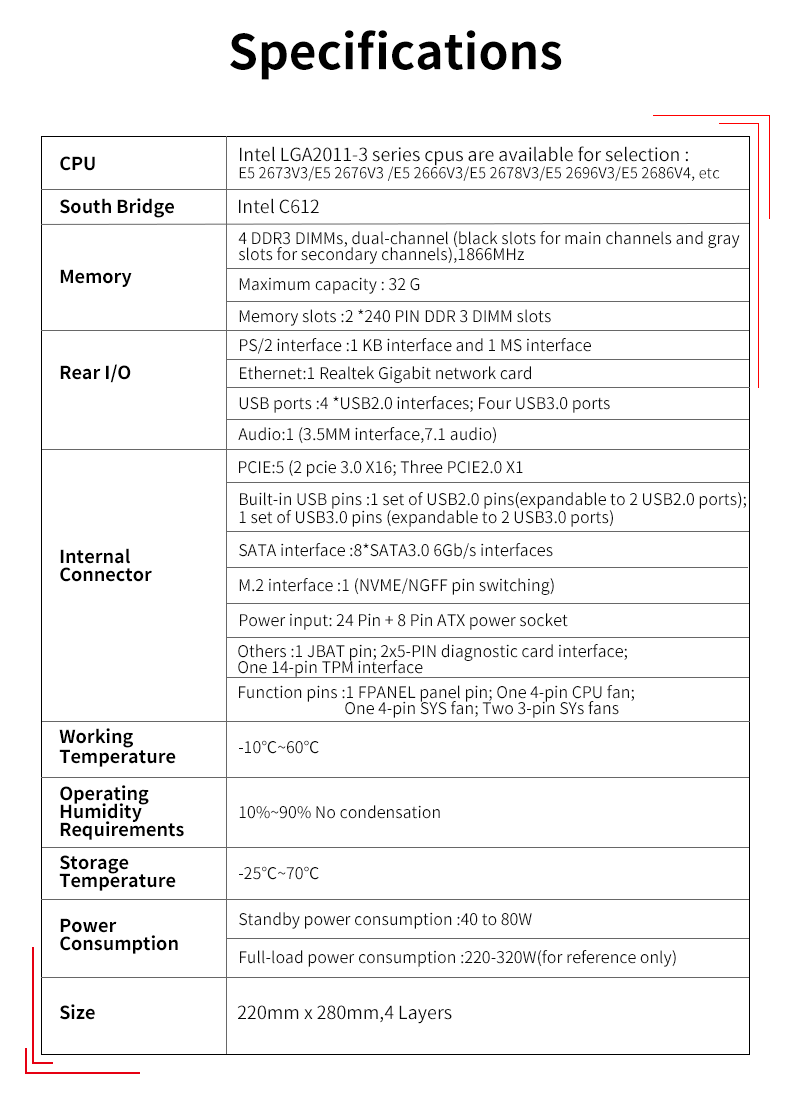

| Product Profile | ||

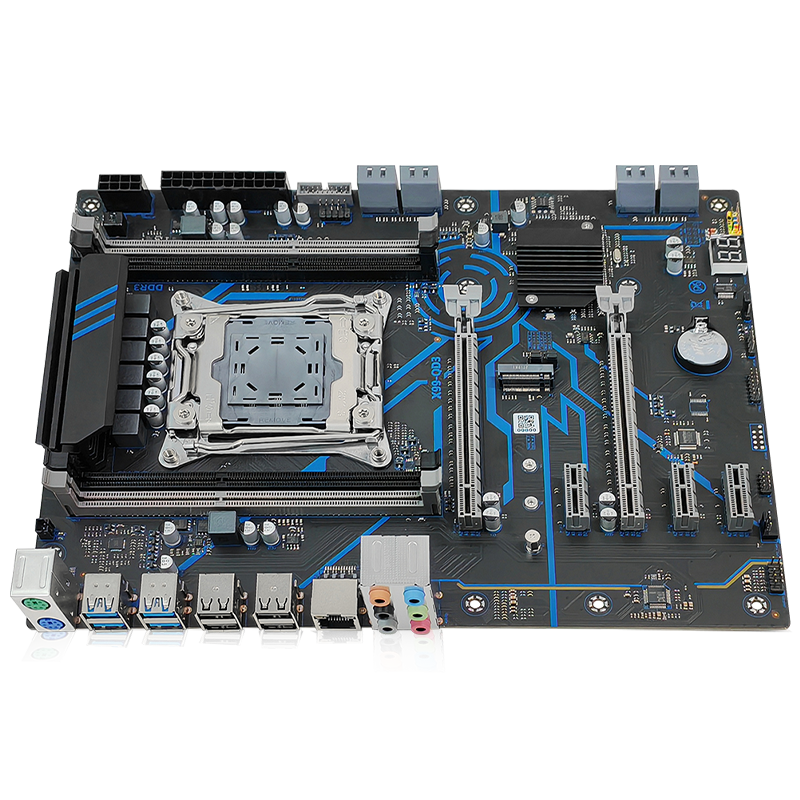

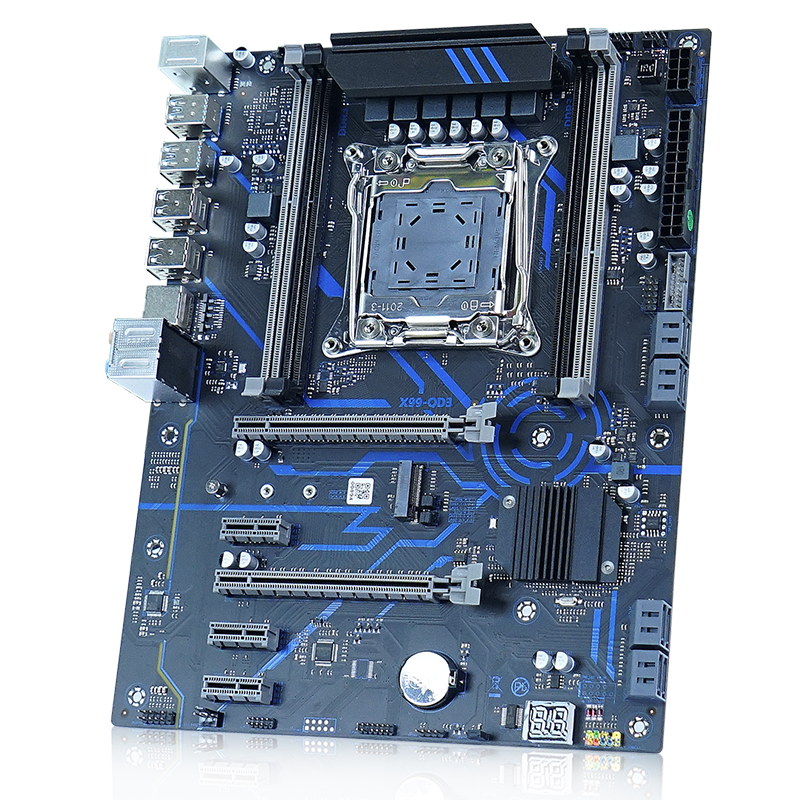

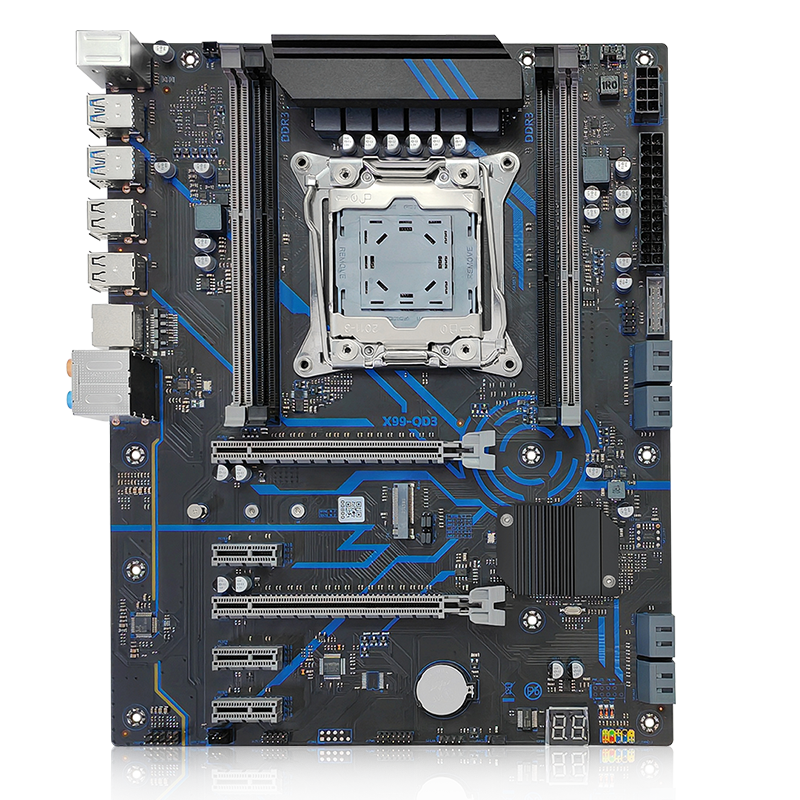

Product Name | X99 QD3 Computer Motherboard | |
| CPU | Supports Intel processors in LGA 2011-3 series | |
Chipset | C612 | |
Internal Memory | 4*DDR3 DIMM 1866MHz/128G maximum support 128G | |
Storage Interface | 1* M.2 slot (PCI-E 3.0x4 high-speed NVME and SATA 3.0, need to switch the hat) 8*SATA3.0 6Gb/s interface | |
Display Interface | / | |
Network | 1RJ45 interface | |
PCIE Solt | 2*PCIE 3.0 X16 slots; 3*PCIE2.0 X1 slots | |
USB | 4*USB2.0/4*USB3.0 | |
Audio | Realtek high-definition audio chip | |
Product Size | 290*295mm*6L ATX motherboard | |
Features：
1.Well-cooling system with Good thermal material aluminum base for motherboard
2.All-solid electric capacitor for motherboard
3.PCB Copper plating technology for Motherboard
4.Independent power supply designed for Motherboard CPU
5.Zero burning protection circuit for Motherboard
6.Dual safety device stabilize voltage and current for load data uniformly
